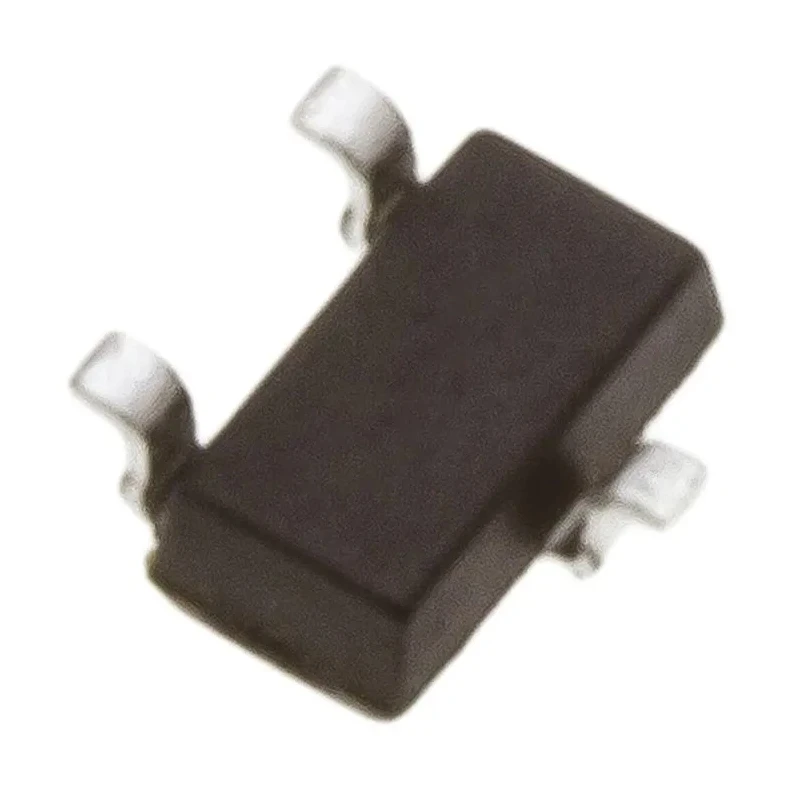

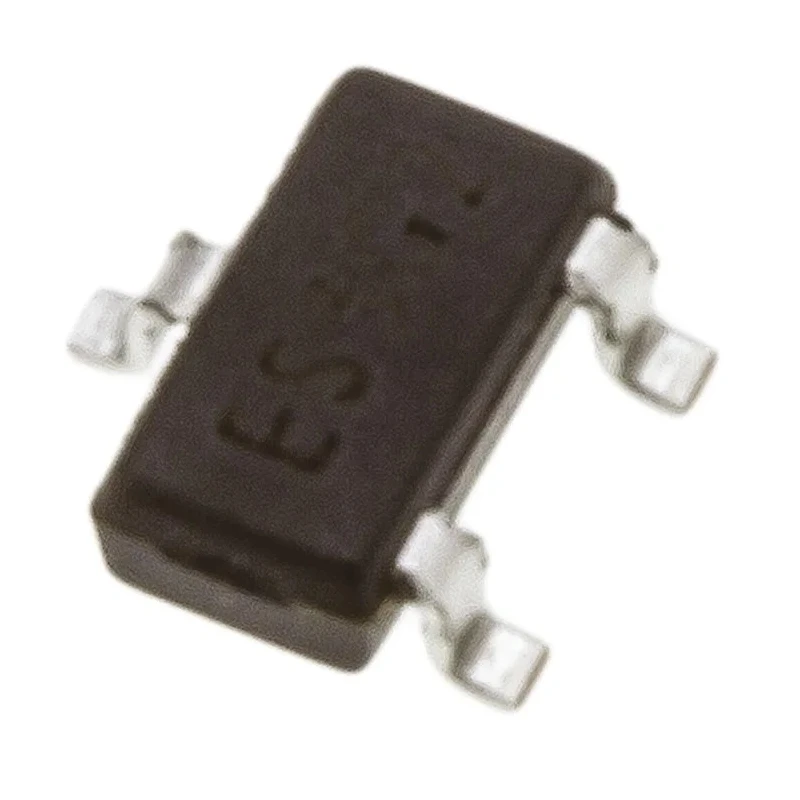

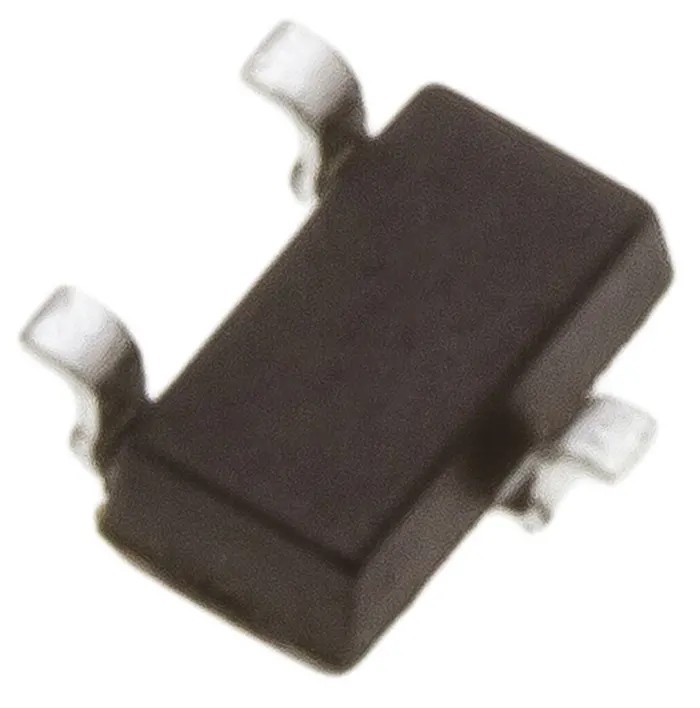

Taiwan Semiconductor Voltage Regulator 0.3W 12V SOT-23 3-Pin Linear LDO TS9011SCX RFG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 1.2mm |
| Length | 3.1mm |
| Model | TS9011SCX RFG |
| Width | 1.7mm |
| Mount Type | Surface |
| Power Rating | 0.3W |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Polarity | Positive |
| Maximum Input Voltage | 12V |
| Quiescent Current | 2μA |
| Pin Count | 3 |
| Automotive Standard | IEC 61249-2-21 |
Key Features
- Features low quiescent current of 2μA for efficient power usage.
- Constructed in a small SOT-23 package with dimensions 3.1mm length, 1.7mm width, and 1.2mm height.
- Designed for surface mount applications with positive polarity.
- Operates efficiently with a maximum input voltage of 12V and a maximum operating temperature of 150°C.
- Compliant with automotive standard IEC 61249-2-21 ensuring reliability under automotive conditions.
- Provides stable voltage regulation with low dropout characteristics suitable for sensitive electronics.
- Ideal for use in power management IC applications requiring consistent voltage supply.
Product Description
Taiwan Semiconductor TS9011SCX RFG Voltage Regulator is a low dropout (LDO) linear voltage regulator delivering 0.3W power with a fixed 12V output. Housed in a compact SOT-23 3-pin package, it offers excellent performance for power management in electronic devices.
The device operates with a low quiescent current of 2μA, thereby optimizing power consumption and reducing thermal dissipation. Its small footprint with precise package dimensions of 3.1mm length, 1.7mm width and 1.2mm height makes it suitable for dense surface mount applications.
Designed for positive polarity, this regulator maintains a consistent voltage supply with a maximum input voltage of 12V and can sustain operational temperatures up to 150°C. It meets the IEC 61249-2-21 automotive standard, making it reliable for automotive electronics and industrial environments.
The TS9011SCX RFG provides low dropout voltage regulation, fast transient response, and low noise with high power supply rejection ratio (PSRR), ensuring the stability of sensitive circuits such as microcontrollers, sensors, and communication modules.
Typical applications include embedded systems, power management circuits, consumer electronics, and industrial control systems. Its surface mount design facilitates automated assembly and manufacturing efficiency.
Low quiescent current enhances battery life and energy efficiency. Compact SOT-23 package enables use in space-constrained PCBs. Compliance with automotive standards ensures robustness in harsh conditions. Suitable for a wide temperature range up to 150°C.
Fixed 12V output voltage for reliable system operation.
This Taiwan Semiconductor voltage regulator is a vital component for engineers and designers targeting efficient power management solutions in industrial, automotive, and consumer electronic sectors. Explore more power management ICs and Voltage Regulators at EnvMart to find complementary solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for the TS9011SCX RFG voltage regulator is 12V.
This model operates with a low quiescent current of 2μA, optimizing power consumption.
The TS9011SCX RFG is housed in a SOT-23 package with dimensions of 3.1mm length, 1.7mm width, and 1.2mm height.
The maximum operating temperature for this voltage regulator is 150°C.
The power rating of this voltage regulator is 0.3W.
It is designed for power management applications, including embedded systems, consumer electronics, and industrial control systems.
Yes, it is compliant with the automotive standard IEC 61249-2-21, ensuring reliability under automotive conditions.
The TS9011SCX RFG is designed for positive polarity.
This voltage regulator has a total of 3 pins.
The low dropout characteristics are significant for providing stable voltage regulation, especially for sensitive electronics.
This model is designed for surface mounting applications.
The low quiescent current enhances battery life and energy efficiency in applications where power management is critical.
