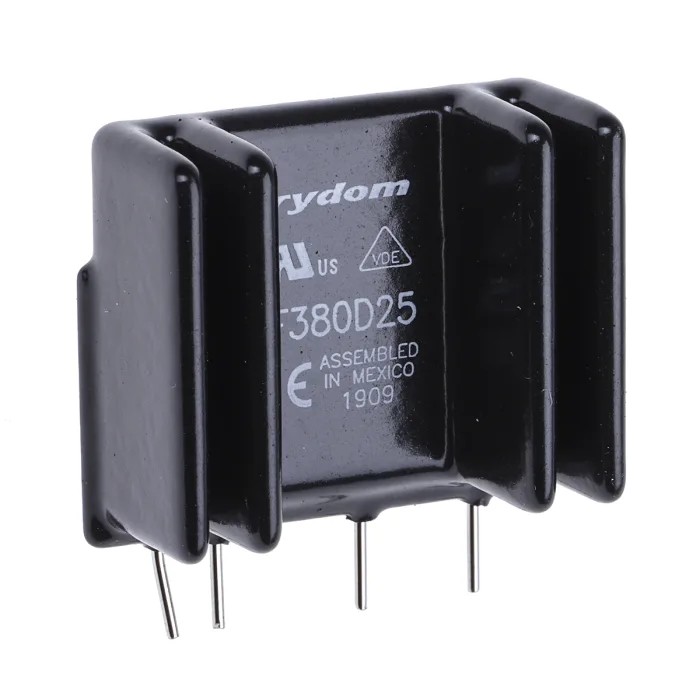

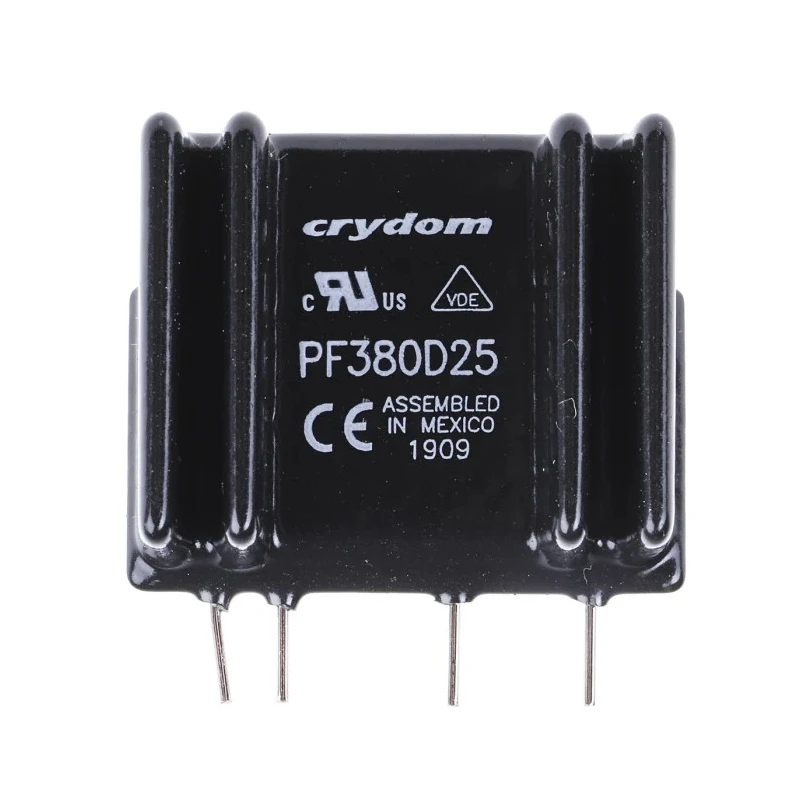

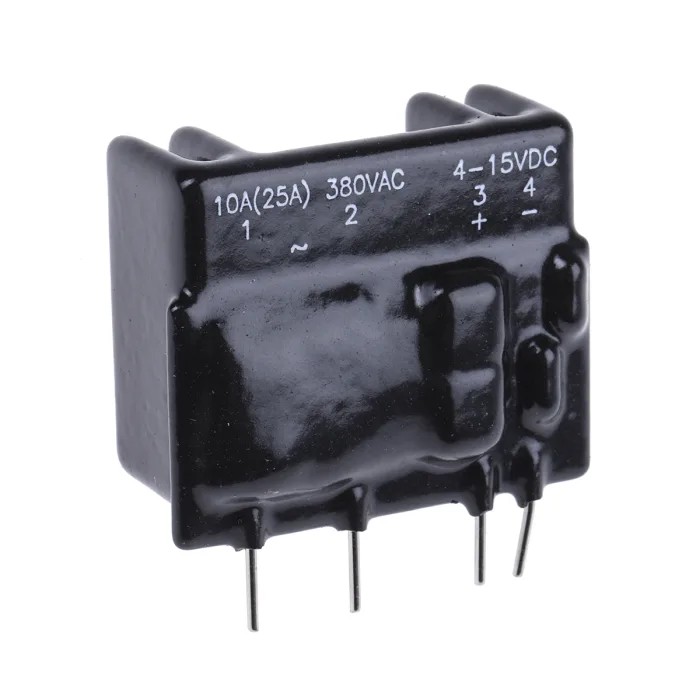

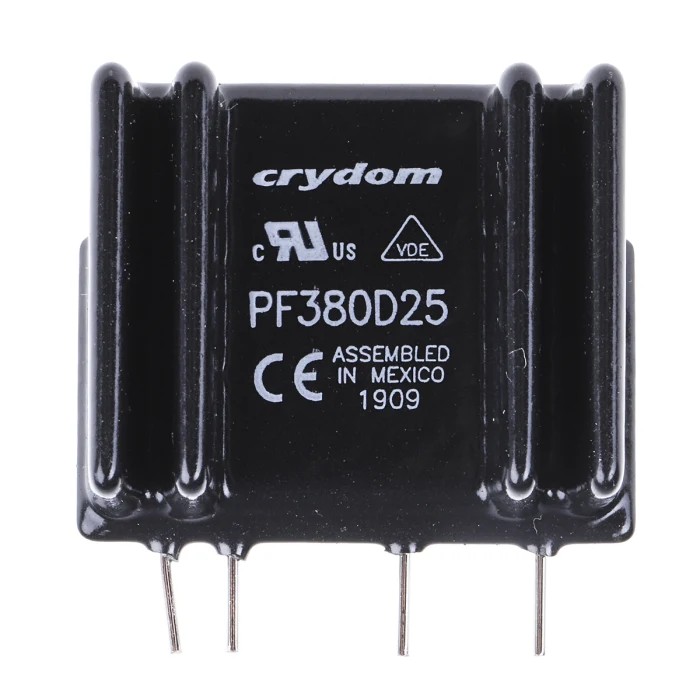

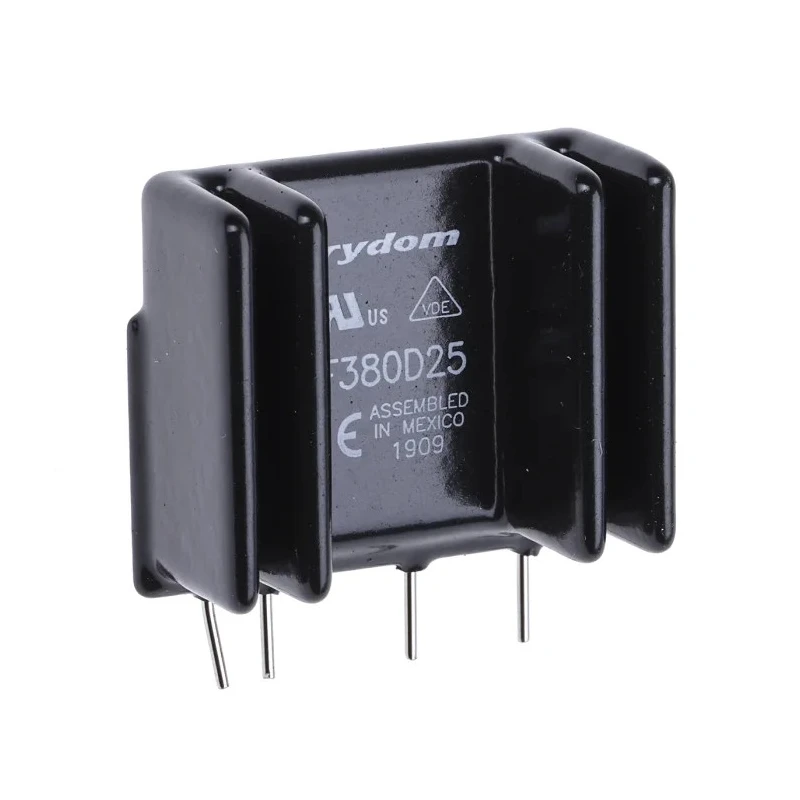

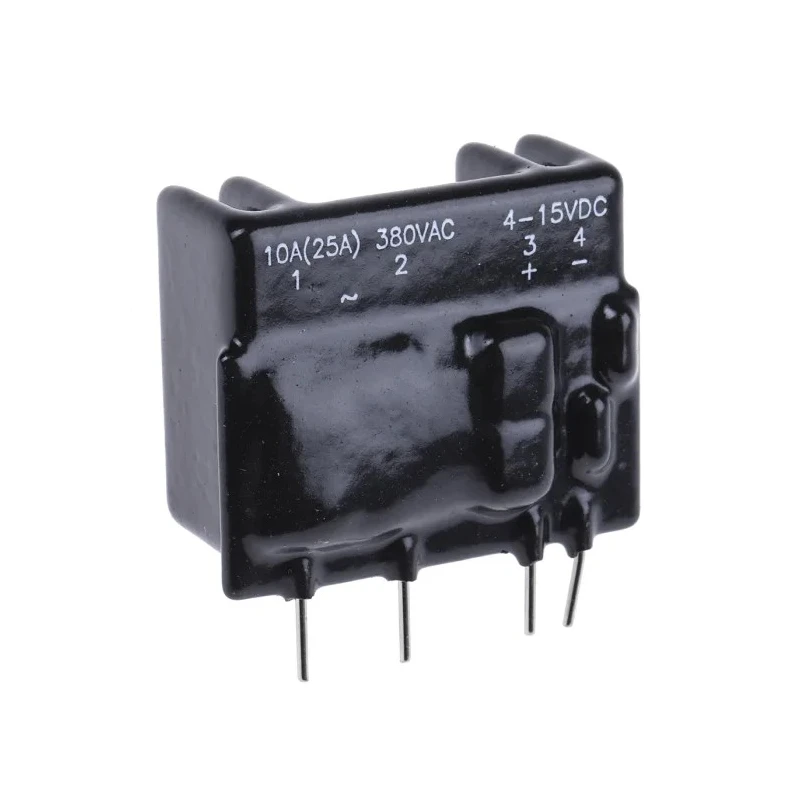

Crydom PF Series Solid State Relay 25A Load 530Vrms PCB Mount Screw Terminal PF380D25
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 34.3mm |
| Operating Temperature Range | -40 → +80°C |
| Length | 43.1mm |
| Model | PF380D25 |
| IP Rating | IP20 |
| Width | 22.8mm |
| Mount Type | PCB |
| Output type | SCR |
| Series | PF |
| Maximum Operating Temperature | 80°C |
| Package Type | SIP |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 25A |
| Standards/Approvals | CSA, UR, RoHS |
| Minimum Load Voltage | 48V |
| Minimum Control Voltage | 3V |
| Maximum Control Voltage | 15V |
| Off State Leakage Current | 0.1mA |
| Surge current peak | 250A |
| Input-Output capacitance | 8pF |
Key Features
- Supports a maximum load current of 25 amps for high power applications.
- Rated maximum load voltage of 530 Vrms and minimum load voltage of 48 volts.
- Operates with control voltage between 3V minimum and 15V maximum.
- Features zero-cross switching function for reduced electrical noise.
- Designed with a SIP package type and screw terminals for secure mounting.
- Operational temperature range from -40°C to +80°C ensures reliability under harsh conditions.
- Includes low off-state leakage current of 0.1 mA for energy efficiency.
- IP20 rated for basic protection against contact and objects greater than 12mm.
Product Description
The Crydom PF380D25 is a high-performance PF Series Solid State Relay designed for PCB mounting with screw terminal connections. It supports a maximum load current of 25 amperes and can handle load voltages up to 530 Vrms, making it suitable for demanding industrial and automation applications.
This series features ultra-high steady state current ratings and low leakage current, providing efficient operation with minimal energy loss. The relay's zero-cross switching function reduces electrical noise and EMI, improving system stability in AC load switching scenarios.
The device is packaged in a SIP form factor with compact dimensions of 34.3 mm in height, 43.1 mm in length, and 22.8 mm in width. It's rated IP20 for protection against solid objects and designed to operate reliably between -40°C and 80°C, accommodating a wide range of environmental conditions.
The PF380D25 relay includes surge current peak capacity of 250A and an input-output capacitance of 8pF, ensuring durable performance under transient loads. It meets CSA, UR, and RoHS compliance standards, underscoring its industrial quality and reliability.
This solid state relay is well-suited for industrial automation, process control, HVAC systems, manufacturing equipment, and electrical signal conditioning applications where silent and reliable switching is critical.
Maximum load current of 25 A supports powerful load handling. Zero-cross switching function minimizes electrical noise and surge. Robust screw terminal mounting ensures secure installation. Wide operating temperature range from -40°C to 80°C for diverse environments.
Compact SIP package with dimensions: 34.3 mm (H) x 43.1 mm (L) x 22.8 mm (W). Low off-state leakage current of 0.1 mA for energy efficiency. Surge current peak capacity of 250 A ensures transient tolerance. Input-output capacitance of 8 pF for stable switching performance.
Compliance with CSA, UR, and RoHS standards. Ideal for PCB mounting in industrial control and automation systems. Explore the Crydom range and other quality Solid State Relays through EnvMart for reliable industrial electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PF380D25 supports a maximum load current of 25 amperes.
It operates reliably within a temperature range of -40°C to +80°C.
This model can handle load voltages up to 530 Vrms.
The relay is designed for PCB mounting with screw terminal connections for secure installation.
It features a low off-state leakage current of 0.1 mA, contributing to energy efficiency.
The surge current peak capacity is 250A, allowing it to tolerate transient loads effectively.
The input-output capacitance is 8 pF, which helps ensure stable switching performance.
It operates with a control voltage between 3V minimum and 15V maximum.
This relay has an IP20 rating, providing basic protection against contact and objects greater than 12mm.
It meets CSA, UR, and RoHS compliance standards, indicating its industrial quality.
It features a zero-cross switching function, which helps reduce electrical noise and EMI.
The dimensions of this model are 34.3 mm in height, 43.1 mm in length, and 22.8 mm in width.
