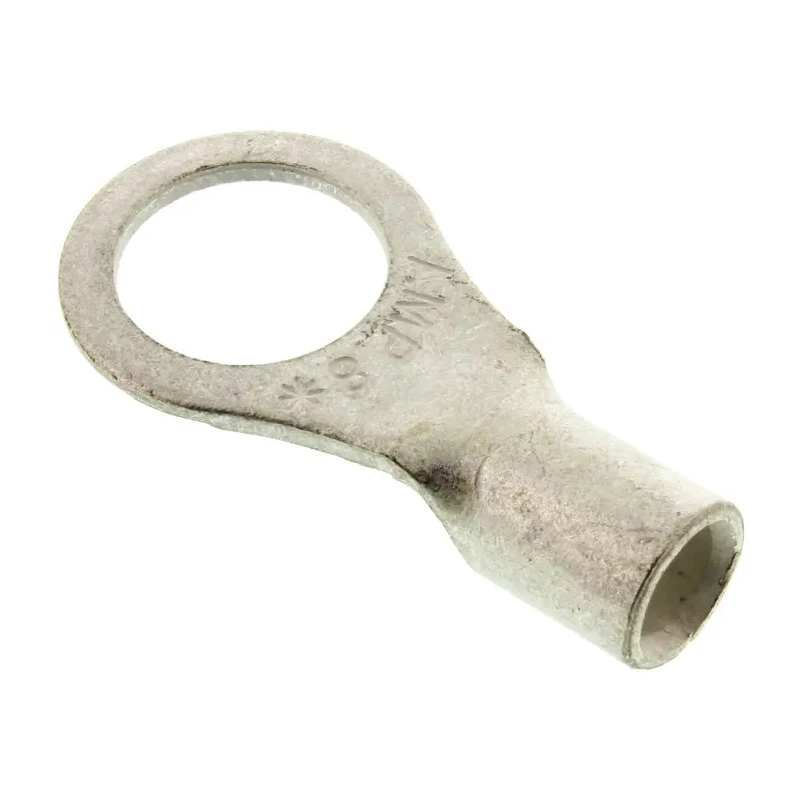

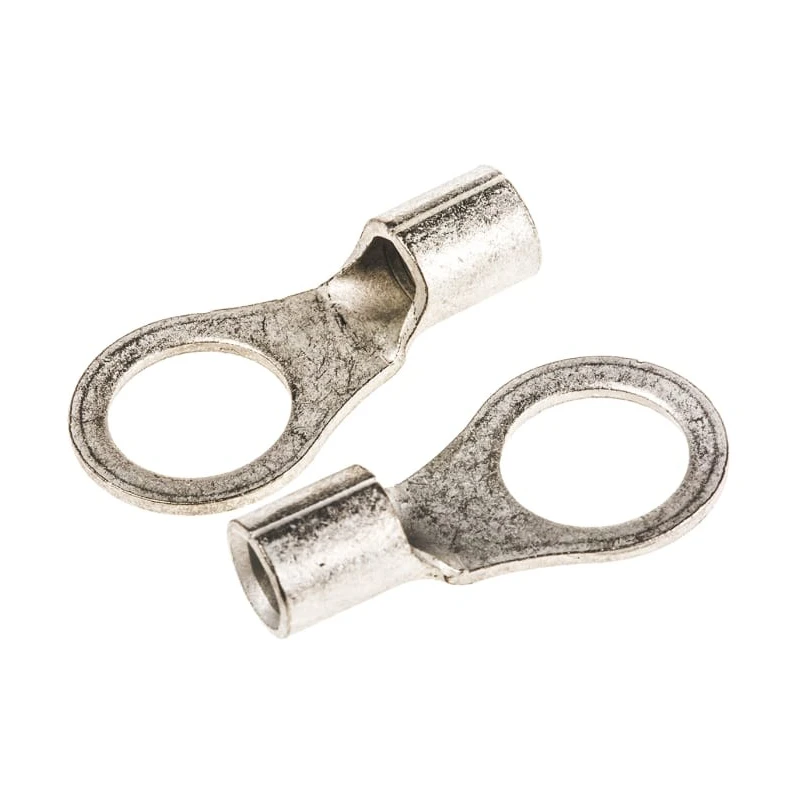

TE Connectivity Solistrand Uninsulated Crimp Ring Terminal M10 Stud Size 8 AWG 8 AWG Wire Size 160056
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | 160056 |
| Insulation | Uninsulated |
| Overall Length | 29.71mm |
| Contact Material | Copper |
| Series | Solistrand |
| Maximum Operating Temperature | 170°C |
| Standards/Approvals | RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 6.6mm² |
| Maximum Wire Size mm² | 10.5mm² |
| Minimum Wire Size AWG | 8AWG |
| Outer Ring Diameter | 15.09mm |
| Inner Ring Diameter | 10.49mm |
| Stud Size | M10 |
| Standards/Approvals RoHS, ANSI/ESD S20.20 | 2021 Electrostatic Control Standard |
| TE Connectivity Crimp Ring Terminal, 5mm Stud SizeBrand | TE Connectivity |
Key Features
- Constructed from fine grade high conductivity copper for excellent electrical performance.
- Electro tin plated for enhanced corrosion resistance.
- Robust design suitable for harsh industrial environments.
- Brazed seams provide increased barrel strength and durability.
- Dimpled and serrated barrel improve electrical contact and tensile strength.
- Bell shaped barrel entrance facilitates easy and quick wire insertion.
- Rated for maximum operating temperature of 170°C for reliable high-temperature applications.
- Suitable for use in materials handling equipment, motors, heavy equipment, transformers, switchgear, telecommunications, appliances, and panel boxes.
Product Description
TE Connectivity 160056 Solistrand uninsulated crimp ring terminal features a robust design made from fine grade high conductivity copper to deliver optimal electrical performance in demanding industrial environments. This Crimp Terminal supports an M10 stud size and 8 AWG wire size, suitable for secure and reliable wire connections.
The contact is tin plated to improve corrosion resistance, extending the service life even in harsh conditions. Its brazed seams enhance the barrel strength, while the serrated inner surface ensures maximum tensile strength and superior electrical contact after crimping.
The closed barrel design with a bell-shaped mouth allows for easy wire insertion, reducing installation time and effort. The product is rated for a maximum operating temperature of 170°C, making it a suitable choice for standard and high-temperature industrial applications.
This Solistrand terminal is widely used across various sectors, including materials handling equipment, motors, heavy machinery, pad and pole mount transformers, switchgear, telecommunications, appliances, panel boxes, power supplies, and instrumentation control.
Compliance with RoHS and ANSI/ESD S20.20:2021 Electrostatic Control Standard ensures this terminal meets stringent industry requirements. Constructed from fine grade high conductivity copper for excellent electrical performance.
Electro tin plating enhances corrosion resistance for longevity. Robust design suitable for harsh environments. Brazed seams improve barrel strength. Serrated inner barrel offers increased electrical contact and mechanical strength.
Bell shaped barrel entrance for ease of wire insertion. Maximum operating temperature of 170°C for high-temp applications. Complies with RoHS and ANSI/ESD S20.20:2021 standards. Explore TE Connectivity’s range of electrical components for industrial, telecommunications, and manufacturing applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this crimp ring terminal is 170°C, making it suitable for high-temperature applications.
This terminal supports a minimum wire size of 8 AWG and a maximum wire size of 10.5 mm², which is approximately 6.6 mm².
The stud size for this crimp terminal is M10, allowing for secure connections.
It is constructed from fine grade high conductivity copper and features tin plating for enhanced corrosion resistance.
This terminal complies with RoHS and ANSI/ESD S20.20:2021 Electrostatic Control Standard, ensuring it meets industry requirements.
The overall length of this terminal is 29.71 mm, with an outer ring diameter of 15.09 mm and an inner ring diameter of 10.49 mm.
The terminal features a serrated inner barrel that enhances electrical contact and mechanical strength after crimping.
No, this model is uninsulated, which is suitable for specific applications where insulation is not required.
It is suitable for use in materials handling equipment, motors, heavy equipment, transformers, switchgear, telecommunications, appliances, and panel boxes.
The bell-shaped barrel entrance facilitates easy and quick wire insertion, reducing installation time and effort.
The brazed seams provide increased barrel strength and durability, enhancing the overall performance of the terminal.
The contact is electro tin plated, which improves corrosion resistance and extends the service life of the terminal.
