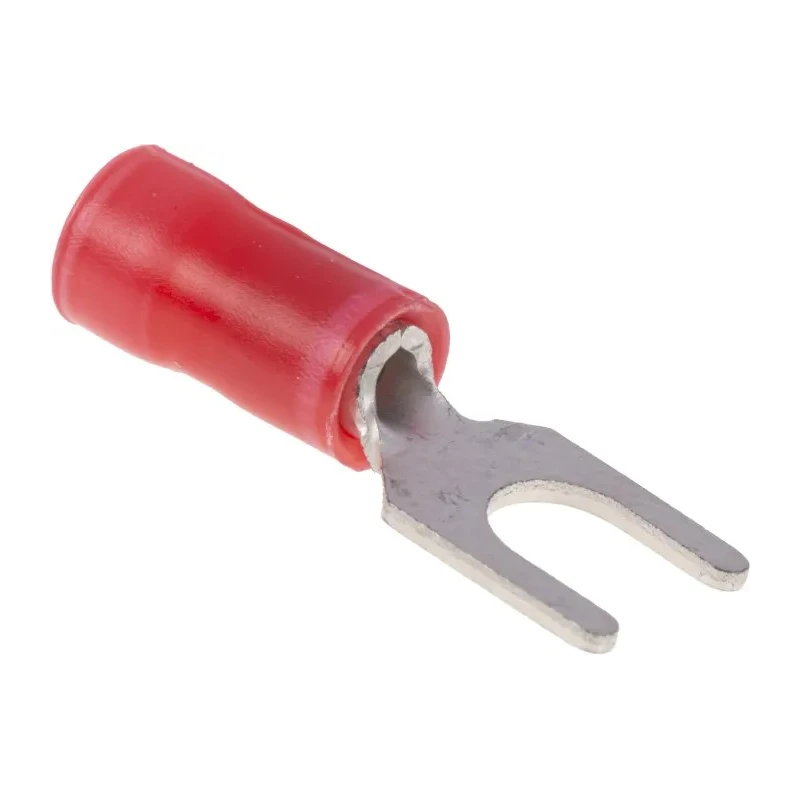

TE Connectivity PLASTI-GRIP Insulated Fork Terminal 22 AWG to 16 AWG, 4.17 mm Stud Size, Red 165008
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 165008 |
| Width | 7.1mm |
| Insulation | Insulated |
| Overall Length | 21.1mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.25mm² |
| Maximum Wire Size mm² | 1.6mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Stud Size | 4.17 mm |
Key Features
- Constructed with high conductivity tin plated copper for excellent electrical performance.
- Expanded high dielectric strength vinyl insulation rated at 94V-0 for safety.
- Inner serrated barrel ensures maximum electrical contact and tensile strength after crimping.
- Funnelled wire entry simplifies insertion of stripped wires.
- Designed for use in various electrical and electronic applications.
- Compact overall length of 21.1 mm with a width of 7.1 mm.
- Suitable for wire sizes ranging 0.25 mm² (22 AWG) to 1.6 mm² (16 AWG).
- Contact plating is tin; contact material is copper to ensure durability and conductivity.
Product Description
TE Connectivity 165008 PLASTI-GRIP insulated fork terminal designed for reliable electrical connections in industrial, electronic, and commercial applications. This fork terminal accommodates wire sizes from 22 AWG to 16 AWG (0.25 mm² to 1.6 mm²) and features a 4.17 mm stud size. The terminal is finished with high conductivity tin-plated copper contacts and an expanded vinyl insulation sleeve rated for high dielectric strength (94V-0).
The inner barrel is serrated to provide enhanced electrical contact and tensile strength after crimping, ensuring a secure and long-lasting connection. The funnelled entry on the wire barrel eases insertion of stripped wires for faster and more efficient assembly.
The red insulation color helps in quick identification of wire gauge and terminal type. With an overall length of 21.1 mm and a width of 7.1 mm, it fits compact assemblies while maintaining durability with a thickness of 0.79 mm.
These terminals are ideal for applications in electronics manufacturing, electrical wiring in industrial equipment, automotive wiring harnesses, and other fields requiring high-quality wire terminations.
Constructed with high conductivity tin plated copper for excellent electrical performance. Expanded vinyl insulation rated 94V-0 ensures high dielectric strength. Inner serrated barrel maximizes electrical contact and mechanical strength post-crimping.
Funnelled wire entry enables easier wire insertion. Wide application in industrial, electronic, and commercial wiring projects. Compact size supports versatile installation in constrained environments. Red insulation sleeve aids in wire gauge identification.
Durable contact plating and materials ensure long life and reliability. Manufactured in the United States honoring quality control standards. Explore EnvMart's comprehensive range of electrical connectors and terminals to find suitable products for your industrial, laboratory, and electronic wiring needs.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal can accommodate wire sizes ranging from 22 AWG (0.25 mm²) to 16 AWG (1.6 mm²).
The stud size for this insulated fork terminal is 4.17 mm.
It is constructed with high conductivity tin-plated copper for the contacts and features expanded vinyl insulation.
The overall length of this terminal is 21.1 mm, and its width is 7.1 mm.
The thickness of this terminal is 0.79 mm.
This terminal features expanded vinyl insulation rated for high dielectric strength, specifically 94V-0.
The inner serrated barrel maximizes electrical contact and tensile strength after crimping, ensuring a secure connection.
The insulation on this terminal is red, which aids in quick identification of wire gauge and terminal type.
This terminal is suitable for various applications including electronics manufacturing, industrial equipment wiring, and automotive wiring harnesses.
This terminal is manufactured in the United States, adhering to quality control standards.
The contact plating material for this terminal is tin, which ensures good conductivity.
The funnelled wire entry simplifies the insertion of stripped wires, facilitating faster and more efficient assembly.
