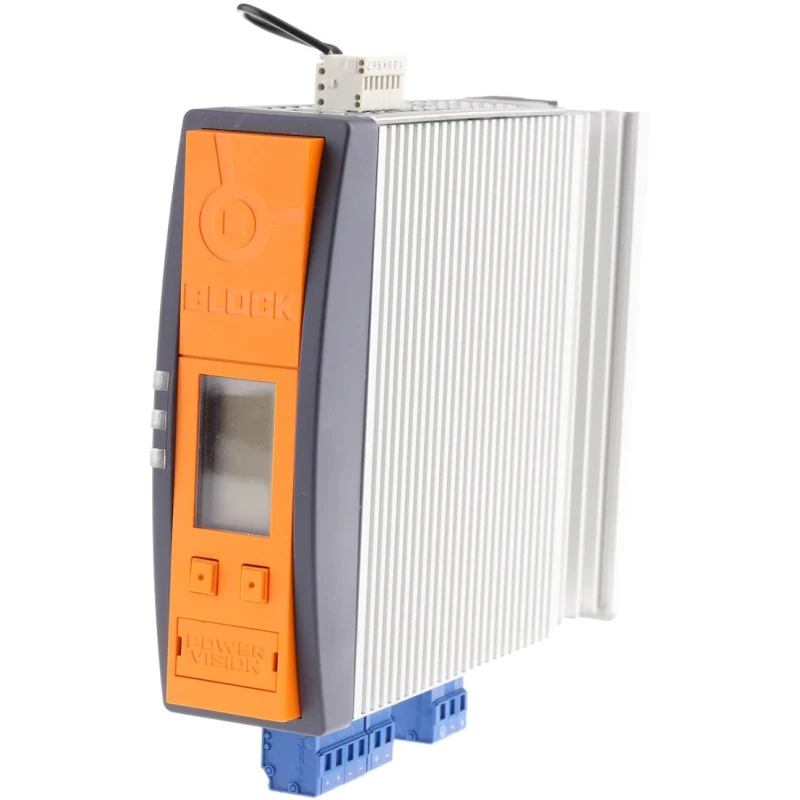

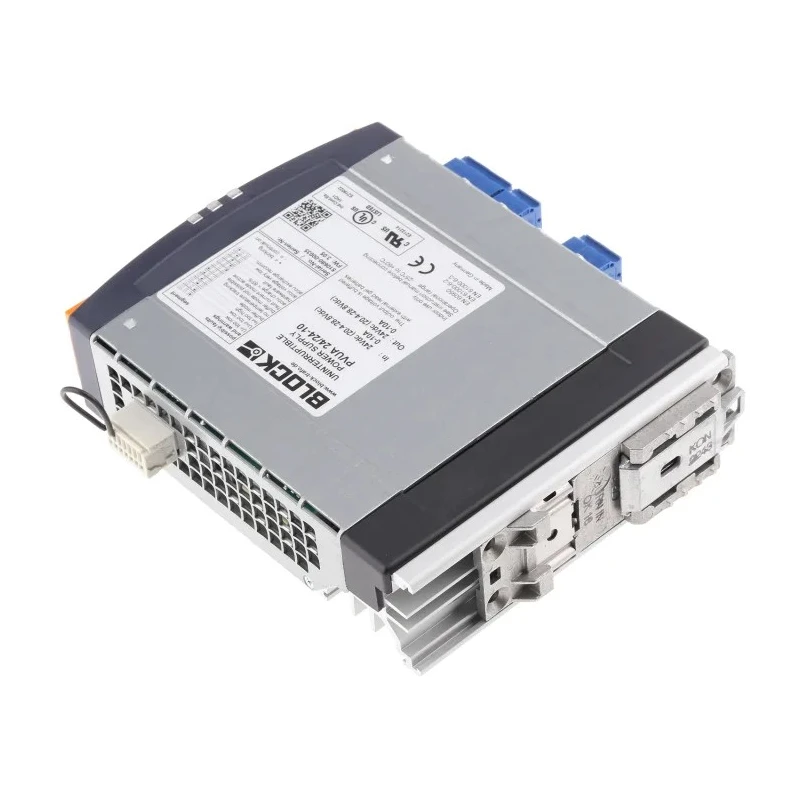

Block Uninterruptible Power Supply 22V DC, 29V DC Input, 480W, 24V DC Output, DIN Rail Mount, Backup Time 10s PVUA 24/24-10

Block PVUA 24/24-10 uninterruptible power supply is a highly advanced power solution designed for industrial, electronic, and commercial control systems requiring reliable, uninterrupted DC power.

This device operates off an input voltage range between 22 V DC and 29 V DC, providing a stabilized and adjustable 24 V DC output rated at 480 watts and supporting currents up to 10.8 amps. The DIN rail mount construction enables flexible and secure installation within electrical enclosures and control panels.

One of the notable features of the PVUA 24/24-10 is its backup time of 10 seconds, which offers critical short-duration power hold-up during transitional periods of power loss or fluctuations, ensuring operational continuity.

Compact in size, with dimensions measuring 127 mm in length, 40 mm in width, and 163 mm in depth, this unit facilitates efficient use of panel space. It complies with UL 60950 (CSA C22.2/No.60950) and UL 508 (CSA C22.2/No.14-95) safety standards, signifying robust design and adherence to international electrical safety requirements.

The PV series includes a high power reserve capability enabling up to 200% real power boost for short durations of 4 seconds, allowing it to handle demanding transient load conditions effectively. A spring-loaded connector system makes wiring service-friendly and reduces maintenance effort.

Manufactured in Germany, this power supply unit offers industrial-grade reliability and durability suitable for automation, control systems, and power supply applications in manufacturing, instrumentation, and other sectors requiring uninterruptible DC power solutions.

Supports input voltage range from 22 V DC to 29 V DC. Delivers a constant 24 V DC output voltage with 10.8A current capacity. DIN rail mount type allows easy installation in electrical cabinets. Backup time of 10 seconds ensures short-term power continuity during outages.

Compact dimensions: 127 mm length, 40 mm width, and 163 mm depth for space-efficient fitting. Complies with UL 60950 and UL 508 standards for safety and reliability. Features up to 200% real power boost for 4 seconds to handle transient loads.

Equipped with a service-friendly spring-loaded connector system for convenient wiring. Designed and manufactured in Germany to ensure high quality and durability. Explore the EnvMart catalog for comprehensive selections of Uninterruptible Power Supplies and power systems for diverse industrial and electronic applications.
