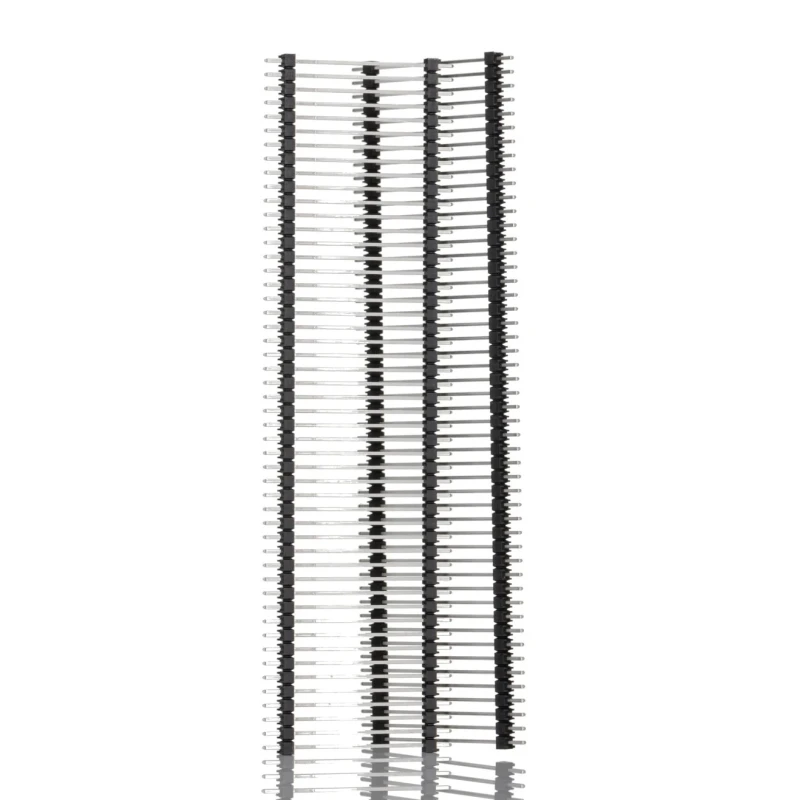

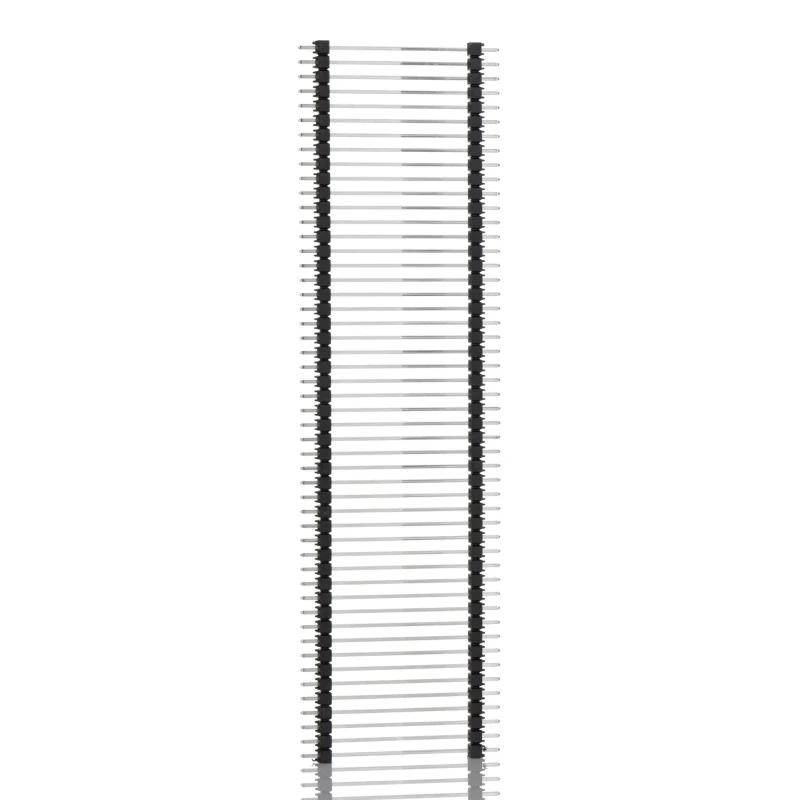

Samtec DW Series Straight Through Hole Pin Header, 50 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded DW-50-14-T-S-1200

Samtec DW-50-14-T-S-1200 is a straight through hole pin header designed to provide robust and reliable connections between circuit boards. This component features 50 male contacts arranged in a single row with a 2.54 mm pitch, making it suitable for high-density PCB layouts.

The pin header’s contacts are crafted from phosphor bronze, a material known for its superior conductivity and mechanical strength. Tin plating on the contacts enhances corrosion resistance, ensuring long-term reliability even in humid or challenging environments.

The black glass-filled polyester housing provides excellent insulation and mechanical support, making the component durable and safe to use. Its unshrouded design facilitates easy board stacking and multiwire connections in complex circuit assemblies.

With a through-hole termination type, this pin header mounts securely on printed circuit boards. Its tail pin length of 2.79 mm and mating pin length of 3.05 mm ensure compatibility with common mating connectors. The header supports a current rating of 3 A, adequate for a wide range of electronic equipment.

This pin header supports operating temperatures from -55°C up to 125°C, fit for harsh industrial and military environments. The phosphor bronze material combined with tin plating provides high electrical performance and durability.

Its straight orientation and board-to-board connector system enable streamlined PCB designs. The flexible height and unshrouded contacts allow efficient multi-layer board stacking. Applications include telecommunications, industrial automation, medical devices, pharmaceutical equipment, and military-grade electronics.

Through-hole mounting ensures a stable and lasting connection on the PCB. The black glass-filled polyester housing minimizes risk of electrical shocks and withstands demanding operational conditions.

This Samtec DW Series pin header is a vital component for engineers and designers seeking reliable, high-quality electronic connectors. Explore more Samtec DW Series pin headers and electronic components at EnvMart for your next project or production run.
