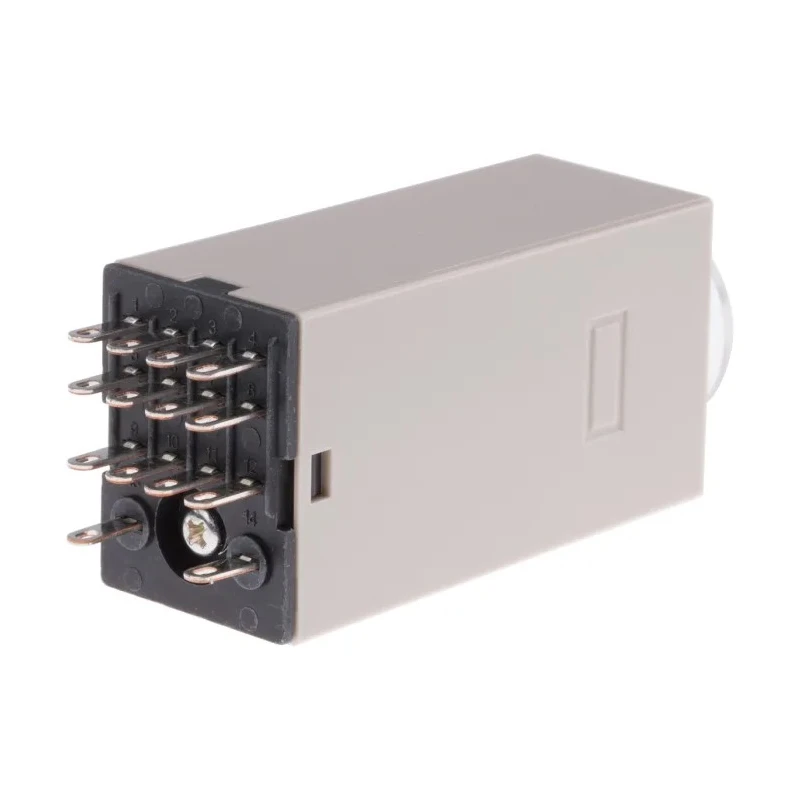

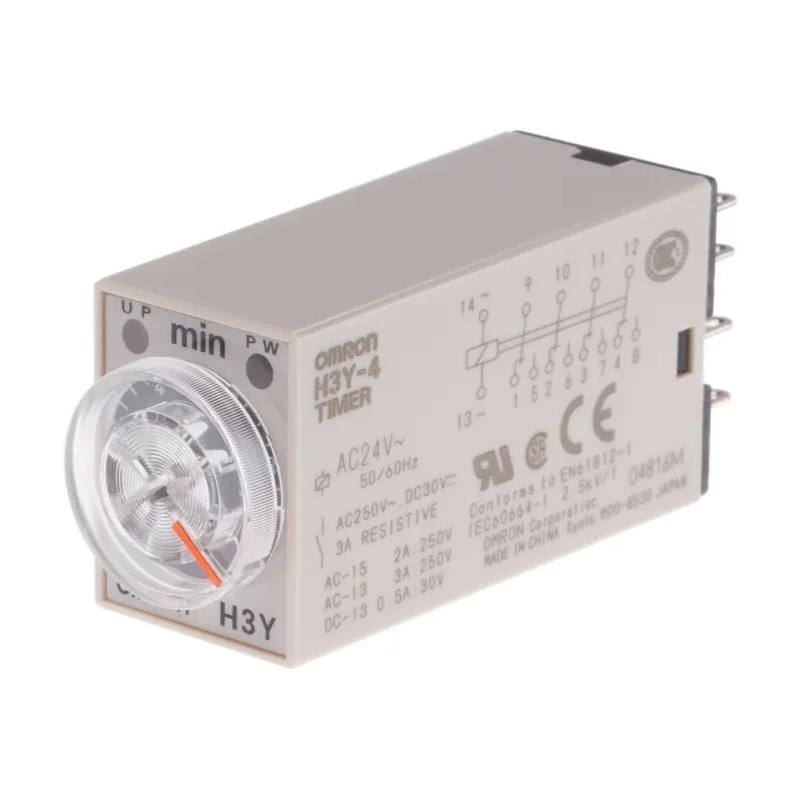

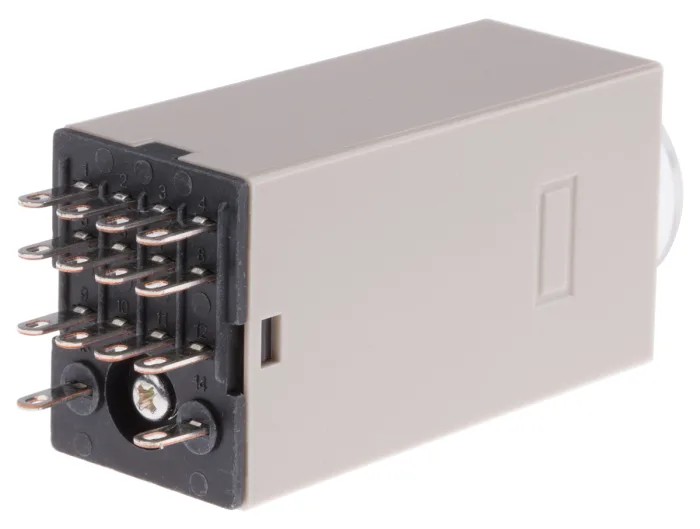

Omron H3Y-4 Series DIN Rail Surface Mount Solid State Timer 24V AC 125V DC 0.5 to 10 min 4-Contact 1-Function H3Y-4 AC24 10M
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 63mm |
| Function | Multifunction |
| Length | 28mm |
| Model | H3Y-4 AC24 10M |
| IP Rating | IP40 |
| Mode | ON Delay |
| Width | 21.5mm |
| Mount Type | DIN Rail, Surface Mount |
| Series | H3Y-4 |
| Maximum Operating Temperature | 50°C |

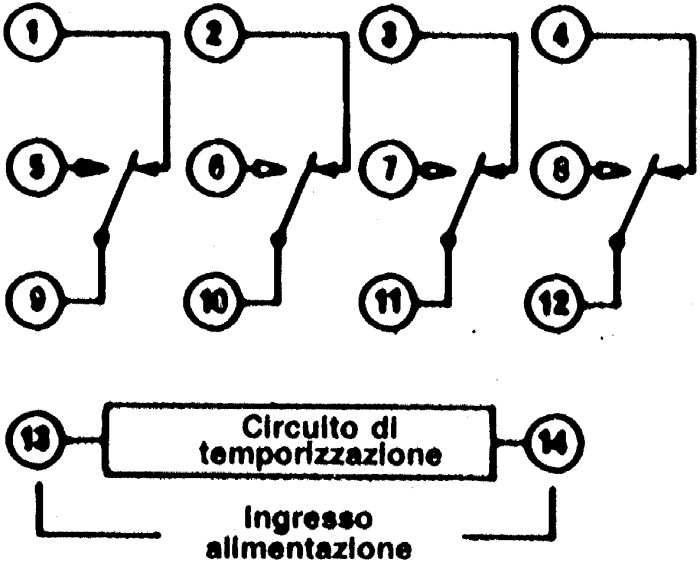

| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.5 to 10 min |
| Terminal type | Plug-In |
| Number of Contacts | 4 |
| Number of Timer Functions | 1 |
| Switching Voltage | 250, 30V ac |
| Contact Current | 5A |
| Supply DC Voltage | 125 V dc |

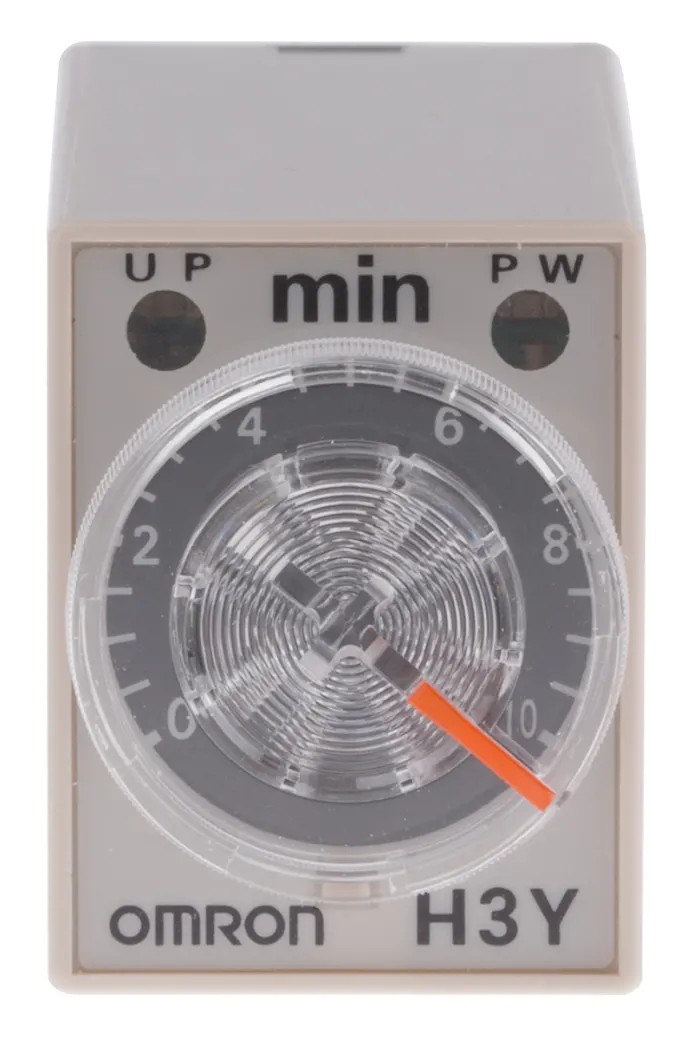

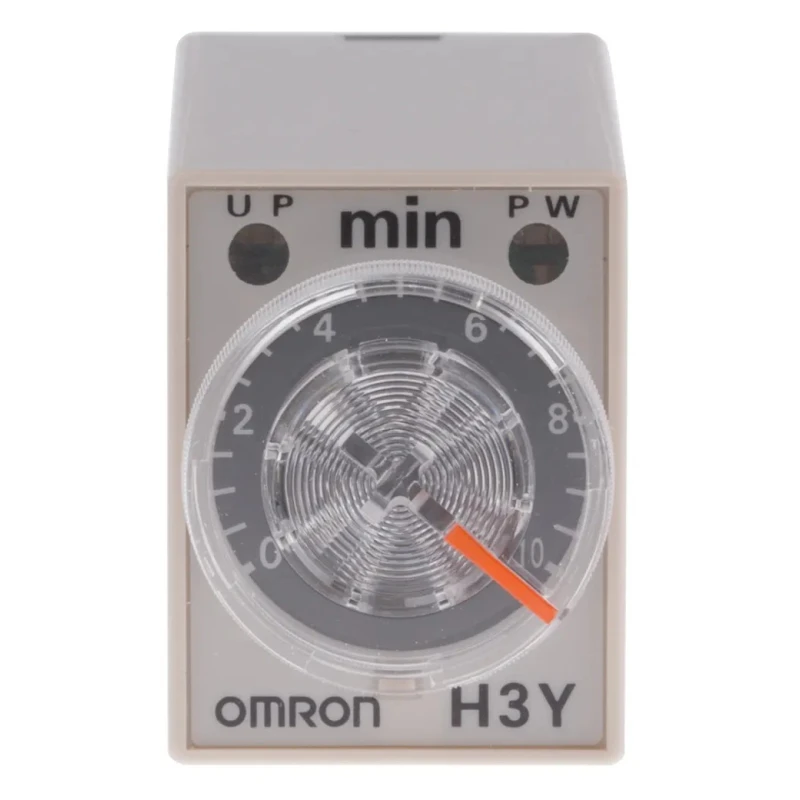

| Timing Adjustment | Dial |
| Supply AC Voltage | 24V ac |
| CSA C22.2 No. 14, IEC 60664-1, Lloyds, UL 508, CE, CCC | GB/T 14048.5, EN 61812-1 |
| 4PDT on delay timer,0.5-10min 24VacBrand | NEUTRAL |
Key Features
- The timer supports both 24 V AC and 125 V DC supply voltages.
- It features a 4PDT contact configuration with a contact current rating of 5A.
- Timing is adjustable via a dial for precise ON delay operation.
- The timer’s compact dimensions are approximately 21.5 mm width, 63 mm height, and 28 mm length.
- It is suitable for industrial automation applications needing reliable solid state timing control.
- Operating temperature ranges from -10°C to 50°C ensuring stability in varied environments.
- IP40 rated for protection against solid objects while mounted on DIN rails or surface mount.
- Complies with international standards including UL 508, CSA C22.2 No. 14, IEC 60664-1, CE, CCC and others.
Product Description
Omron H3Y-4 AC24 10M is a high-quality solid state timer designed for DIN rail and surface mounting applications. This multifunction timer relay features a 4-contact 4PDT configuration, capable of switching up to 5A with supply options of 24 V AC and 125 V DC. Its adjustable timing dial allows precise control of ON delay times ranging from 0.5 to 10 minutes, making it highly versatile for industrial automation and control systems.
The compact size with dimensions of 21.5 mm width, 63 mm height, and 28 mm length enables efficient use of limited panel space. The solid state construction ensures reliable and silent operation with enhanced durability compared to electromechanical timers.
Operating across a temperature range of -10°C to 50°C, this timer relay is suitable for various industrial environments. The IP40 protection rating safeguards the device against ingress of solid particles while installed on DIN rails or surface mount surfaces.
Omron's H3Y-4 series complies with multiple international standards including UL 508, CSA C22.2 No. 14, IEC 60664-1, Lloyds, CE, CCC, GB/T 14048.5, and EN 61812-1, reflecting strong safety and performance credibility.
The timer supports 24 V AC and 125 V DC supply voltages. 4PDT contact configuration provides 4 contacts for switching multiple circuits. Adjustable ON delay timing from 0.5 to 10 minutes via dial. Compact footprint with 21.5 mm width allows easy DIN rail installation.
Suitable for automation, industrial machinery, process control, and HVAC systems. Durable solid state design offers silent and maintenance-free operation. Compliance with international standards for industrial safety and reliability.
IP40 rated for protection against solid objects during operation.
This Omron timer relay is ideal for precise timing control in electrical and automation systems, ensuring dependable performance in diverse industrial, manufacturing, laboratory, and process control applications. It provides robust timing functions with high switching capacity within a compact form factor.
Explore wider ranges of Timer Relays and solid state timers on EnvMart for comprehensive automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timing range of this timer relay is adjustable from 0.5 to 10 minutes.
It supports supply voltages of 24 V AC and 125 V DC.
The H3Y-4 features a 4PDT contact configuration, allowing it to switch multiple circuits.
The maximum contact current rating for this model is 5A.
This model has compact dimensions of approximately 21.5 mm in width, 63 mm in height, and 28 mm in length.
The operating temperature range for this timer relay is from -10°C to 50°C.
The timer relay has an IP40 rating, providing protection against solid objects.
Timing adjustment is made via a dial, allowing for precise control of the ON delay operation.
This timer relay can be mounted on DIN rails or surface-mounted.
It complies with multiple international standards including UL 508, CSA C22.2 No. 14, IEC 60664-1, CE, and CCC.
It is suitable for industrial automation, process control, and HVAC systems, providing reliable timing control.
The timer relay features plug-in terminal types for easy installation.
