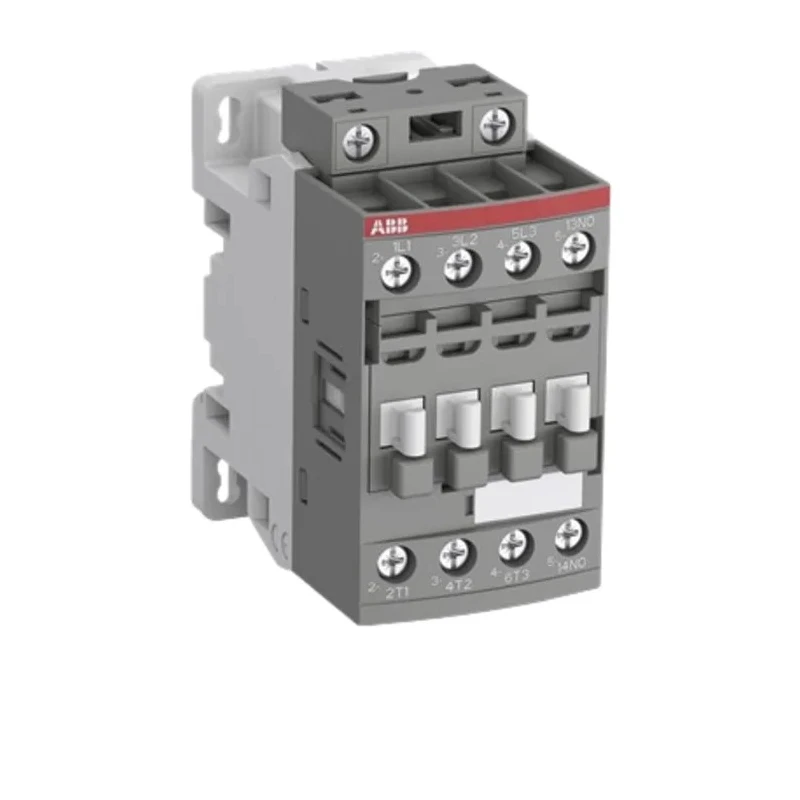

ABB AF09 Contactor, 12-20V DC Coil, 3-Pole, 25A, 4 kW, Screw Terminal, DIN Rail Mount AF09
Specifications
| Country of Origin | India |
|---|---|
| Brand | ABB |
| Function | Control Unit |
| Length | 80mm |
| Model | AF09 |
| Depth | 77mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | AF09 |
| Power Rating | 4kW |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | IEC 60947-4-1 |
| Contact Voltage | 690V ac |
| Coil Voltage | 12, 20V dc |
| Normal State Configuration | 3 NO |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 20V dc |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3P |
Key Features
- Operates with a coil voltage range of 12 to 20 volts DC for flexible control.
- Features a 3-pole configuration suitable for motor and power circuit control.
- Rated for 25 amps contact current and 690 volts AC contact voltage.
- Screw terminal type ensures secure and reliable electrical connections.
- Compact design with DIN rail mounting for easy installation.
- Includes one auxiliary contact with 1 NO configuration for supplementary control.
- Designed to operate in a wide temperature range from -40°C to +70°C.
- Meets IEC 60947-4-1 standards ensuring industrial compliance and safety.
Product Description
ABB AF09 Contactor AF09 model is designed for efficient motor control and power circuit switching with a coil voltage of 12 to 20 volts DC, supporting 3 poles and rated 25 amperes for operational current. It delivers a power rating of 4 kW and supports contact voltage up to 690 volts AC, making it suitable for demanding industrial environments.
The device features a screw terminal type for reliable and secure connections and is mounted on standard DIN rails to facilitate easy installation in electrical panels. It includes one auxiliary contact with 1 NO configuration to enable additional control functions and signalling within automation systems.
Its operation is reliable within a broad temperature range from -40°C to +70°C, perfectly suited to harsh industrial conditions. The contactor complies with IEC 60947-4-1 standards ensuring quality and safety in electrical control gear applications.
Common use cases include motor control in industrial automation, power distribution networks, HVAC system fan motor management, and machinery energy control. Its compact design minimizes panel space while maintaining high performance and surge voltage protection enhances durability against voltage spikes.
Operates at coil voltage range 12-20V DC for wide control voltage tolerance. Three-pole design for industrial power circuit control. Contact current rated to 25A suitable for moderate power applications. Screw terminals provide secure electrical connections.
DIN rail mount standard for easy integration and installation. One auxiliary contact configured as 1 NO for added control options. Suitable for operating temperatures between -40°C and 70°C. Meets IEC 60947-4-1 industrial standards for reliability and safety.
This ABB AF09 contactor is an ideal component in industrial, manufacturing, HVAC, and automation systems requiring efficient motor and power circuit switching solutions. Browse related Contactors and electrical control gear in the EnvMart industrial catalog for compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ABB AF09 Contactor operates with a coil voltage range of 12 to 20 volts DC.
It is rated for a contact current of 25 amps, making it suitable for moderate power applications.
The maximum contact voltage for the ABB AF09 Contactor is 690 volts AC.
This model features a 3-pole configuration, suitable for motor and power circuit control.
The ABB AF09 Contactor uses screw terminals, ensuring secure and reliable electrical connections.
The dimensions of this model are 80mm in length, 77mm in depth, and 45mm in width.
It operates reliably within a temperature range from -40°C to +70°C.
Yes, it includes one auxiliary contact configured as 1 NO for additional control functions.
It meets the IEC 60947-4-1 standards, ensuring industrial compliance and safety.
The power rating for this model is 4 kW, suitable for various industrial applications.
This contactor is designed for DIN rail mounting, facilitating easy installation in electrical panels.
It is commonly used for motor control in industrial automation, power distribution networks, and HVAC system management.
