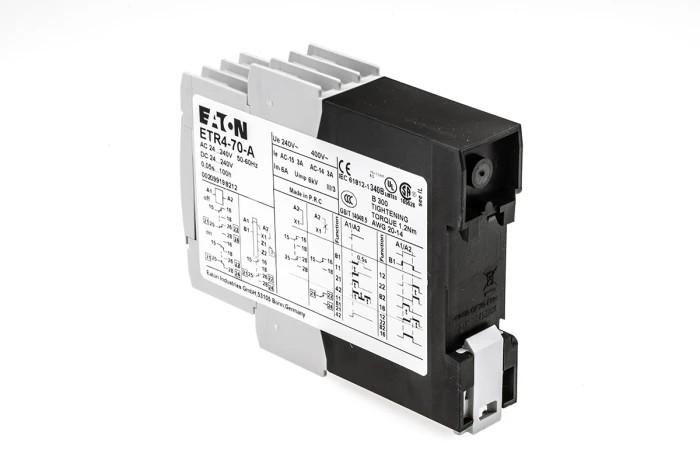

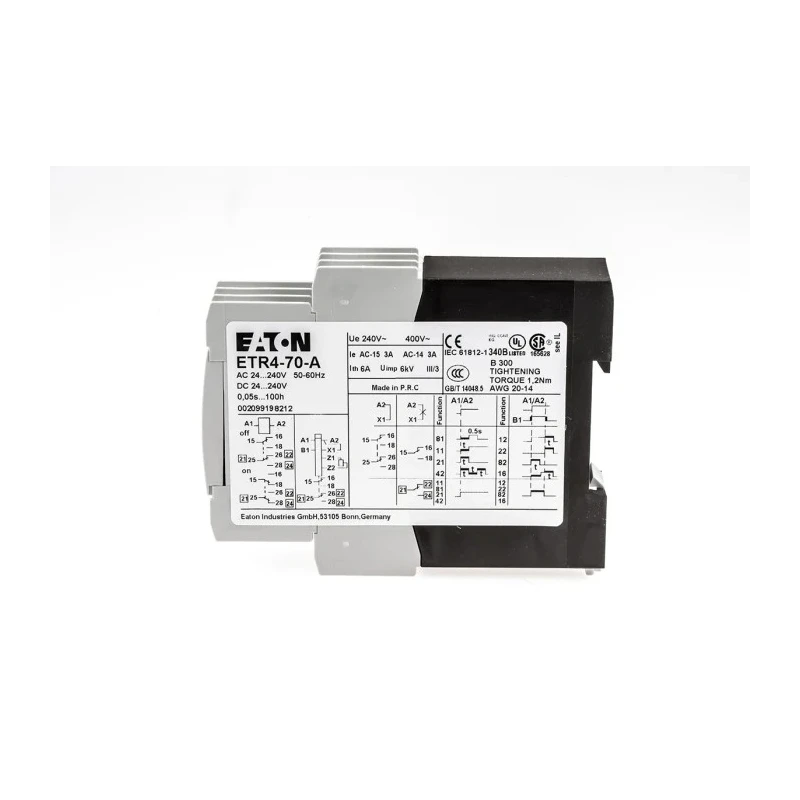

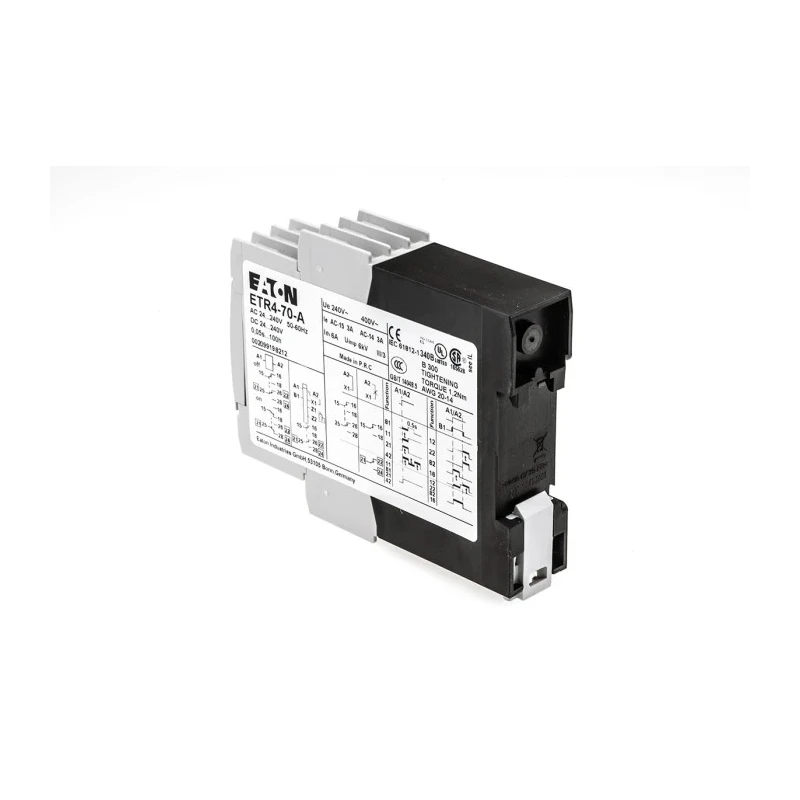

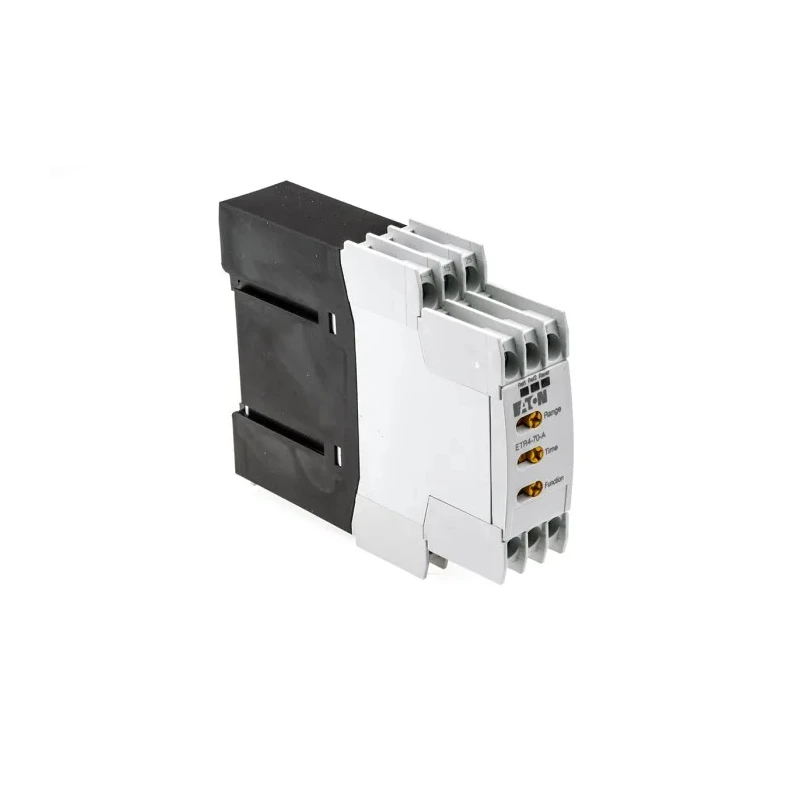

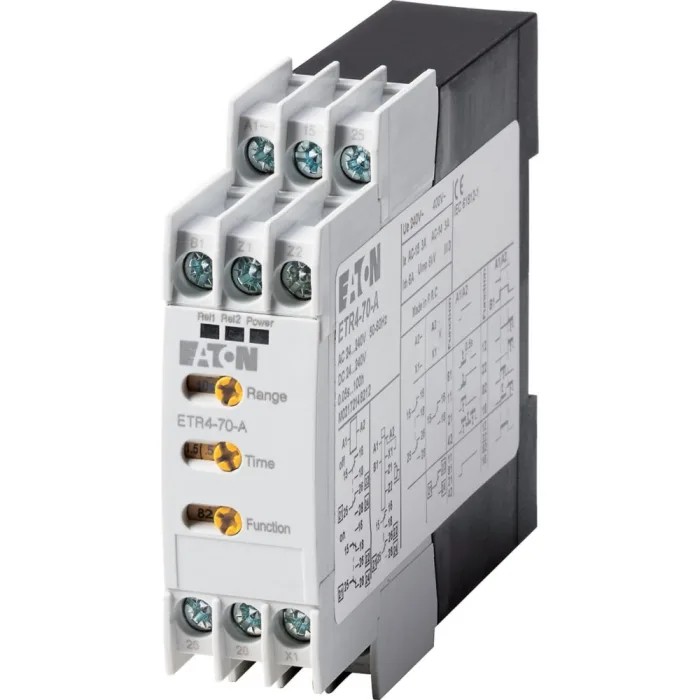

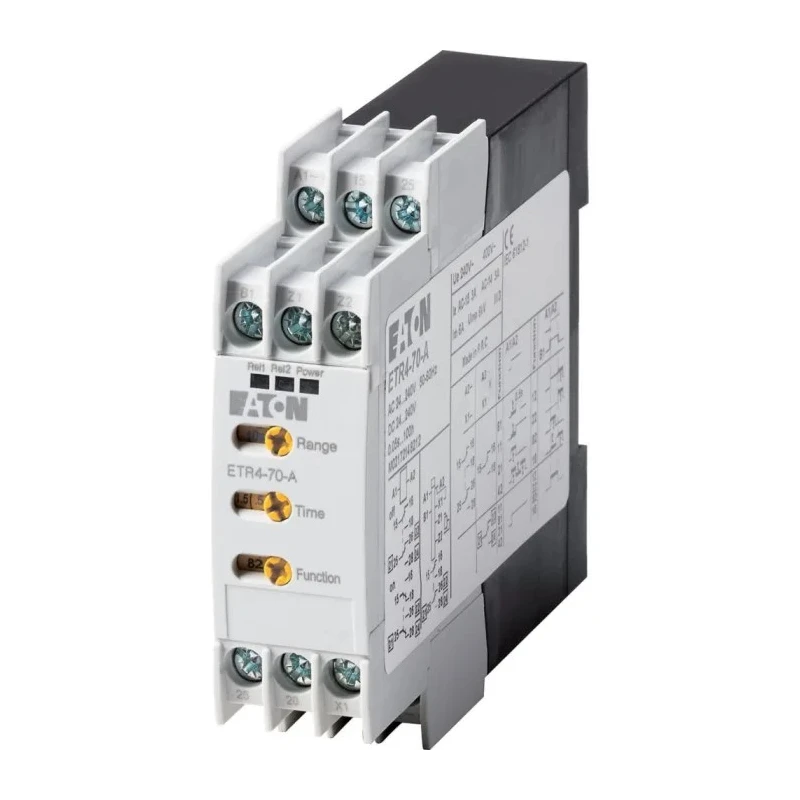

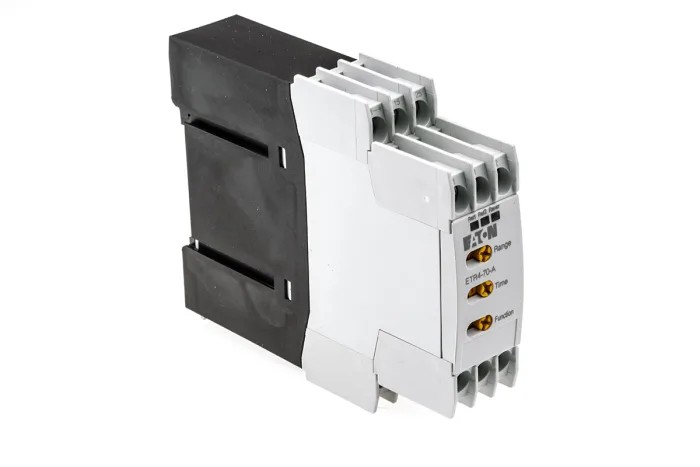

Eaton Series DIN Rail Timer Relay, Multifunction Function, 2-Contact DPDT, 24V ac/240V ac/dc, 0.05 s to 60 h Timing ETR4

Eaton ETR4 Series DIN Rail Timer Relay (Model ETR4) is a multifunctional relay designed for industrial automation, motor starting, and packaging line applications. It provides a broad time range from 0.05 seconds to 60 hours, configurable through a screwdriver slot for precise timing.

This relay features a DIN rail mount for quick installation and compact form factor measuring 82.5 mm length, 22.5 mm width, and 103 mm height, allowing it to fit into tight electrical enclosures.

With 2 contacts configured as DPDT and rated for 3A contact current, it supports supply voltages of 24V AC and 240V AC/DC, making it versatile for varied electrical environments. Operating temperature ranges from -20°C to 60°C ensure dependable performance under typical industrial conditions.

Rated IP20, this timer relay is protected against accidental contact and ingress of solid objects larger than 12.5 mm, enhancing user safety. The device complies with IEC and VDE standards, underscoring its quality and safety adherence.

Multifunction timer relay for diverse timing needs. Compact, DIN rail mounting for efficient panel integration. Wide time range from 0.05s to 60h adjustable by screwdriver slot. Dual contact DPDT configuration rated at 3A current.

Supports 24V AC and 240V AC/DC supply voltages. IP20 rated for finger protection and tool ingress resistance. Operating temperature from -20°C to +60°C ensures reliable function. Lightweight design helps reduce mounting strain.

Complies with IEC and VDE safety standards. Applications include automation, motor control, packaging, and timing operations.

This Eaton ETR4 Series timer relay combines precision timing with robust construction suitable for demanding industrial environments. For comprehensive selection and similar products, explore the Timer Relay category at EnvMart.
