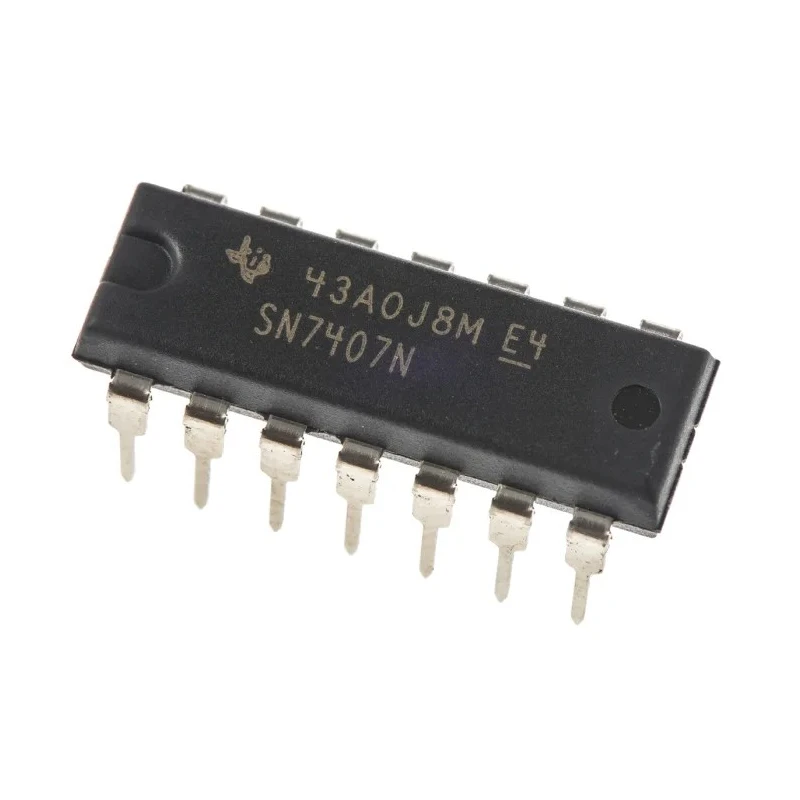

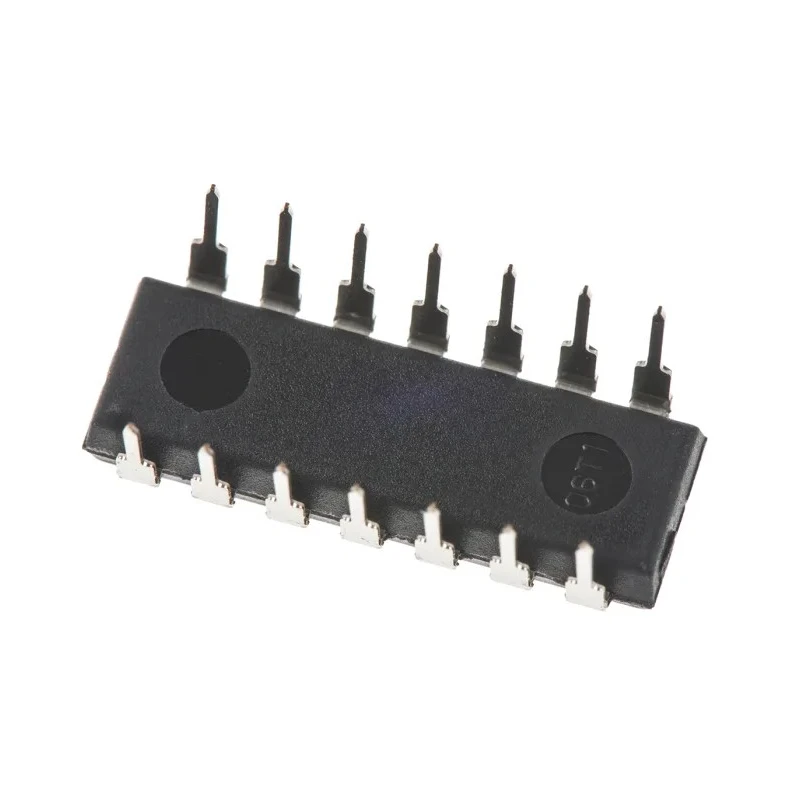

Texas Instruments 6-Channel Buffer & Line Driver IC, Open Collector, Non-Inverting, 14-Pin PDIP SN7407N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 19.94mm |
| Model | SN7407N |
| Width | 7.19mm |
| Mount Type | Through Hole |
| Output type | Open Collector |
| Series | SN7407 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Polarity | Non-Inverting |
| IC Type | Buffer & Line Driver IC |
| Number Of Channels | 6 |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | 74 |
| Logic Function | Driver, Buffer |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -0.25mA |
| Maximum Propagation Delay Time @ CL | 14ns |
| Supply Current | 41mA |
| Maximum Low Level Output Current | 40mA |
Key Features
- Operates within a supply voltage range of 4.75V to 5.25V.
- Provides six buffered line driver outputs with open collector output type.
- Non-inverting polarity ensures signal integrity for driving loads.
- Pin count of 14 pins in a PDIP through-hole mount package.
- Maximum propagation delay time of 14 nanoseconds at specified load.
- Operating temperature range from 0°C to 70°C suitable for industrial environments.
- Low supply current consumption at 41mA ensures efficient operation.
- Maximum low level output current of 40mA and maximum high level output current of -0.25mA.
Product Description
Texas Instruments SN7407N is a buffer and line driver integrated circuit in a 14-pin PDIP package. This device offers six channels with open collector outputs, designed for non-inverting signal drive applications.
Operating at a supply voltage range of 4.75V to 5.25V, the SN7407N delivers reliable line drive capability with a maximum propagation delay of 14ns under typical load conditions. Its open collector outputs allow for wired-AND logic functions and interfacing with various voltage levels.
The driver IC supports through-hole mounting with a 14-pin Dual In-line Package, with physical dimensions of 19.94 mm in length, 7.19 mm in width, and 5.08 mm in height, suitable for a range of PCB layouts.
Key electrical specifications include a supply current of 41mA, a maximum low-level output current of 40mA, and a maximum high-level output current of -0.25mA. The IC is designed to operate within an industrial temperature range from 0°C up to 70°C.
The SN7407N belongs to the 74 logic family and is widely used in electronic systems requiring line interface buffering, driving LED displays, relay coils, or other heavy loads where open collector output is advantageous.
Operates between 4.75V and 5.25V supply voltage. 6 buffered channels with open collector outputs and non-inverting logic. Through-hole PDIP package with 14 pins. Maximum propagation delay time of 14ns ensuring high-speed signal transmission.
Industrial operating temperature range from 0°C to 70°C. Low power consumption with supply current of 41mA. Physical size aids in ease of PCB assembly and space management. Compatible with 74 series logic circuits for easy integration.
This IC is suitable for industrial and commercial electronics applications, including instrumentation, automation, and control systems requiring reliable line drivers and buffers. Explore more semiconductor products and Line Interface ICs at EnvMart for diverse industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN7407N operates within a supply voltage range of 4.75V to 5.25V.
This model provides six buffered line driver outputs.
The maximum propagation delay time is 14 nanoseconds at specified load conditions.
It features open collector outputs, allowing for wired-AND logic functions.
The operating temperature range for the SN7407N is from 0°C to 70°C.
The SN7407N has a pin count of 14 and comes in a PDIP package type suitable for through-hole mounting.
The maximum low-level output current is 40mA.
The supply current consumption is 41mA, ensuring efficient operation.
Yes, it is compatible with 74 series logic circuits for easy integration.
The dimensions are 19.94 mm in length, 7.19 mm in width, and 5.08 mm in height.
This model accepts single-ended input.
It is suitable for applications requiring line interface buffering, such as driving LED displays and relay coils.
