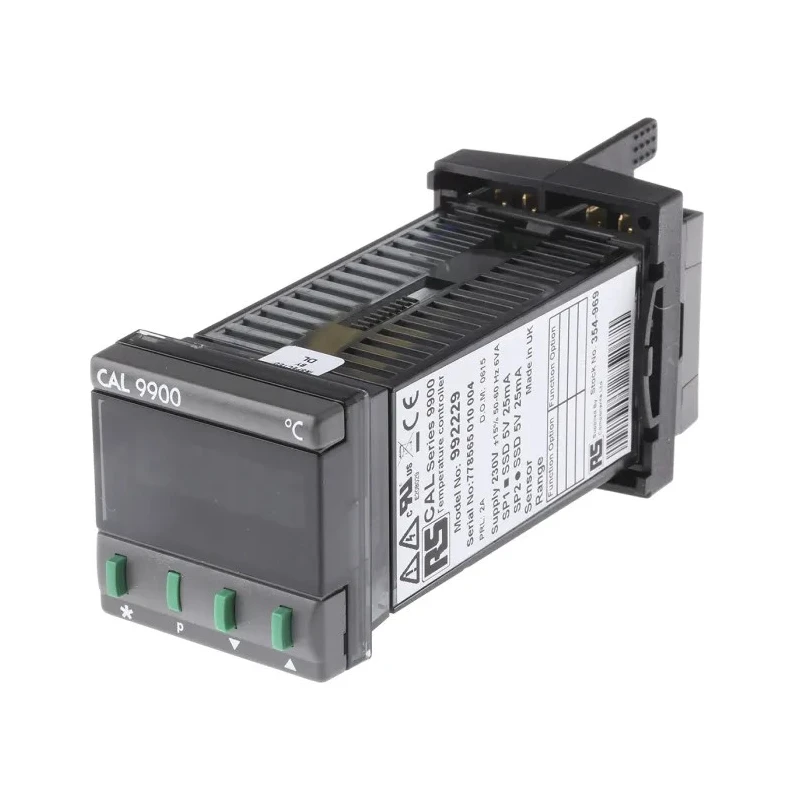

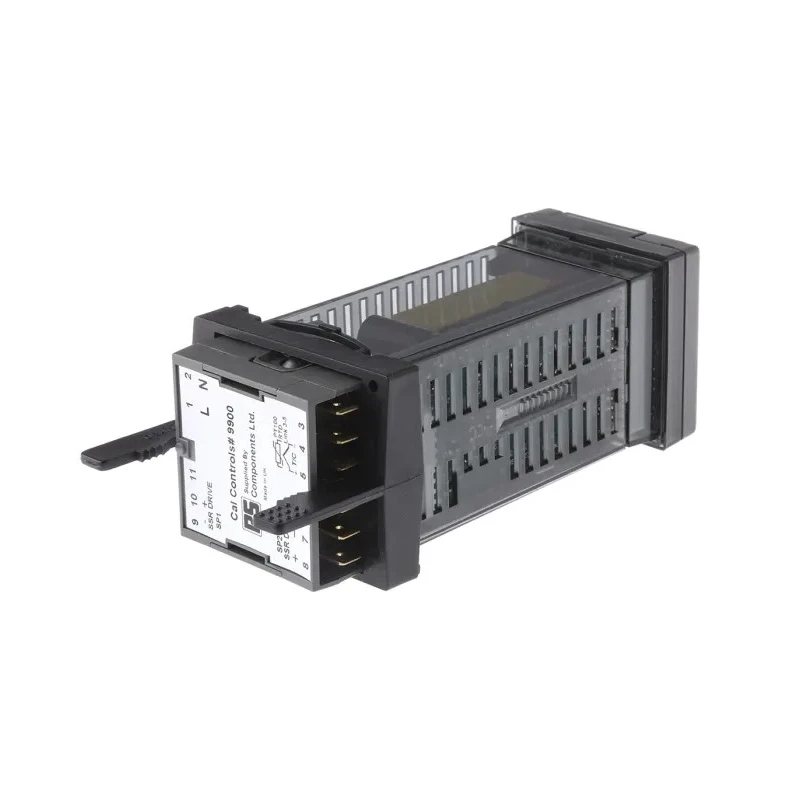

CAL PID Temperature Controller, 2 SSD Outputs, LED, 230V AC, 5A, Panel Mount 1/16 DIN 48x48mm 992.22C

Free Delivery in India | Lowest Global Shipping Charges

CAL PID Temperature Controller, 2 SSD Outputs, LED, 230V AC, 5A, Panel Mount 1/16 DIN 48x48mm 992.22C



Category Temperature Controller Brand CAL Condition New

Specifications

Country of Origin	United Kingdom
Display Type	LED
Brand	CAL
Length	48mm
Model	992.22C
IP Rating	IP54
Width	48mm
Output type	SSD
Series	9900
Maximum Operating Temperature	1800°C
Control Type	Temperature Control
Minimum Operating Temperature	-200°C
Maximum Current	5A
Number of outputs	2
Standards/Approvals	CE, UL
Maximum Supply Voltage	230V ac
Panel Depth	115mm

Key Features

PID controller ensures precise and stable temperature regulation.
Two solid-state digital (SSD) outputs support flexible heating and cooling applications.
Large LED display for clear temperature and status readings.
Suitable for panel mounting with standard 1/16 DIN dimensions of 48x48 mm.
Operates on 230V AC and provides up to 5A maximum current output.
Auto-tune and Push-to-Tune features simplify commissioning and setup.
IP54 rated for ingress protection against dust and water spray.
Wide operating temperature range from -200°C up to 1800°C.

Product Description

CAL 992.22C PID Temperature Controller provides advanced, microcontroller-based temperature control for demanding industrial and laboratory processes. Designed with two solid-state digital (SSD) outputs, this unit is highly versatile, supporting both heating and cooling applications.

As a PID controller, it delivers proportional, integral, and derivative control for precise regulation of process temperatures, far surpassing basic ON/OFF controllers. The CAL 9900 series features auto-tune and Push-to-Tune algorithms, allowing fast and accurate setup for varied applications. Auto-tune can be engaged during warm-up, while Push-to-Tune is effective even in challenging thermal conditions.

With its compact 1/16 DIN panel mount construction (48 x 48 mm), the controller is easy to install in standard DIN panels. It also accommodates DIN adapters for 1/8 and 1/4 DIN configurations, ensuring exceptional integration flexibility.

The controller operates on a 230V AC power supply and delivers a maximum output of 5A, suitable for a range of heating elements and process devices. The LED display is large and clear, providing straightforward visibility of process temperature and operational status, supported by four oversized control buttons for easy operation.

Built with an IP54 rating, the CAL 992.22C is robustly protected against dust and water spray, making it suitable for environments with average contamination and moisture exposure. Its wide temperature operating range, from -200°C to +1800°C, allows deployment in high and low temperature applications such as industrial heat treatment, scientific laboratory processes, HVAC systems, and manufacturing lines.

Panel depth is 115 mm; installation is straightforward. Dual output models can connect to an 11-pin base. The device offers reliability, ease of commissioning, and is backed by CE and UL standards compliance. The country of origin is the United Kingdom.

PID temperature control for superior process accuracy. Dual SSD outputs for flexible outputs and process management. Auto and manual tuning options for optimal controller performance in varied applications. Clear LED status display and ergonomic control interface for seamless monitoring and adjustment.

IP54-rated enclosure for industrial resilience. Ideal for industrial, laboratory, HVAC, and manufacturing process control. Browse EnvMart for more industrial Temperature Controllers and CAL brand offerings.
