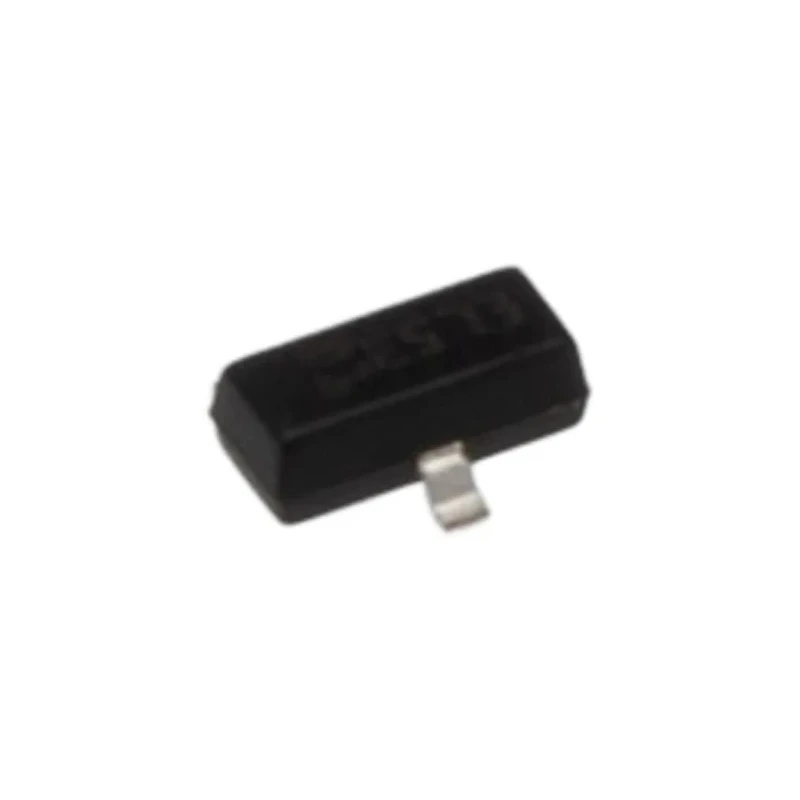

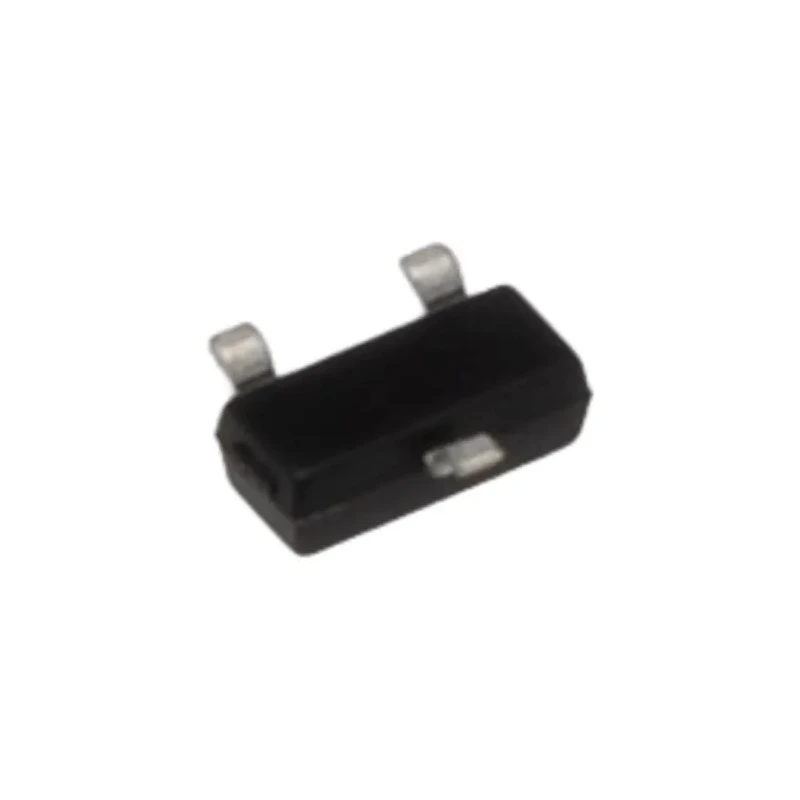

STMicroelectronics 2-Element Uni-Directional TVS Diode, 300 W, 3-Pin SOT-23 ESDA5V3L

STMicroelectronics ESDA5V3L is a high-performance 2-element uni-directional transient voltage suppression (TVS) diode designed to protect sensitive electronics from voltage spikes and electrostatic discharges. This diode is housed in a compact 3-pin SOT-23 surface mount package, featuring a common anode configuration suited for efficient PCB integration.

Offering a peak pulse power dissipation of 300 W, it is designed to handle large transient voltages effectively, safeguarding electronic components in industrial, commercial, and consumer electronics environments. The device operates over a wide temperature range of -40°C to 125°C, ensuring reliability in harsh environmental conditions.

The ESDA5V3L has a minimum breakdown voltage of 5.3 V and a maximum reverse stand-off voltage of 3 V, which facilitates precise voltage clamping to prevent circuit damage. Its maximum peak pulse current of 25 A allows absorption of high-energy surges and transients, typical in power and signal lines.

With a minimal reverse leakage current of 2 microamperes, the diode achieves efficient operation with low power consumption. Its compact dimensions - 2.9 mm length, 1.3 mm width, and 0.95 mm height - allow for space-saving designs on densely populated PCBs.

This product is ideal for use in electronic and electrical semiconductor applications requiring robust ESD protection but is not designed to meet automotive standards. The diode is tested using a 1 mA test current to ensure compliance with electrical characteristics and reliability.

ESDA series by STMicroelectronics is dedicated to transient voltage suppression, providing dependable protection solutions for industrial equipment, communication devices, and consumer electronics. The ESDA5V3L diode delivers consistent protection and supports design innovation with its reliable performance and compact form factor.

Set standards in electronic component protection with STMicroelectronics' ESDA5V3L diode available for use in design and manufacturing. Explore the complete range of high-quality TVS Diodes by STMicroelectronics and other semiconductor components at EnvMart for your industrial and professional needs.

This diode features a common anode configuration offering effective ESD protection. Minimum breakdown voltage of 5.3 V ensures reliable transient voltage clamping. Maximum peak pulse current capacity of 25 A enables robust handling of electrical surges.

Operates within a temperature range of -40°C to 125°C for versatile industrial applications. Compact dimensions of 2.9 mm length, 1.3 mm width, and 0.95 mm height suit surface mount PCB designs. Maximum reverse stand-off voltage rated at 3 V for stable operation under normal voltage conditions.

Maximum reverse leakage current as low as 2 µA minimizes unwanted power loss. ESD protection certified to handle high energy transients across electronic devices. Designed without automotive standards, suited for general electronic and electrical semiconductor protection.

Test current specified at 1 mA ensures standardized evaluation conditions.
