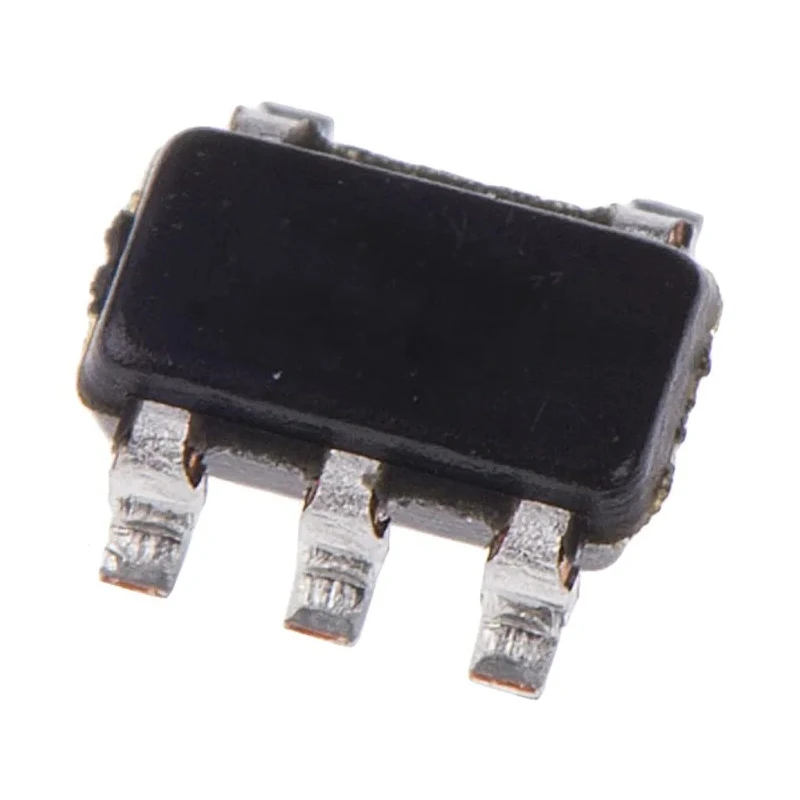

STMicroelectronics 4-Element Uni-Directional TVS Diode, 500 W, 5-Pin SOT-23 ESDA5V3SC5
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3mm |
| Model | ESDA5V3SC5 |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | ESDAxxSCx |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Number of Elements per Chip | 4 |
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 5.3V |
| Maximum Reverse Stand-off Voltage Vwm | 3V |
| Peak Pulse Power Dissipation Pppm | 500W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 22A |
| Maximum Reverse Leakage Current | 2μA |
Key Features
- Features a common anode diode configuration for effective transient voltage suppression.
- Minimum breakdown voltage of 5.3 V with a maximum reverse stand-off voltage of 3 V.
- Operates reliably between -40°C and 125°C with a peak pulse current capacity of 22 A.
- Compact SOT-23 surface-mount package measuring 3 mm length, 1.75 mm width, and 1.3 mm height.
- Designed specifically for protection against electrostatic discharge (ESD) and transient voltage spikes.
- Supports peak pulse power dissipation up to 500 W for transient events.
- Low maximum reverse leakage current of 2 μA minimizing standby losses.
Product Description
STMicroelectronics ESDA5V3SC5 is a high-performance 4-element uni-directional transient voltage suppression (TVS) diode rated for 500 W peak pulse power dissipation, housed in a compact 5-pin SOT-23 surface-mount package.
It features a common anode diode configuration optimized for protection against electrostatic discharge (ESD) and transient voltage spikes in sensitive electronic circuits. The device ensures robust performance with a minimum breakdown voltage of 5.3 V and a maximum reverse stand-off voltage of 3 V, making it suitable for low-voltage applications.
This TVS diode can handle a maximum peak pulse current of 22 A and operates reliably across a temperature range from -40°C to 125°C, catering to demanding industrial and electronic environments.
The compact SOT-23 package with dimensions of 3 mm length, 1.75 mm width, and 1.3 mm height enables efficient space-saving PCB layout and surface mounting for automated manufacturing processes.
Typical applications include protection of low-voltage electronic devices and sensitive ICs against voltage transients caused by ESD events, power surges, and other transient disturbances, commonly found in telecommunications, computing, automotive, and consumer electronics sectors.
Common anode diode configuration for effective ESD suppression. Supports peak pulse power dissipation up to 500 W for transient events. Wide operating temperature range from -40°C to 125°C for robust industrial use. Compact 5-pin SOT-23 surface-mount package for space-efficient PCB design.
Low maximum reverse leakage current of 2 μA minimizing standby losses. Discover more components in the Semiconductor TVS Diode category on EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ESDA5V3SC5 has a peak pulse power dissipation rating of 500 W for transient events.
The minimum breakdown voltage for this model is 5.3 V.
The maximum reverse stand-off voltage of this diode is 3 V.
It can handle a maximum peak pulse current of 22 A.
This model operates reliably between -40°C and 125°C.
The SOT-23 package measures 3 mm in length, 1.75 mm in width, and 1.3 mm in height.
It features a common anode diode configuration.
The maximum reverse leakage current is 2 μA, which helps minimize standby losses.
This diode supports surface mounting.
It is designed for protection against electrostatic discharge (ESD) and transient voltage spikes in low-voltage electronic devices.
The chip contains 4 elements per chip.
This model belongs to the ESDAxxSCx series.
