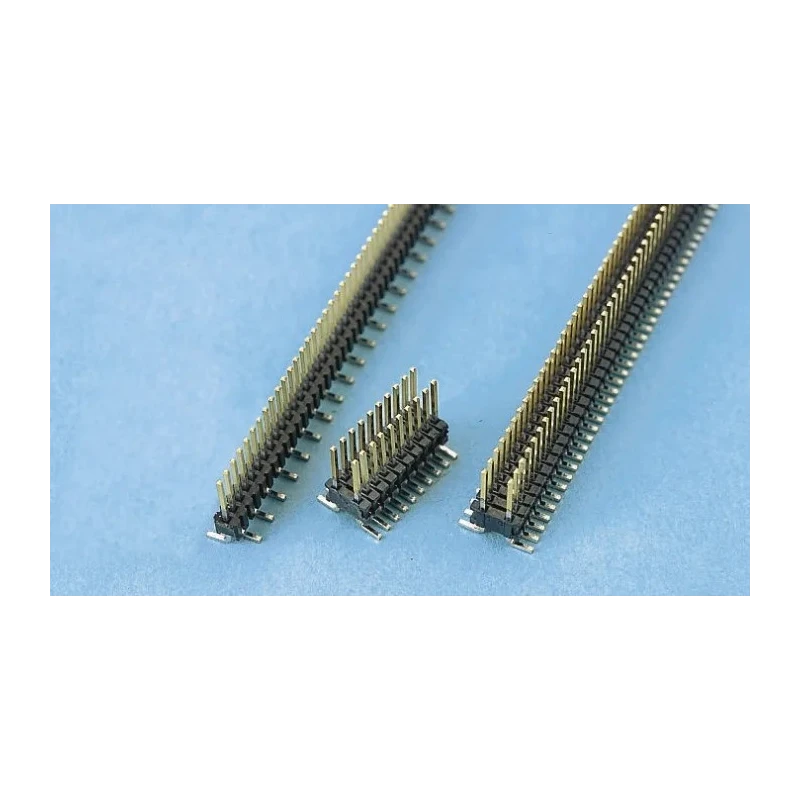

Samtec FTR Series Straight Surface Pin Header, 20 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded FTR-110-01-S-D

Samtec FTR-110-01-S-D is a high-quality straight surface pin header from the FTR series, featuring 20 contacts with a 1.27 mm pitch arranged in 2 rows. This unshrouded pin header is engineered for reliable board-to-board connections in printed circuit board assemblies.

The pin header uses a robust polymer housing that offers strength and electrical insulation suited for various industrial and commercial electronics applications. The phosphor bronze contacts are plated with gold, ensuring low contact resistance and excellent durability under mechanical and environmental stresses.

This SMT (surface mount technology) header supports a current rating of 1 ampere and operates reliably within a temperature range of -55°C to 125°C, making it suitable for harsh conditions and extended operational periods. The straight orientation and male contact type simplify integration with mating connectors in electronic and communication devices.

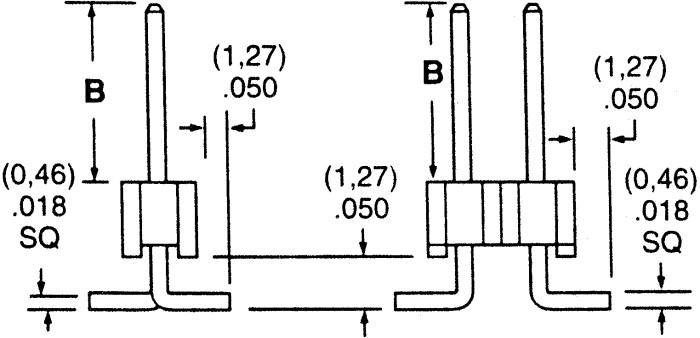

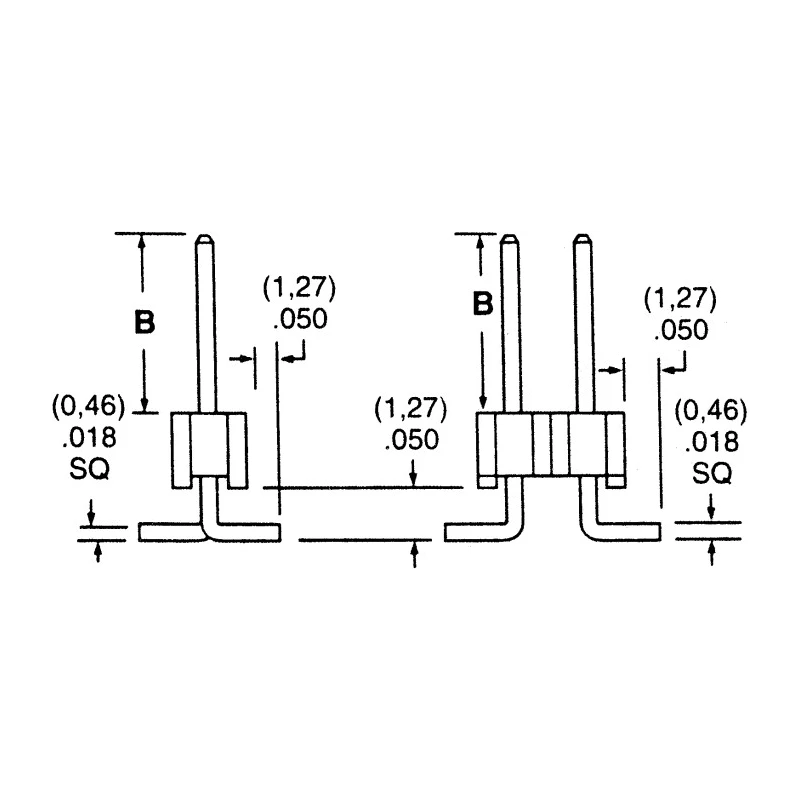

The mating pin length of 5.84 mm offers adequate insertion depth for secure electrical contact. The unshrouded configuration provides accessibility during assembly and inspection but requires cautious handling to prevent damage to pins.

This pin header is ideal for use in industrial electronics manufacturing, telecommunications, computing equipment, and other applications requiring compact and dependable PCB interconnect systems. It facilitates efficient signal and power transfer between board assemblies.

This pin header has a current rating of 1A suitable for low power applications. Constructed with a polymer housing ensuring durability and insulation. Contacts are made from phosphor bronze with gold plating for excellent conductivity and corrosion resistance.

Designed for surface mount technology (SMT) using a solder termination type. Operating temperature range from -55°C to 125°C accommodates various industrial environments. Features a straight orientation with male contact gender and a mating pin length of 5.84 mm.

Compatible with board-to-board connector systems providing efficient PCB interconnect solutions. Unshrouded design facilitates easy inspection and soldering but requires careful handling to avoid damage. Ideal for electronic component assembly in industrial, manufacturing, and electronics development sectors.

Designed as per no specific standards/approvals but meets typical industry requirements for PCB Headers. Explore more electronics components and PCB connectivity solutions in the Electronics Components category on EnvMart for industrial and professional use.
