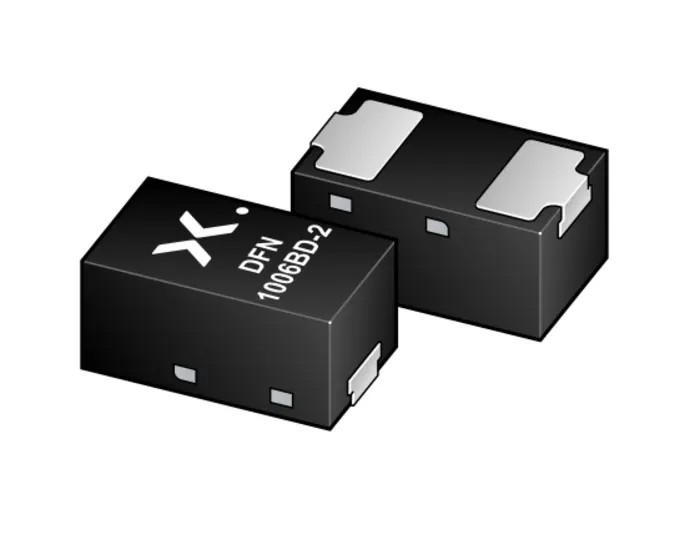

Nexperia Zener Diode 47 V Nominal Voltage 365 mW Power Dissipation Surface Mount 2-Pin DFN1006BD-2 BZX8850S-C47YL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX8850S-C47YL |
| Mount Type | Surface |
| Series | BZX8850S |
| Maximum Operating Temperature | 150°C |
| Working voltage range | nominal 1.8 V to 75 V |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 50μA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 47V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 375Ω |
| Typical Voltage Temperature Coefficient | 42mV/K |
Key Features
- The device operates with a low test current of 50 μA, ideal for low bias and battery-powered applications.
- It has a maximum reverse leakage current of 50 nA, ensuring low leakage in the off state.
- The Zener diode is suitable for operating temperatures between -55°C and 150°C.
- Constructed with side-wettable flanks for improved soldering reliability on PCB assemblies.
- Automotive standard AEC-Q101 qualified for high reliability in automotive and industrial contexts.
- The ultra-small plastic package dimensions are 1 mm length and 0.47 mm height for space-saving layouts.
- Typical voltage temperature coefficient is 42 mV/K, ensuring stable voltage regulation over temperature variations.
Product Description
Nexperia BZX8850S-C47YL is a high-reliability Zener diode designed for voltage regulation in electronic circuits requiring precise control and low power dissipation. It comes in an ultra-small surface mount DFN1006BD-2 package with dimensions of 1 mm x 0.47 mm, optimized for space-constrained PCB designs.
This Zener diode has a nominal voltage of 47 V and a maximum power dissipation of 365 mW, suitable for low-current voltage regulation functions. It supports a test current of 50 μA, ensuring it operates efficiently with minimal power loss, making it ideal for battery-powered and portable applications.
The device's tolerance is specified at ±5%, and it offers stable performance across a wide temperature range from -55°C to 150°C. The maximum reverse leakage current is limited to 50 nA, ensuring low leakage under reverse bias conditions. It meets the automotive-grade AEC-Q101 standard, ensuring robustness and reliability for automotive and industrial environments.
The side-wettable flanks of the plastic package aid in manufacturing by improving solder joint reliability in automated assembly processes. Nominal Zener voltage: 47 V with ±5% tolerance. Maximum power dissipation: 365 mW.
Operating temperature range: -55°C to 150°C. Low test current: 50 μA, suitable for low bias circuits. Automotive compliant with AEC-Q101. Package: DFN1006BD-2, 2-pin surface mount. Typical temperature coefficient: 42 mV/K.
This Zener diode is widely applicable in industrial electronics, automotive systems, portable instrumentation, and power supply regulation. Its small footprint and high precision make it essential for dense electronic assemblies requiring reliable voltage regulation.
For circuit designers and engineers, this diode supports efficient design in semiconductor voltage regulation applications with the trusted quality and performance of Nexperia components.
Explore further semiconductor and diode solutions in the Electronics & Electricals category at EnvMart for your assembly and manufacturing needs.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this model is 47 V, with a tolerance of ±5%.
This Zener diode has a maximum power dissipation of 365 mW.
It operates within a temperature range of -55°C to 150°C.
The maximum reverse leakage current is limited to 50 nA.
The package dimensions are 1 mm in length and 0.47 mm in height.
The test current for this model is 50 μA, making it suitable for low bias applications.
Yes, it is compliant with the automotive standard AEC-Q101, ensuring high reliability for automotive applications.
The typical voltage temperature coefficient is 42 mV/K, which helps maintain stable voltage regulation across temperature variations.
This model features a 2-pin configuration.
It uses a single diode configuration, suitable for various voltage regulation applications.
The maximum Zener impedance is 375 Ω.
It is widely applicable in industrial electronics, automotive systems, portable instrumentation, and power supply regulation.
