| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX8850S-C11-QYL |
| Mount Type | Surface |
| Series | BZX8850S |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 50μA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 11V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 150Ω |
| Typical Voltage Temperature Coefficient | 5.4mV/K |

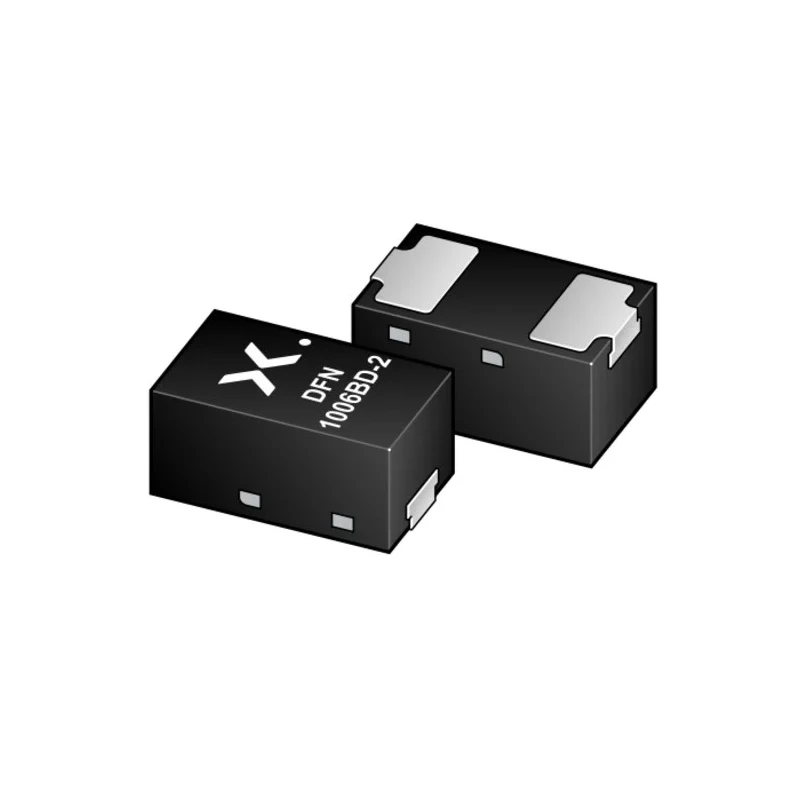

Nexperia BZX8850S-C11-QYL is a single configuration zener diode designed for voltage regulation, with a nominal zener voltage of 11 volts and power dissipation of 365 milliwatts. Packaged in an ultra-small DFN1006BD-2 surface mount device with 2 pins, this diode is well suited for compact electronic designs, especially portable and battery-powered applications.
The device operates effectively within a temperature range of -55°C to 150°C, making it suitable for harsh automotive environments as it meets the stringent AEC-Q101 standard. Designed for low bias conditions, it features a test current of 50 microamperes and a maximum reverse leakage current of 100 nanoamperes, ensuring minimal energy loss.
Its maximum zener impedance is 150 ohms, supporting precise voltage regulation with a typical voltage temperature coefficient of 5.4 mV/K. The diode's plastic leadless surface mount package offers side-wettable flanks for improved solder joint reliability and is optimized for automated assembly processes.
Common applications include automotive, industrial, and electronic circuit protection, where stable voltage reference and low power consumption are critical. The device is suitable for use in industrial, automotive electronics, and portable electronic equipment.
Single diode configuration provides consistent zener voltage regulation. Nominal 11 V zener voltage with ±5% tolerance ensures accuracy. Surface mount DFN1006BD-2 package facilitates compact PCB layouts. Low test current operation reduces power consumption in portable devices.
Wide operational temperature range from -55°C to 150°C supports rugged environments. Maximum power dissipation of 365 mW suits low power applications. Compliant with automotive standard AEC-Q101 for reliability. Plastic package with side-wettable flanks improves solder connection.
For detailed technical documents, including 3D models, schematics, and footprints, users are encouraged to refer to Nexperia design resources. The BZX8850S-C11-QYL diode is a high-quality component designed to meet demanding industrial and automotive needs.
