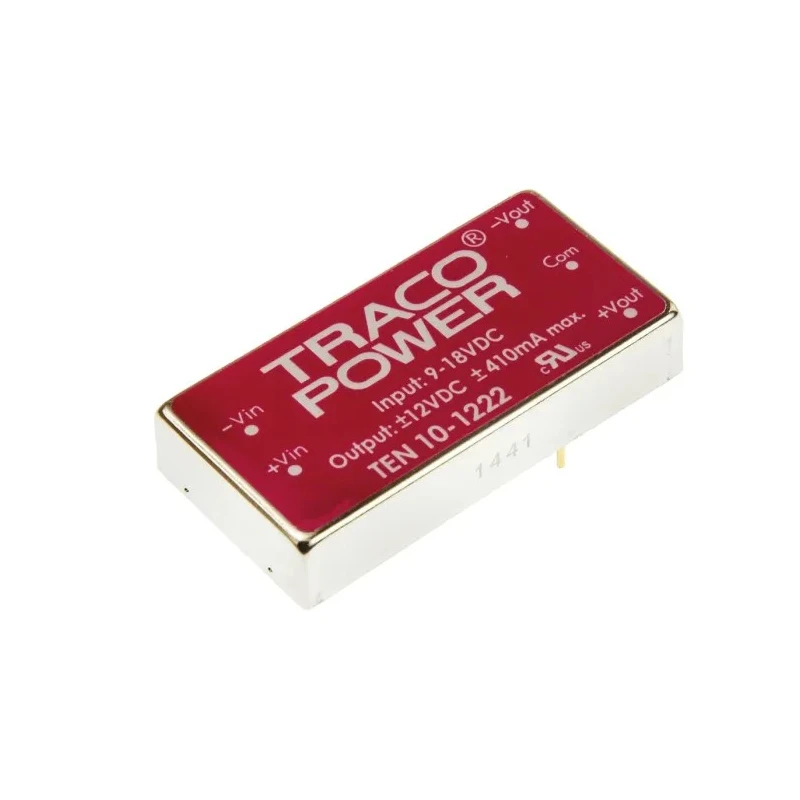

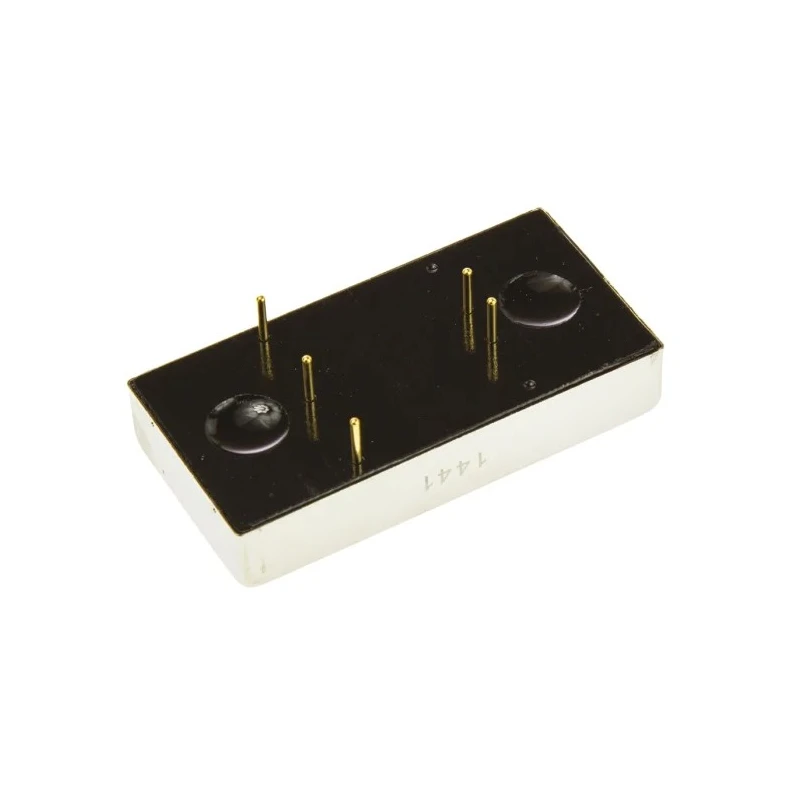

TRACOPOWER 10W Regulated Isolated DC-DC Converter, 12V dc 415mA, 18V dc Input, PCB Mount, 85°C Max Temp, TEN 10-1222
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 10 DC/DC Converter, 12V dc/ 415 mA |
| Brand | TRACOPOWER |
| Efficiency | 81% |
| Length | 50.8mm |
| Model | TEN 10-1222 |
| Depth | 10.2mm |
| Width | 25.4mm |
| Mount Type | PCB |
| Series | TEN 10 |
| Maximum Operating Temperature | 85°C |
| Package Type | Shielded Metal Case with Insulated Baseplate |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 2 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 5 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 415mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Output Voltage 2 | -12V dc |
| Wide 2 | 1 input range |
Key Features
- Supports dual input voltage range of 9V to 18V dc.
- Provides isolated outputs with 1.5kV dc isolation voltage.
- Compact shielded metal case with insulated baseplate for EMI reduction.
- Achieves 81% efficiency with built-in EMI filter compliant to EN 5022 class A.
- Operates over a temperature range of -40°C to +85°C.
- Incorporates continuous short circuit protection.
- Employs Surface Mount Device technology with durable ceramic chip capacitors.
Product Description
TRACOPOWER TEN 10-1222 is a 10W regulated isolated DC-DC converter providing a 12V dc output at 415mA current. Featuring dual input voltages from 9V to 18V dc, this PCB mount converter is housed in a shielded metal case with an insulated baseplate to reduce electromagnetic interference and enhance reliability in electronic assemblies. Designed to operate over a wide temperature range of -40°C to 85°C, it is suitable for demanding industrial applications, including communication systems and instrumentation.
The device achieves an efficiency of 81%, facilitated by a built-in EMI filter compliant with EN 5022 class A and FCC Level A without requiring external components. It incorporates continuous short circuit protection ensuring safe operation in harsh environments. The converter utilizes Surface Mount Device (SMD) technology with ceramic chip capacitors for compactness and performance.
Not recommended for new designs, this converter remains widely used in battery-operated equipment, distributed power architectures, and industrial electronics requiring stable isolated power supplies. Its 1.5kV dc isolation voltage provides safety between input and output, essential for sensitive electronic circuits and system protection.
This DC-DC converter supports a wide 2:1 input voltage ratio from 9V to 18V dc. It offers dual regulated outputs including a positive 12V and negative 12V dc line for flexible power needs. The shielded metal case with insulated baseplate strengthens EMI compliance and mechanical protection.
MTBF rating of 1,000,000 hours attests to its high reliability in long-term applications. Compact size with dimensions: Length 50.8mm, Width 25.4mm, Depth 10.2mm enables use in space-constrained designs. This product is manufactured in Taiwan Province of China and is well suited for industrial, communication, laboratory, and electronic equipment power supply needs.
Explore the full range of TRACOPOWER voltage converters and DC-DC converters on EnvMart for reliable power conversion solutions.
Explore more products in our DC/DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 12V dc at a current of 415mA.
It supports a dual input voltage range from 9V to 18V dc.
The maximum operating temperature is 85°C.
It features an isolation voltage of 1.5kV dc, ensuring safety between input and output.
This model achieves an efficiency of 81%.
The dimensions are 50.8mm in length, 25.4mm in width, and 10.2mm in depth.
It has two outputs: a positive 12V dc line and a negative 12V dc line.
This unit is designed for PCB mounting.
It incorporates continuous short circuit protection for safe operation.
The MTBF rating is 1,000,000 hours, indicating high reliability in long-term applications.
This product is manufactured in Taiwan Province of China.
