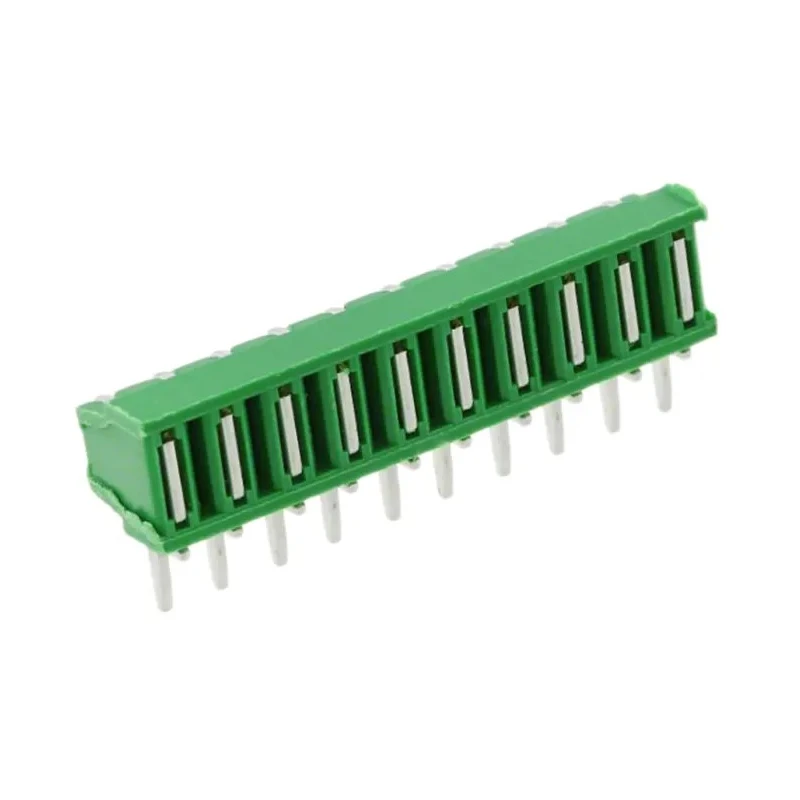

TE Connectivity 10-Way IDC Connector Female Through Hole 2.5mm Pitch 7A Right Angle 1-5164711-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250.0, 300.0V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Brass |
| Series | Mini-Match |
| Termination Type | IDC |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- This IDC connector is designed for a single row of 10 female contacts.
- Mount type is through hole with unshrouded connector design.
- Contact plating comprises tin over nickel ensuring reliable connectivity.
- The connector operates within a temperature range of -40°C to 85°C.
- Operates at voltages of 250 to 300V AC with a rated current of 7 amps.
- Built with brass contacts and polyethylene terephthalate housing for durability.
- Suitable for PCB connections requiring Mini-Match series connectors with 2.5mm pitch.
- Right angle orientation supports space-saving PCB layouts.
Product Description
TE Connectivity 1-5164711-0 is a high-quality 10-way IDC connector designed for female contacts with through hole mounting and a pitch of 2.5mm. It supports a current rating of 7 amps and voltages from 250V to 300V AC, making it suitable for various electronic applications including PCB connections in commercial and industrial equipment.
This connector features a right angle orientation which optimizes the printed circuit board space by allowing connections at a 90-degree angle. Its unshrouded design allows easy access to contacts while maintaining reliable insertion force.
Contact plating of tin over nickel enhances corrosion resistance and reliable electrical performance. The use of brass for contact material paired with polyethylene terephthalate housing ensures robust mechanical strength and long-term durability under operating temperatures ranging from -40°C to 85°C.
The connector belongs to the Mini-Match series known for compact board-to-board connection solutions. This product is ideal for applications such as computer equipment, home entertainment systems, remote control transmitters, and measuring instruments where reliable board connections are crucial.
This IDC connector is designed for a single row of 10 female contacts. Mount type is through hole with unshrouded connector design. Contact plating comprises tin over nickel ensuring reliable connectivity. The connector operates within a temperature range of -40°C to 85°C.
Operates at voltages of 250 to 300V AC with a rated current of 7 amps. Built with brass contacts and polyethylene terephthalate housing for durability. Suitable for PCB connections requiring Mini-Match series connectors with 2.5mm pitch.
Right angle orientation supports space-saving PCB layouts. Manufactured in India ensuring compliance with quality standards. This product supports industrial and commercial electronics manufacturing applications, particularly in compact PCB assemblies requiring robust and reliable IDC connectors.
For further PCB component solutions, explore the TE Connectivity brand and IDC Connector selections available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IDC connector has a rated current of 7 amps.
It operates at voltages ranging from 250V to 300V AC.
This connector operates within a temperature range of -40°C to 85°C.
The pitch size of the contacts is 2.5mm.
This model features a total of 10 female contacts.
It is built with brass contacts and a polyethylene terephthalate housing.
The connector has a right angle orientation, which supports space-saving PCB layouts.
This connector uses a through hole mounting type.
The connector design is unshrouded, allowing easy access to contacts.
This model belongs to the Mini-Match series, known for compact board-to-board connection solutions.
This product is manufactured in India, ensuring compliance with quality standards.
It is suitable for various electronic applications, including computer equipment and home entertainment systems.
