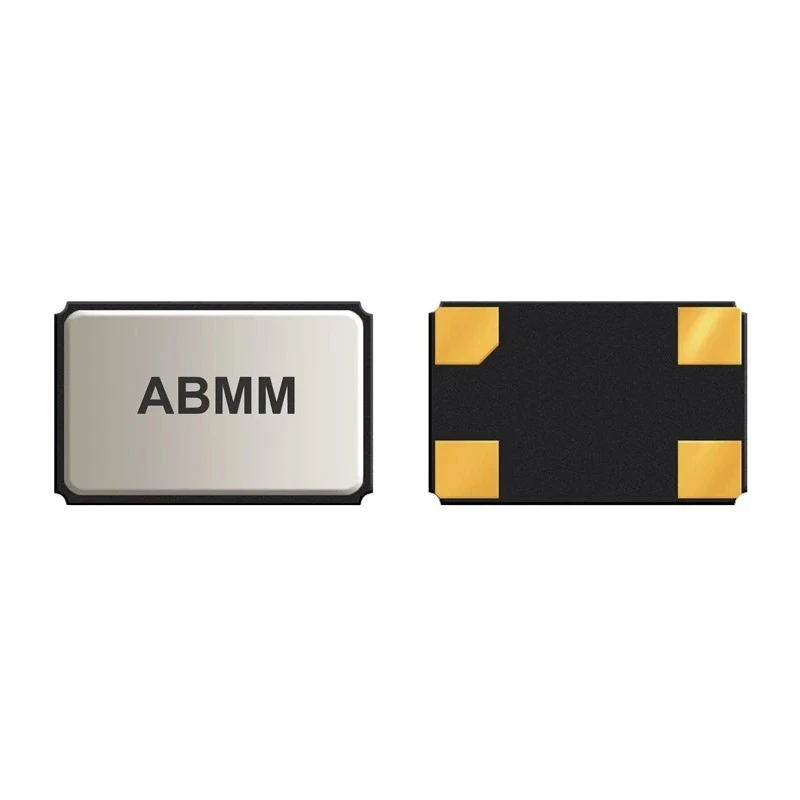

Abracon 14.7456 MHz Crystal Unit 50 ppm Surface Mount 4-Pin 1.3 mm Height 7 mm Length 5 mm Width ABMM-14.7456MHZ-B2-T

Abracon ABMM-14.7456MHZ-B2-T Crystal Unit offers a stable 14.7456 MHz frequency with a tight ±50 ppm tolerance and frequency stability, ideal for high precision electronic applications.

This surface mount crystal unit features a low-profile design with 1.3 mm maximum height and compact footprint measuring 7 mm in length and 5 mm in width, providing versatile PCB mounting options.

Designed with a 4-pin configuration and load capacitance of 18 pF, it supports microprocessor and communication equipment demanding accurate frequency references.

The crystal unit operates reliably within a temperature range of -10°C to 60°C, with an equivalent series resistance of 50 Ω, ensuring stable oscillation performance and minimal signal loss.

Manufactured to meet RoHS standards, this component is environmentally friendly and supplied in tape and reel packaging for efficient automated assembly processes.

Typical industrial applications include use in computers, modems, microprocessors, communication devices, and test instrumentation, offering reliable timing and frequency control critical to system performance.

Standard frequency of 14.7456 MHz with ±50 ppm frequency tolerance and stability. Surface mount package with 4-pin configuration for easy PCB integration. Compact dimensions: 7 mm length, 5 mm width, and 1.3 mm height. Load capacitance rating of 18 pF suitable for microprocessor applications.

Operating temperature range from -10°C to 60°C ensuring reliable performance. Equivalent Series Resistance (ESR) of 50 Ω for stable oscillation. RoHS compliant, environmental friendly with tape and reel packaging. Ideal for use in computers, modems, communication devices, and test equipment.
