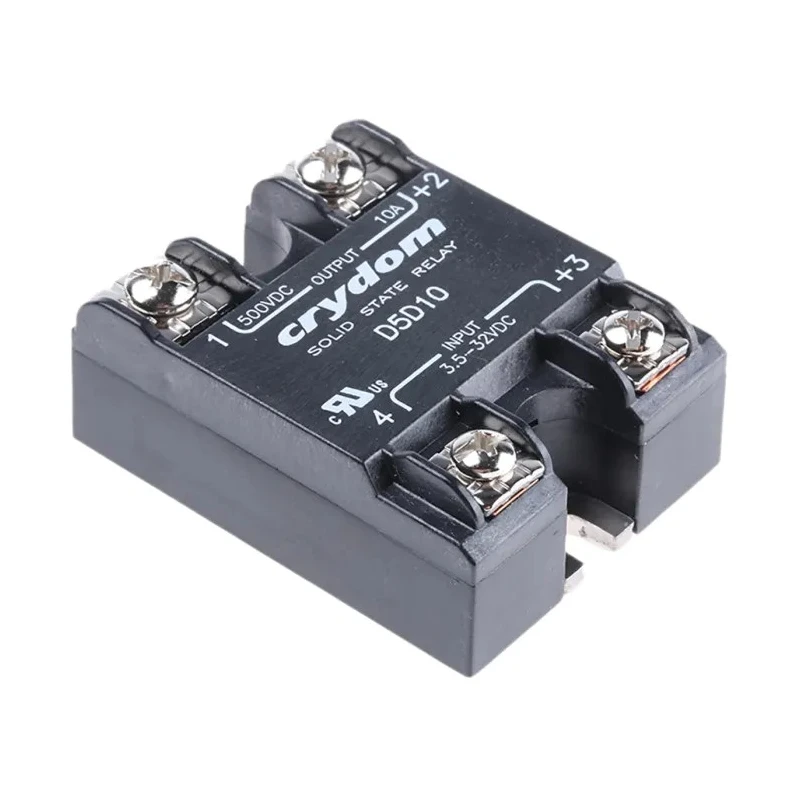

Crydom 1-DC Series Solid State Relay 10A Load Panel Mount 385V DC Load 32V Control D5D10
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 23mm |
| Length | 45.7mm |
| Model | D5D10 |
| IP Rating | IP20 |
| Width | 22.6mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | 1-DC |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 10A |
| Standards/Approvals | UR, RoHS, CSA |
| Maximum Load Voltage | 385V dc |
| Minimum Load Voltage | 1V dc |
| Minimum Control Voltage | 3.5V |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 0.3mA |
| RS PRO Metal Oxide, Silicone Oil Thermal Grease, 2.9 W/mK, TubeBrand | RS PRO |
Key Features
- The relay operates with a control voltage range from 3.5 V to 32 V.
- It supports zero cross switching function for efficient performance.
- Built with SCR output type ensuring stable current control.
- The unit is panel mountable with screw terminals for secure installation.
- Compact dimensions allow installation in constrained spaces.
- IP20 rated for protection against solid objects and limited protection against contact.
- Suitable for industrial and automation applications within a temperature range of -20°C to 80°C.
- Low off-state leakage current of 0.3 mA ensures minimal power loss.
Product Description
Crydom D5D10 1-DC Series Solid State Relay is engineered for industrial and automation use, providing reliable switching and control of DC loads up to 10 amperes with a maximum load voltage of 385 V DC.
This solid-state relay features a screw terminal mount type, facilitating secure and easy panel installation. Its compact dimensions of 45.7 mm length, 22.6 mm width, and 23 mm height allow fitting in tight spaces common in control panels and electronic assemblies.
Operating with a control voltage between 3.5 V and 32 V, it supports zero cross switching function to minimize electrical noise and enhance switching performance. The SCR output delivers efficient current control, with an off-state leakage current of only 0.3 mA, reducing power loss during non-operation.
Designed to function reliably in harsh environments, it supports operating temperatures from -20°C to 80°C and features an IP20 rating that provides solid object ingress protection. The relay housing includes anti-rotation barriers to prevent shifting under vibration, ensuring long-term operational stability.
Manufactured under stringent standards including UR, RoHS, and CSA approvals, this Crydom solid state relay is suitable for applications in industrial automation, power control, heating systems, and lighting management where silent, maintenance-free switching is critical.
The relay supports a wide DC load voltage range of 1 V to 385 V and control voltages from 3.5 V to 32 V. Panel mount design with screw terminals allows secure and stable installation. Compact size facilitates use in tight spaces within control panels.
Zero cross switching reduces electrical noise and increases relay lifespan. IP20 rating offers protection against dust and contact. Compliance with RoHS, CSA, and UR standards guarantees safety and quality.
EnvMart provides this Crydom solid state relay product portfolio for reliable industrial and automation control solutions. Explore related Solid State Relays and control components in the Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 10A.
It operates with a control voltage range from 3.5V to 32V.
This relay can handle a maximum load voltage of 385V DC.
The relay features a panel mount design with screw terminals for secure installation.
It is designed to operate within a temperature range of -20°C to 80°C.
The off-state leakage current is 0.3 mA, which helps minimize power loss during non-operation.
Yes, this relay supports zero cross switching to minimize electrical noise and enhance switching performance.

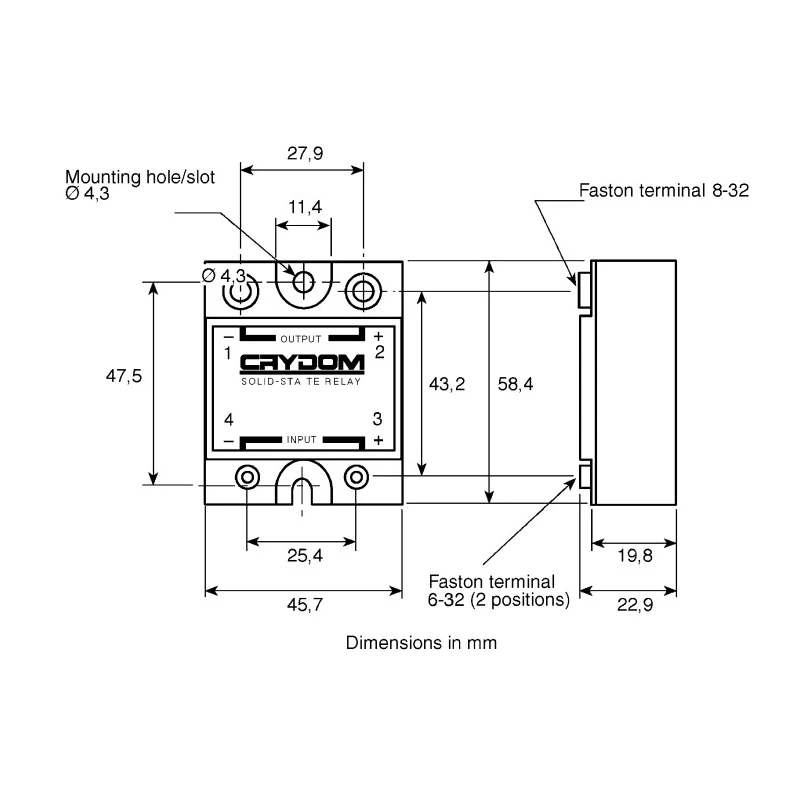

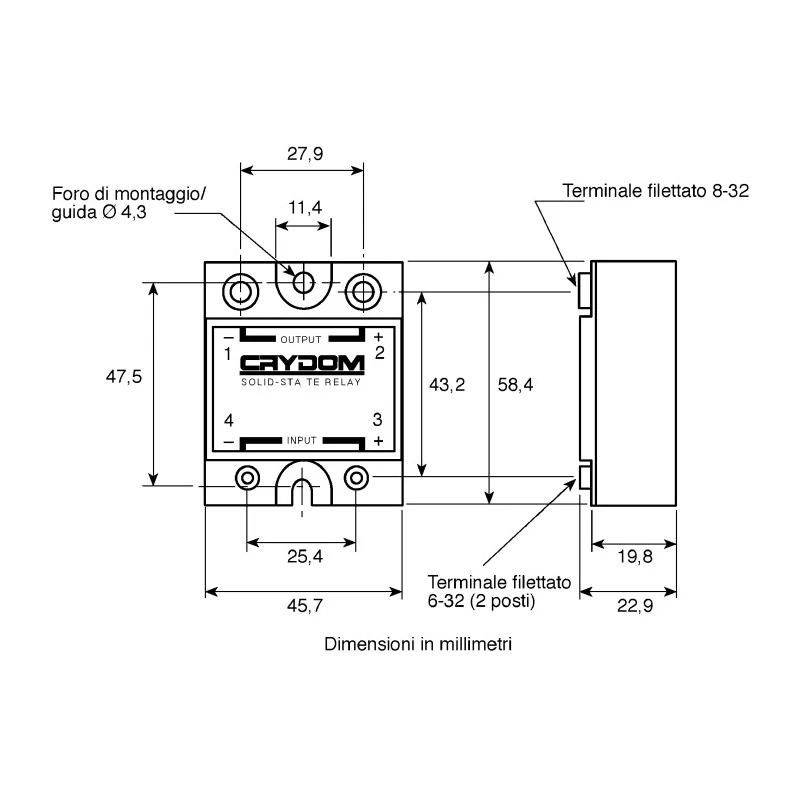

The dimensions are 45.7 mm in length, 22.6 mm in width, and 23 mm in height.
It complies with UR, RoHS, and CSA standards.
The output type of this solid state relay is SCR (Silicon Controlled Rectifier).
This relay is suitable for industrial automation, power control, heating systems, and lighting management.
The relay has an IP20 rating, providing protection against solid objects and limited contact protection.
