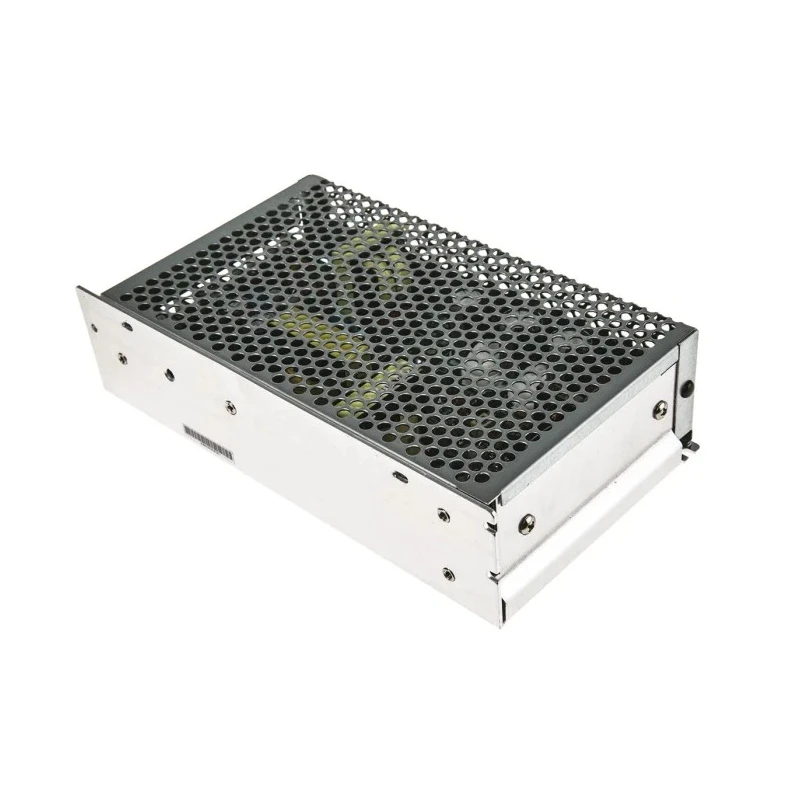

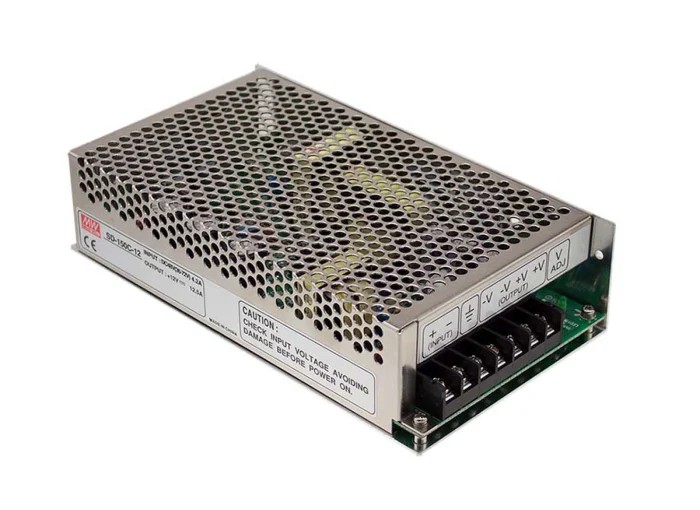

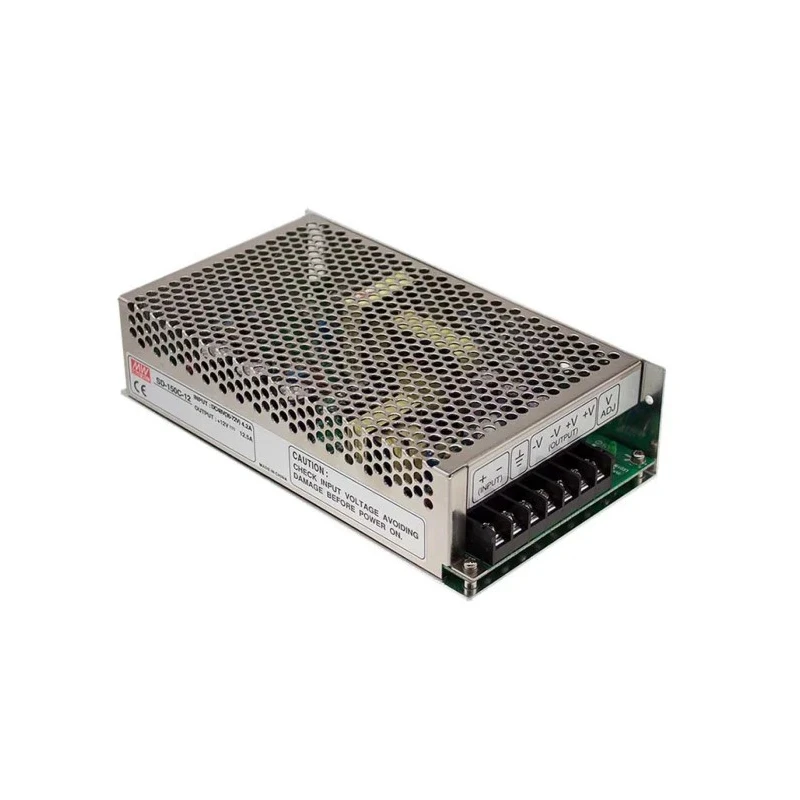

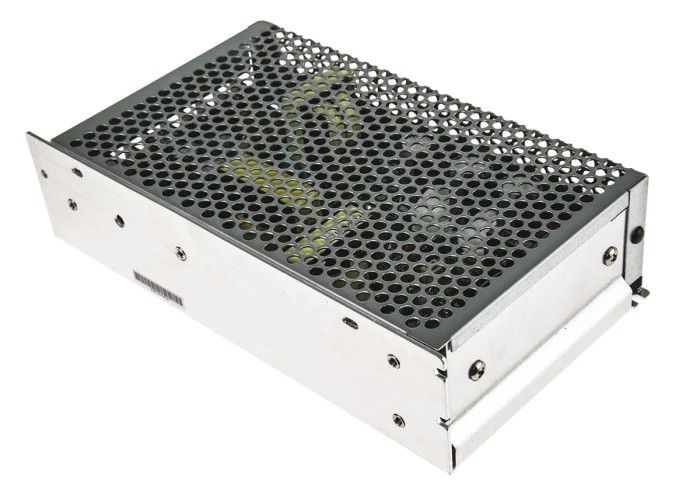

MEAN WELL DC/DC Converter Single Output 12V DC, 150W, 2:1 Input Voltage Range, Chassis Mount SD-150C-12

MEAN WELL SD-150C-12 model is a single output, enclosed, regulated, and isolated DC-DC converter delivering 12V DC output voltage with a maximum power of 150W. It features a wide 2:1 input voltage range from 36V to 72V DC suitable for multiple DC power supplies and battery sources.

This converter employs a chassis mount design for robust mounting within industrial control enclosures. It supports reliable operation across a temperature range of -10°C to 60°C and complies with EN/IEC standards for electromagnetic compatibility.

Safety and durability are ensured by 1.5kV AC isolation between input and output, and protective circuitry including short circuit, overload, and overvoltage protections. The device features a ripple and noise level of 120mV Pk-Pk and an output voltage adjustment range up to 21V DC.

With a compact form factor measuring 199mm in length, 110mm in width, and 50mm in depth, and a weight of 860g, the SD-150C-12 balances performance with space efficiency. It offers a high MTBF of 289900 hours, ensuring long-term reliability in industrial, manufacturing, telecommunications, and laboratory power applications.

The SD-150 series supports easy installation via screw terminals and includes an LED power-on indicator to provide operational status at a glance. This product is ideal for use in industrial automation, instrumentation, and other DC power supply conversion scenarios where stable and isolated DC output is critical.

Offers a wide input voltage range from 36V to 72V DC ensuring flexible power source compatibility. Single isolated output delivers regulated 12V DC at up to 12.5A output current with adjustment range up to 21V DC. Chassis mount type facilitates easy and secure installation in control panels and industrial equipment.

Features built-in protections including short circuit, overload, and overvoltage to ensure reliable operation. Compact dimensions and sturdy design with length 199mm, width 110mm, and depth 50mm allow space-efficient integration.

High reliability with a Mean Time Between Failures (MTBF) of 289900 hours for extended operational life. Operating temperature range from -10°C to 60°C supports performance across various environmental conditions. Electromagnetic compatibility compliant with EN 55022 Class B ensuring reduced interference.

1.5kV AC input/output isolation provides safety against electrical faults and noise. Efficiency rating of 79% optimizes power usage and heat generation. Explore more MEAN WELL DC/DC Converters and industrial power supplies on EnvMart for reliable and efficient power solutions.
