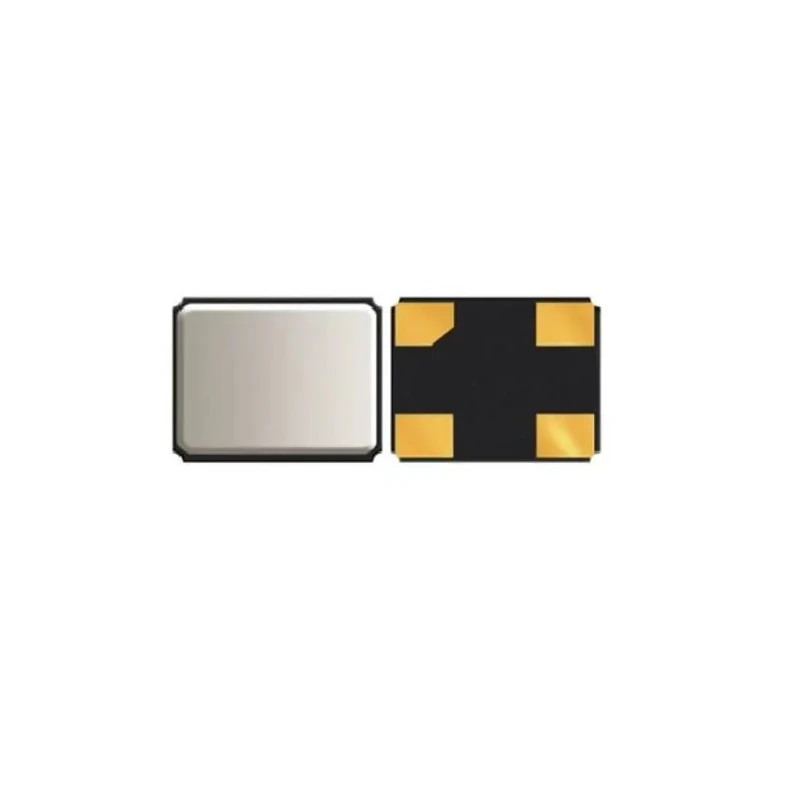

Abracon 16 MHz Surface Mount Crystal ±10 ppm Load Capacitance 8pF 4-Pin ABM11W Model

The Abracon ABM11W-16.0000MHZ-8-K1Z-T3 is a high precision 16 MHz quartz crystal designed for surface mount applications where low profile and reliable frequency stability are critical. Featuring a 4-pin ABM11W package, this crystal provides a frequency tolerance and stability of ±10 ppm, ensuring accurate timing for advanced electronics.

Its low height of 0.5 mm and small footprint of 2 mm by 1.6 mm make it ideally suited for space-constrained designs such as Bluetooth and Bluetooth low energy modules, wireless communication devices, ultra low power microcontrollers, and wearable technology. The crystal demonstrates excellent series resistance of 200 Ω and a load capacitance of 8 pF, supporting stable oscillation in various circuit conditions.

Engineered to operate within temperature extremes of -40°C to 125°C, the ABM11W series assures long-term reliability for both commercial and industrial environments. Additionally, the component is RoHS compliant, meeting environmental regulations for hazardous substances.

This crystal unit is seam sealed which enhances durability and performance against environmental stressors, making it a solid choice for IoT and other modern embedded system applications requiring precise, stable clock generation.

Standard frequency 16 MHz with ±10 ppm tolerance. Surface mount ABM11W package with 4 pins. Compact dimensions: 2 mm length, 1.6 mm width, 0.5 mm height. Load capacitance 8 pF and series resistance 200 Ω optimized for energy saving applications.

Operating temperature range from -40°C to 125°C ensures wide usability. RoHS compliant for safe deployment in global markets. Ideal for Bluetooth, wearable, and low power IoT devices requiring precise timing. Explore a wide range of electronics components including crystals and oscillators on EnvMart to meet your design and manufacturing requirements.
