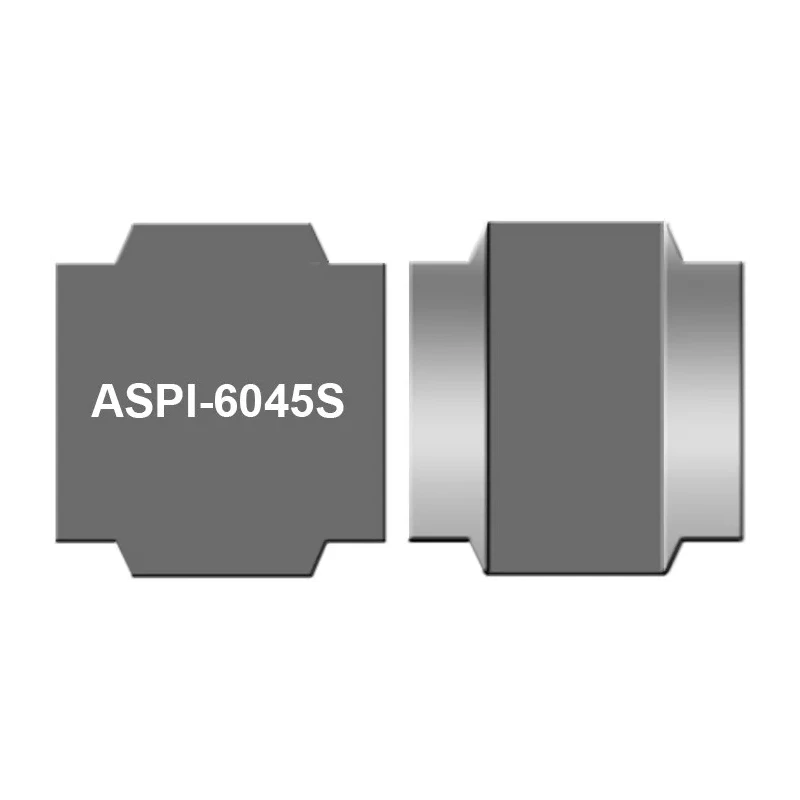

Abracon Shielded Surface Mount Inductor with Ferrite Core, 820 nH, Flat Wire Winding, ±30 % Tolerance, 5.9 ASPI-6045S-R82N-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 4.5mm |
| Length | 6mm |
| Model | ASPI-6045S-R82N-T |
| Depth | 4.5mm |
| Packaging | Tape & Reel |
| Series | ASPI-6045S |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 820nH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 5.9A |
| Pin Count | 2 |
| Maximum DC Resistance | 0.01Ω |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Flat Wire Winding |
Key Features
- Inductance value of 820 nH with ±30% tolerance for varied frequency ranges.
- Maximum DC current rating of 5.9 A ensuring reliable high-current handling.
- Flat wire winding on ferrite core offers high energy storage and low DC resistance.
- Compact surface mount package measuring 6 mm length, 4.5 mm height, and 4.5 mm depth.
- Shielded construction for low electromagnetic interference and noise reduction.
- RoHS compliant with tape and reel packaging for automated assembly.
- Operating temperature range from -40°C to 125°C suitable for automotive and industrial environments.
- Suitable for portable communication devices, OA equipment, LCDs, DVDs, modems, and set-top boxes.
Product Description
The Abracon ASPI-6045S-R82N-T is a shielded surface mount inductor featuring a ferrite core and flat wire winding construction. It provides an inductance of 820 nH with a tolerance of ±30%, supporting a maximum DC current of 5.9 A. This inductor is designed for high-performance electronic circuits such as DC/DC converters and a variety of portable communication equipment.
The shielded magnetic construction minimizes electromagnetic interference, making it ideal for sensitive applications requiring low noise levels. Its compact size of 6 mm length, 4.5 mm height, and 4.5 mm depth allows integration into space-constrained PCB layouts. The inductor’s large terminal surface ensures strong PCB bonding for enhanced mechanical reliability.
Manufactured with a ferrite core and flat wire winding, the product balances low DC resistance and high energy storage capabilities. The tape and reel packaging facilitate automated surface mount technology assembly. Rated to operate in temperatures ranging from -40°C to 125°C, it is suitable for demanding automotive and industrial environments.
This inductor complies with RoHS standards, ensuring environmentally safe materials. Common applications include portable communication devices, office automation equipment, LCD and DVD players, modems, set-top boxes, and DC/DC converter circuits.
Inductance of 820 nH with ±30% tolerance. Maximum DC current of 5.9 A rating. Shielded ferrite core reduces electromagnetic interference. Compact footprint: 6 mm length, 4.5 mm height and depth. RoHS compliant and tape & reel packaged.
Wide operating temperature from -40°C to 125°C. Flat wire winding supports high energy storage and low resistance. Large terminal surface for secure PCB mounting. Explore more Surface Mount Inductors and electronic components for your industrial, automotive, and electronic design needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 820 nH with a tolerance of ±30%.
This inductor has a maximum DC current rating of 5.9 A.
The inductor measures 6 mm in length, 4.5 mm in height, and 4.5 mm in depth.
It operates within a temperature range of -40°C to 125°C.
The inductor features a ferrite core material.
It is packaged in tape and reel format, facilitating automated assembly.
This model uses flat wire winding construction, which offers high energy storage and low DC resistance.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
It is suitable for use in portable communication devices, office automation equipment, LCDs, DVDs, modems, and set-top boxes.
The termination style of this model is surface mount.
The maximum DC resistance is specified at 0.01 Ω.
This inductor has a pin count of 2.
