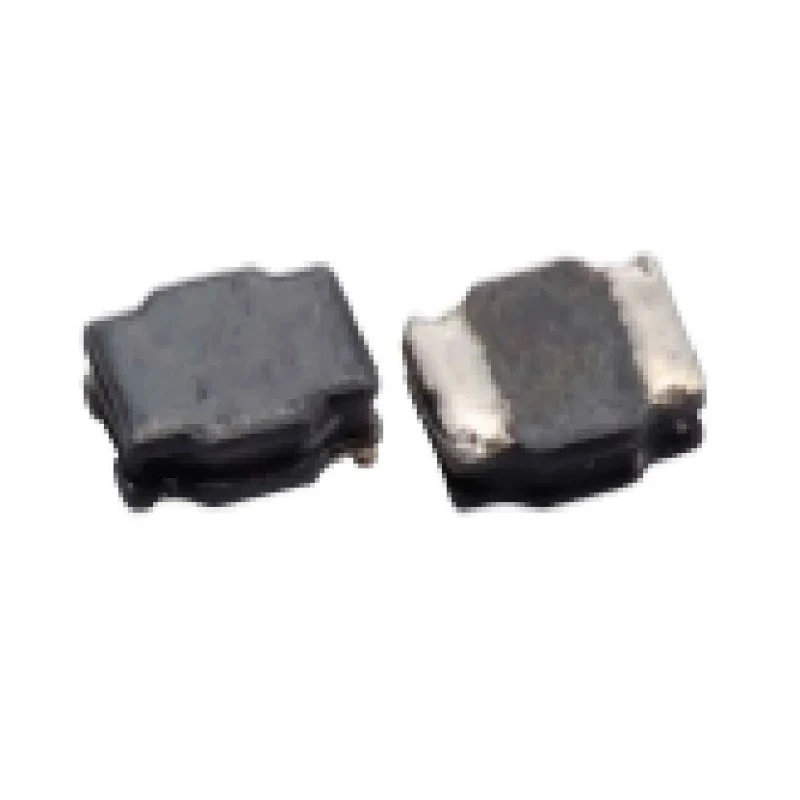

Abracon Shielded Surface Mount Chip Power Inductor Nickel Zinc Ferrite Core 10 μH, 550mA, 2.5mm x 1mm x 1mm ASPI-2510-100M-T2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1mm |
| Length | 2.5mm |
| Model | ASPI-2510-100M-T2 |
| Depth | 1mm |
| Packaging | Tape and Reel |
| Series | ASPI-2510 |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -10°C |
| Core Material | Nickel Zinc Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS, ISO9001:2008 Certified |
| Package/Case | Surface Mount |
| Maximum DC Current | 550mA |
| Pin Count | 4 |
| Maximum DC Resistance | 712mΩ |
| Inductance Tolerance | ±20/±30 % |
| Termination Style | Silver/Nickel/Tin |
| Inductor Construction | Surface Mount Chip Power Inductor |
| Small size and low profile | 1.0mm |
| Standards/ApprovalsRoHS, ISO9001 | 2008 Certified |
| RoHS, ISO9001 | 2008 Certified |
Key Features
- Compact low-profile design with dimensions 2.5mm length, 1mm height and 1mm depth.
- Features a nickel zinc ferrite core for enhanced magnetic properties.
- Magnetically shielded by a magnetic powder molding to reduce interference.
- Silver/Nickel/Tin termination style ensures robust solder connection.
- Inductance tolerance of ±20% to ±30% for precise control.
- Low maximum DC resistance of 712mΩ improves efficiency.
- Suitable for operating temperatures between -10°C and 120°C.
- Packaged with tape and reel for automated assembly processes.
Product Description
Abracon ASPI-2510-100M-T2 shielded surface mount chip power inductor is engineered with a nickel zinc ferrite core to deliver 10 μH inductance with a maximum DC current rating of 550mA. Its compact size of 2.5mm length, 1mm height, and 1mm depth suits miniature electronic assemblies. Magnetic powder molding provides shielding for reduced electromagnetic interference, making it ideal for mobile phones, digital cameras, MP3 players, portable communication devices, and other consumer electronics.
This surface mount inductor is constructed with silver/nickel/tin terminations for reliable solderability and surface mount case style for efficient PCB integration. The inductance tolerance ranges between ±20% and ±30%, ensuring stable circuit performance. It has a low DC resistance of 712 milliohms, enhancing power efficiency and thermal management withstanding ambient temperatures from -10°C to 120°C.
Packaged in tape and reel format, the ASPI-2510-100M-T2 supports automated pick-and-place manufacturing lines, improving production throughput. The product adheres to RoHS directives for hazardous substance compliance and ISO9001:2008 quality management standards, assuring high reliability and manufacturing excellence.
This component serves industrial, electronic manufacturing, consumer device production, and repair applications requiring high-quality surface mount inductors with shielding and compact form factor.
Compact low-profile 1.0mm height suitable for dense PCB layouts. Nickel zinc ferrite core to enhance inductance stability. Shielded by magnetic powder molding to minimize EMI. Silver/Nickel/Tin termination style for robust solder connections.
Tape and reel packaging for efficient assembly automation. Explore more Abracon components and reliable Surface Mount Inductors in the Electronics Components category at EnvMart for demanding industrial and consumer electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ASPI-2510-100M-T2 has an inductance value of 10 μH.
This model has a maximum DC current rating of 550mA.
The dimensions are 2.5mm in length, 1mm in height, and 1mm in depth.
It can operate within a temperature range of -10°C to 120°C.
The core material is nickel zinc ferrite, which enhances its magnetic properties.
It is packaged in tape and reel format for efficient automated assembly processes.
The termination style is silver/nickel/tin, ensuring robust solder connections.
The maximum DC resistance is 712 milliohms, which improves efficiency.
The inductance tolerance ranges from ±20% to ±30%.
It complies with RoHS directives and is ISO9001:2008 certified.
It is suitable for use in mobile phones, digital cameras, MP3 players, and other consumer electronics.
It features a surface mount chip power inductor construction.
