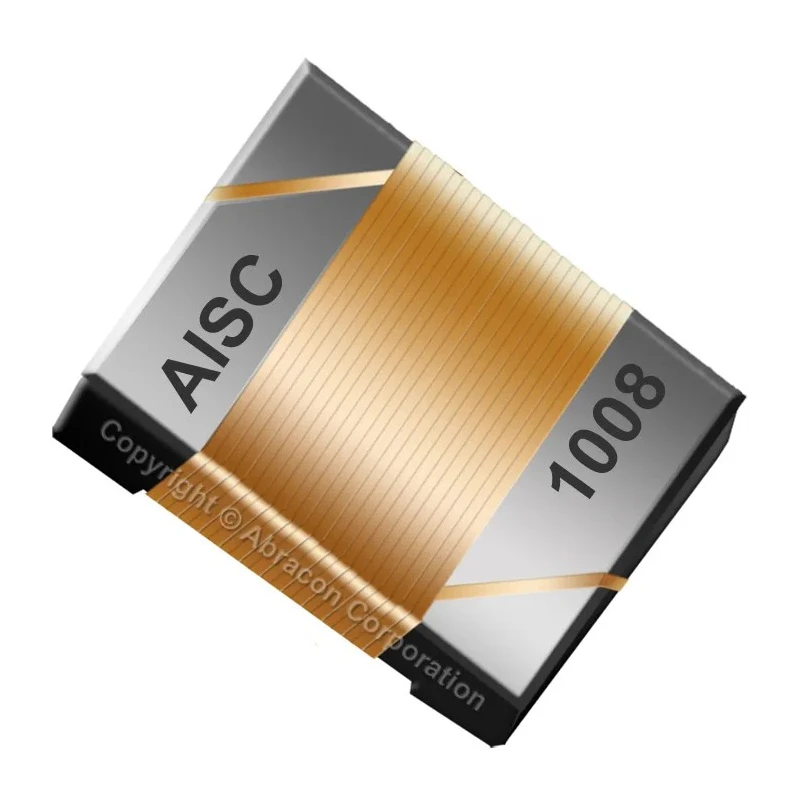

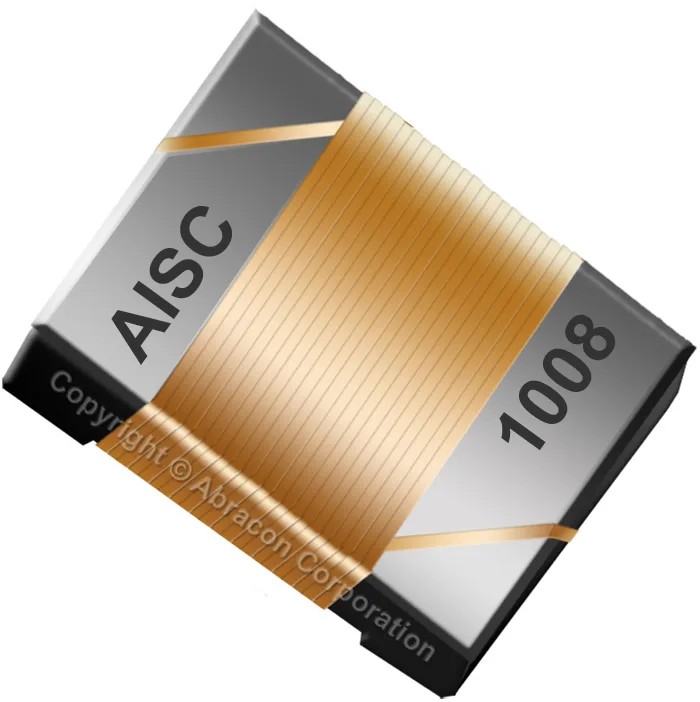

Abracon Unshielded Surface Mount Inductor with Ceramic Core 100 nH 1 A IDC Q:60 AISC-1008HQ-R10J-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.7mm |
| Length | 2.6mm |
| Model | AISC-1008HQ-R10J-T |
| Depth | 2.1mm |
| Packaging | Tape & Reel |
| Series | AISC-1008HQ |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 100nH |
| Standards/Approvals | QS 9000, RoHS/RoHS II, ISO 9001:2008 |
| Package/Case | Surface Mount |
| Maximum DC Current | 1A |
| Pin Count | 2 |
| Maximum DC Resistance | 0.16Ω |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 8100MHz |
| Minimum Quality Factor | 60 |
| Inductor Construction | Wirewound |
| Standards/ApprovalsQS 9000, RoHS/RoHS II, ISO 9001 | 2008 |
Key Features
- Compact surface mount package for high-density PCB layouts.
- Ceramic core ensures stable performance over temperature variations.
- Maximum DC resistance of 0.16 ohms ensures low power loss.
- High self-resonant frequency of 8.1 GHz supports high-frequency applications.
- Wirewound construction provides high quality factor of 60 or more.
- Operating temperature range from -40°C to 125°C for reliability.
- Tape & reel packaging facilitates automated assembly processes.
- No shielding and 2-pin configuration suit various electronic devices.
Product Description
The Abracon AISC-1008HQ-R10J-T is a high-quality unshielded surface mount inductor with a ceramic core, delivering 100 nH inductance and supporting a maximum DC current of 1 A. Featuring a wirewound construction, this inductor offers a minimum quality factor of 60 and a very high self-resonant frequency of 8.1 GHz, making it ideal for high-frequency electronic circuits.
Its compact dimensions of 2.6 mm length, 1.7 mm height, and 2.1 mm depth enable dense PCB integration. The device operates reliably across a wide temperature range from -40°C to 125°C, suitable for demanding industrial, telecommunications, consumer electronics, and automotive applications.
With a maximum DC resistance of 0.16 Ω, the inductor minimizes power loss, ensuring efficient operation. The surface mount termination style supports modern automated assembly techniques, supplied in convenient tape and reel packaging.
This model is RoHS compliant and adheres to QS 9000 and ISO 9001:2008 quality management standards, assuring manufacturing reliability. Common uses include cell phones, cable modems, Bluetooth devices, WLAN, GPS units, broadband networks, video cameras, and LCD TVs.
Compact Surface Mount Inductor with ceramic core construction. High Q factor and low DC resistance for efficient performance. Wide temperature operating range for robust reliability. Suitable for telecommunications, consumer electronics, and industrial equipment.
Standards compliant with RoHS, QS 9000, and ISO 9001:2008. Explore more high-quality inductors and related electronic components in EnvMart's comprehensive catalog for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 100 nH.
The maximum DC current rating for this inductor is 1 A.
It features a maximum self-resonant frequency of 8.1 GHz.
The height is 1.7 mm, and the depth is 2.1 mm.
The operating temperature range is from -40°C to 125°C.
The maximum DC resistance is 0.16 ohms.
It features a wirewound construction.
This model is packaged in tape and reel format, facilitating automated assembly processes.
It complies with QS 9000, RoHS, and ISO 9001:2008 quality management standards.
It is suitable for applications in telecommunications, consumer electronics, and industrial equipment.
The minimum quality factor is 60 or more.
The length of this inductor is 2.6 mm.
