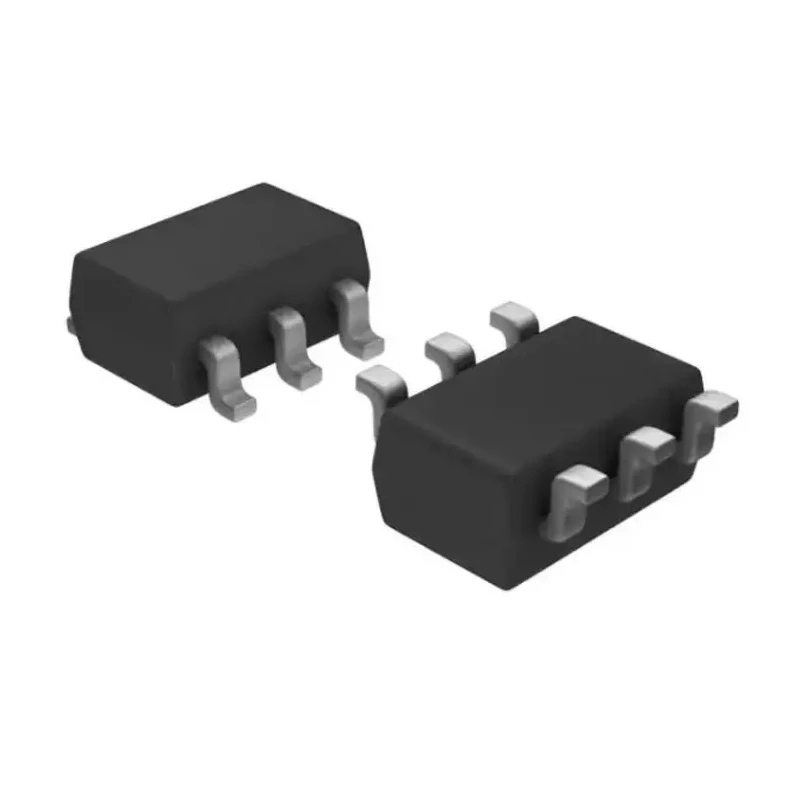

STMicroelectronics Uni-Directional TVS Diode, 3-Pin SOT-23-6L, 25V Breakdown Voltage, 9A Peak Pulse Current ESDA25SC6Y
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 3.05mm |
| Length | 1.75mm |
| Model | ESDA25SC6Y |
| Width | 1.45mm |
| Mount Type | Surface |
| Series | ESDA25SC6Y |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23-6L |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, IEC |
| Pin Count | 3 |
| Clamping Voltage VC | 51V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 25V |
| Maximum Peak Pulse Current Ippm | 9A |
Key Features
- The diode is designed for uni-directional voltage suppression to protect data and transmission lines.
- It supports a peak pulse power of 400 W with an 8/20 microsecond waveform for effective transient suppression.
- The maximum peak pulse current is rated at 9A, ensuring strong protection during surge events.
- Operating temperature ranges from -55°C up to 150°C, suitable for demanding industrial applications.
- Compact dimensions of 1.75 mm length, 1.45 mm width, and 3.05 mm height enable easy integration on PCBs.
- Compliant with RoHS and IEC standards and meets automotive standard AEC-Q101 for quality assurance.
- Ideal for industrial, automotive, and telecommunications equipment requiring ESD protection.
Product Description
STMicroelectronics ESDA25SC6Y is a uni-directional TVS (Transient Voltage Suppression) diode designed for protection of electronic components against electrostatic discharge and voltage transients. Housed in a compact 3-pin SOT-23-6L surface-mount package, it features a minimum breakdown voltage of 25V and is capable of handling up to 9A peak pulse current.
This diode offers a peak pulse power rating of 400 W (8/20 μs waveform) allowing it to effectively clamp high-voltage surges that may damage sensitive circuitry. It operates reliably in a wide temperature range from -55°C to 150°C and complies with critical industry standards including RoHS, IEC, and automotive certification AEC-Q101.
Its compact dimensions of 1.75 mm length, 1.45 mm width, and 3.05 mm height enable easy PCB footprint reduction while maintaining protection performance. The uni-directional feature makes it especially suited for protecting positive voltage lines.
These TVS diodes are excellent for industrial machinery electronics, automotive control modules, communication devices, power supplies, and other applications requiring robust ESD protection and transient voltage suppression.
The diode is designed for uni-directional voltage suppression to protect data and transmission lines. Peak pulse power rating of 400 W with 8/20 μs waveform. 9A maximum peak pulse current for high surge tolerance. Wide operating temperature range from -55°C to 150°C.
Compact 3-pin SOT-23-6L surface mount package. Certified to RoHS, IEC standards, and automotive AEC-Q101. Suitable for industrial, automotive, and telecommunications ESD protection.
Explore the Electronics & Electricals category at EnvMart for high-quality semiconductor protection devices including TVS Diodes. STMicroelectronics offers dependable components for critical industrial and automotive applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of the ESDA25SC6Y diode is 25V.
This model has a maximum peak pulse current rating of 9A.
The diode has a peak pulse power rating of 400 W with an 8/20 microsecond waveform.
The dimensions of the ESDA25SC6Y diode are 1.75 mm in length, 1.45 mm in width, and 3.05 mm in height.
The operating temperature range for the diode is from -55°C to 150°C.
This model uses a surface mount type for installation.
The diode complies with RoHS, IEC standards, and the automotive standard AEC-Q101.
The clamping voltage (VC) for the diode is 51V.
The ESDA25SC6Y diode has a pin count of 3.
This diode is suitable for applications in industrial machinery electronics, automotive control modules, and communication devices requiring ESD protection.
The direction type of this diode is uni-directional, making it suitable for protecting positive voltage lines.
The diode belongs to the ESDA25SC6Y series.
