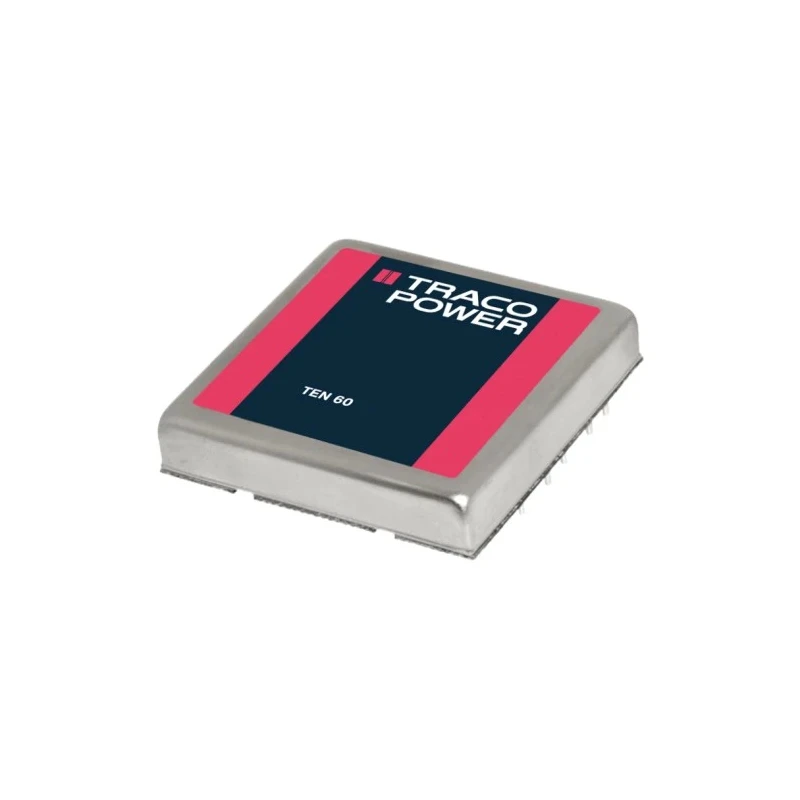

TRACOPOWER High Performance Regulated Isolated DC/DC Converter 15V DC 4A 36V Input 18V Input 60W PCB Mount TEN 60-2413

TRACOPOWER TEN 60-2413 DC/DC Converter is a 60W single output, high performance regulated and isolated power module designed for efficient power conversion in electronic applications. This converter provides a stable 15V DC output current of up to 4A from a wide input voltage range of 18V to 36V, making it ideal for battery operated equipment and distributed power architectures.

The unit is housed in a compact and shielded metal case with insulated baseplate, measuring 50.8mm in length and width, and 10.2mm in depth, enabling low profile PCB mounting in space-constrained designs. It boasts a high efficiency of 90%, minimizing energy loss and heat generation during operation, which supports an extended operating temperature range from -40°C to 75°C.

Designed with built-in EMI filters for both input and output, this DC/DC converter meets EN 55022 Class A and FCC Level A standards when used with external capacitors. It also includes advanced protection features such as undervoltage lockout, overvoltage, overtemperature, and short circuit protection to ensure reliable and safe operation in industrial, communication, laboratory, and manufacturing applications.

With 1.6kV DC input/output isolation voltage, the converter ensures effective noise suppression and user safety. The output voltage can be adjusted by ±10% for application-specific tuning, and the unit supports remote On/Off control to facilitate seamless integration into complex systems.

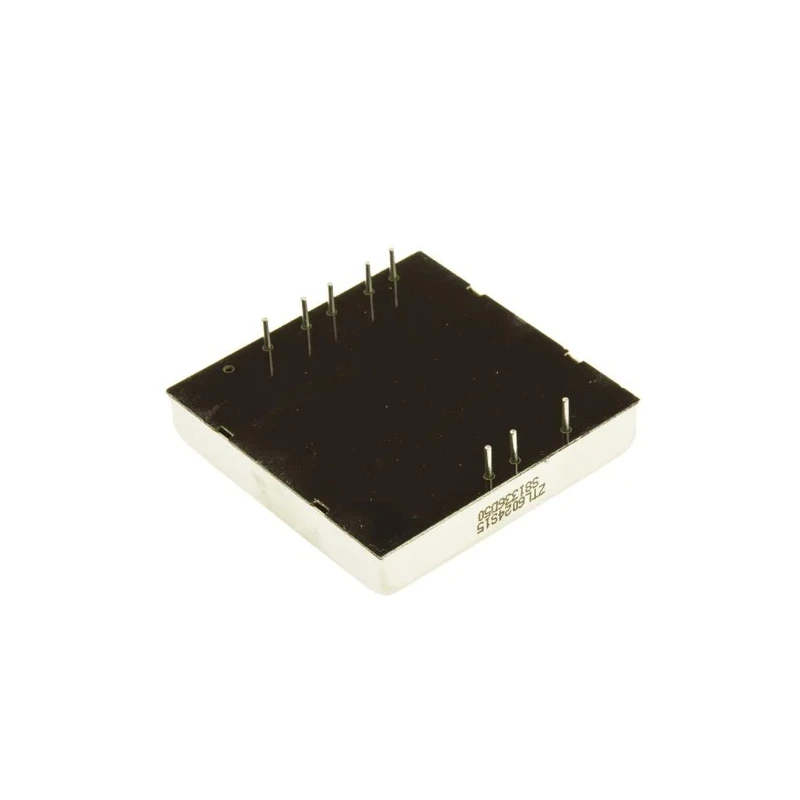

This converter’s MTBF rating of 410,000 hours underlines its durability and suitability for continuous operation in demanding environments. The package includes an 8-pin connection for easy installation and wiring.

High efficiency of 90% ensures reliable performance. Compact metal case measuring 50.8mm x 50.8mm x 10.2mm for space-saving installation. Operating temperature range from -40°C to 75°C allows use in harsh environments. Built-in input and output filters reduce electromagnetic interference.

Features multiple protection modes including undervoltage lockout, overvoltage, overtemperature, and short circuit protection. 1.6kV DC isolation voltage provides safety and noise immunity. Adjustable output voltage range ±10% for flexible applications.

Remote On/Off control capability enhances system integration options. Mean time between failure (MTBF) rated at 410,000 hours for robust operation.

This TRACOPOWER DC/DC converter is suitable for use in industrial, laboratory, communication, manufacturing, and other commercial environments requiring a compact, reliable power supply with stable output and high efficiency capability.
