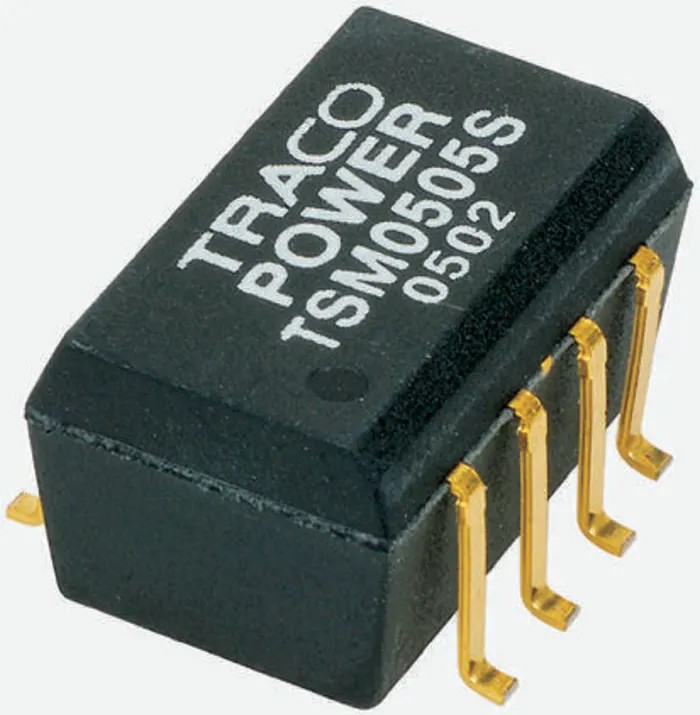

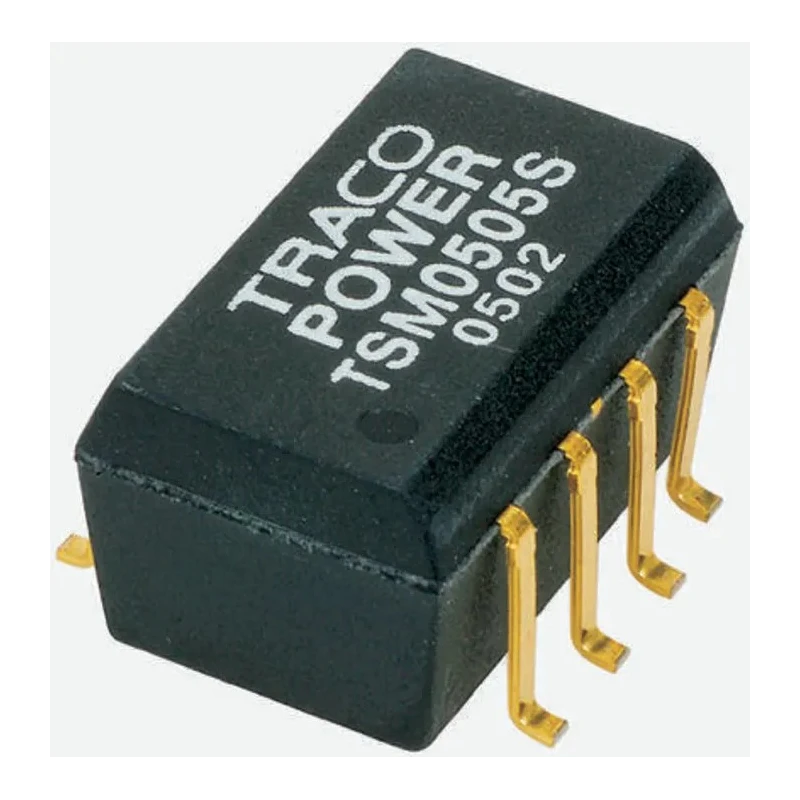

TRACOPOWER Isolated Dual Output 1W Surface Mount DC/DC Converter 12V DC 42mA, 21.6-26.4V Input, 85°C Max Temp TSM 2412D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TSM DC/DC Converter, 12V dc/ 42 mA, 26 |
| Brand | TRACOPOWER |
| Efficiency | 80% |
| Length | 15.24mm |
| Model | TSM 2412D |
| Depth | 7.8mm |
| Width | 8.3mm |
| Mount Type | Surface |
| Series | TSM |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 26.4V dc |
| Minimum Input Voltage | 21.6V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 42mA |
| Isolation Voltage | 1kV dc |
| Output Voltage 2 | -12V dc |
Key Features
- Isolated dual output design suitable for noise reduction and ground loop elimination.
- Compact surface mount package with dimensions 15.24mm x 8.3mm x 7.8mm.
- High efficiency of approximately 80% ensures low power loss.
- Wide operating temperature range from -40°C to 85°C for harsh industrial environments.
- 1kV DC isolation voltage for enhanced protection in sensitive electronics.
- MTBF rated at 2,000,000 hours indicating excellent reliability.
- Lead-free, RoHS compliant construction suitable for modern electronics production.
- Designed for automated SMD production with high pin co-planarity and high-temperature solder processes.
Product Description
TRACOPOWER TSM 2412D isolated dual output DC/DC converter is a high-reliability power supply unit designed to convert DC voltages reliably for industrial and electronic applications. It provides a 12V DC output at 42mA from input voltages ranging between 21.6V and 26.4V DC.
This surface mount device is built with lead frame technology in a compact moulded plastic package, measuring 15.24mm in length, 8.3mm in width, and 7.8mm in depth. It supports operation in a wide temperature range from -40°C to 85°C, making it highly suitable for demanding environments including industrial automation, telecommunications, and instrumentation.
Its isolated dual output and 1kV DC isolation voltage ensure noise reduction and eliminate ground loops, critical for sensitive signal applications. With an efficiency around 80%, it minimizes heat generation for enhanced longevity.
The device features an MTBF of 2 million hours reflecting its robust design and suitability for continuous operation. It is assembled using lead-free materials and complies with RoHS standards, enabling safe use in environmentally conscious manufacturing processes.
Typical applications include point of load power conversion, digital interface powering, and ground isolation in industrial, laboratory, and HVAC systems. The device supports high temperature reflow soldering up to 245°C and is available in tape and reel for automated assembly lines.
Isolated dual output design providing 1 watt power output. Compact surface mount form factor optimized for PCB space-saving. Supports harsh environment operation from -40°C to +85°C. High isolation voltage of 1kV DC for safety and noise immunity.
Lead free and RoHS compliant for modern electronics manufacturing. SMD package compatible with automated assembly and lead-free soldering. Typical applications include industrial, laboratory, telecommunications and HVAC power supply.
Set contains one TRACOPOWER TSM 2412D DC/DC converter in surface mount package. Browse additional DC/DC Converters and industrial power supplies on EnvMart for all your electronics component sourcing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSM 2412D operates with input voltages ranging from 21.6V to 26.4V DC.
This model provides a dual output of 12V DC at 42mA and -12V DC.
The maximum operating temperature for this unit is 85°C.
The efficiency of the TSM 2412D is approximately 80%.
The dimensions of this surface mount device are 15.24mm in length, 8.3mm in width, and 7.8mm in depth.
The TSM 2412D features an isolation voltage of 1kV DC, which enhances protection in sensitive electronics.
This model is designed for surface mounting, making it suitable for automated assembly processes.
The MTBF for this DC/DC converter is rated at 2,000,000 hours, indicating excellent reliability.
It supports a wide operating temperature range from -40°C to 85°C, suitable for harsh environments.
Typical applications include point of load power conversion, digital interface powering, and ground isolation in industrial, laboratory, and HVAC systems.
Yes, it is lead-free and RoHS compliant, suitable for modern electronics manufacturing.
This model provides two outputs: one at 12V DC and the other at -12V DC.
