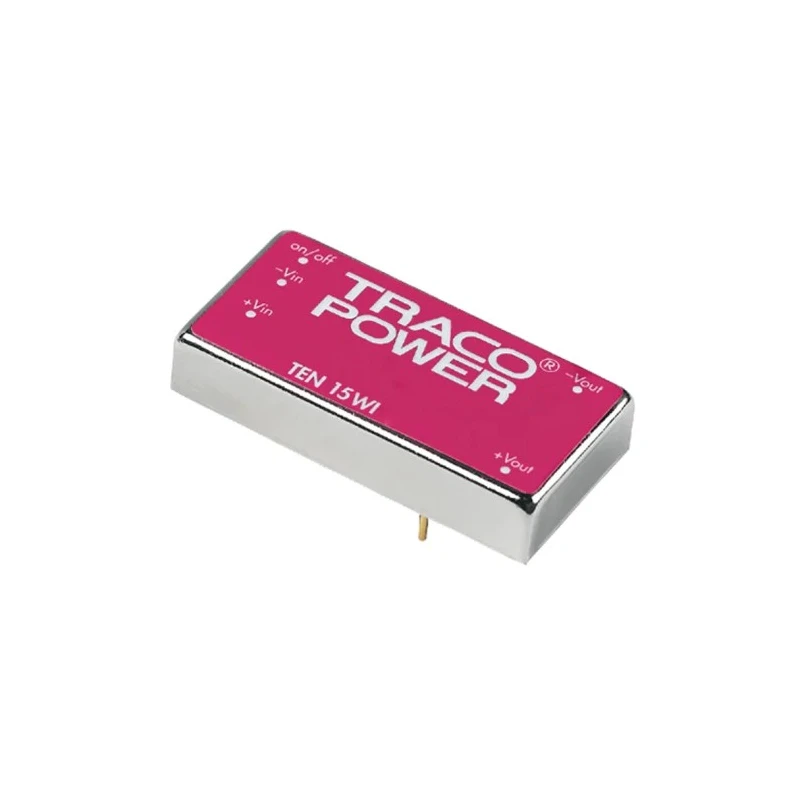

TRACOPOWER Regulated Isolated DC-DC Converter 15V dc 500mA Dual Output PCB Mount TEN 15-2423WI

TRACOPOWER TEN 15-2423WI is a highly reliable regulated isolated DC-DC converter featuring dual outputs of +15V and -15V at 500mA maximum output current. This converter operates over a wide input voltage range from 9V to 36V dc, suitable for varied power supply conditions. Designed for PCB mounting with a surface-mount metal package, it measures 25.4 mm in length and 10.2 mm in depth ensuring compactness.

The converter is built with ceramic chip capacitors contributing to its robustness and long service life, boasting a mean time between failures (MTBF) of 700,000 hours. Its operating temperature range of -40°C to +85°C makes it ideal for industrial and communication equipment exposed to harsh ambient conditions.

Featuring an isolation voltage of 1.5 kV dc, this DC-DC converter provides safety and noise reduction. With an efficiency of up to 86%, it minimizes power loss and heat generation. The integrated EMI filter complies with EN 55022 Class A and FCC Level A standards without external components, simplifying system compliance.

The onboard remote On/Off control feature allows integration into automated systems, while continuous short circuit protection enhances device and system safety. These features make this converter suitable for industrial systems, communication devices, and battery-powered applications requiring stable, isolated dual-polarity power supply outputs.

This DC-DC converter series offers a 4:1 ultra-wide input voltage ratio. It features dual outputs with voltages of +15V and -15V dc. Designed with a surface mount metal package optimized for PCB integration. Ensures high reliability with ceramic chip capacitors and an MTBF of 700,000 hours.

Operating temperature range from -40°C to +85°C for industrial environments. Provides 1.5kV dc isolation voltage between input and output for enhanced safety. Achieves up to 86% efficiency with a built-in filter compliant with EN 55022 class A and FCC level A.

Suitable for applications in communications, industrial systems, and battery-powered equipment. Includes remote On/Off control and continuous short circuit protection. Compact dimensions of 25.4mm length, 10.2mm depth support space-efficient installations.

This product is manufactured in Taiwan, Province Of China, meeting industrial quality standards. It is recommended for use in industrial automation, telecommunications, laboratory equipment, and other environments requiring robust isolated dual-output power supplies.

Explore our full range of DC/DC Converters and power supplies for diverse industrial and electronic applications at EnvMart.
