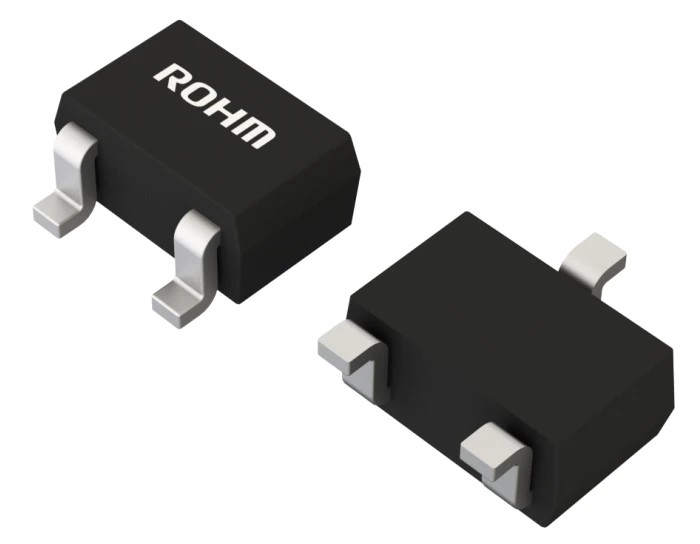

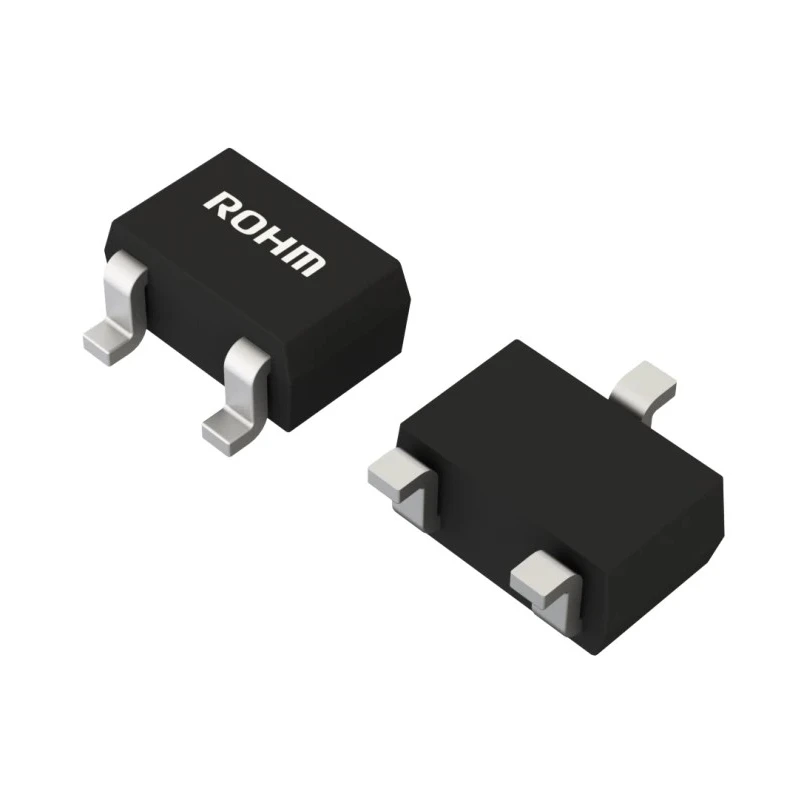

ROHM 40 V 0.03 A Schottky Diode 3-Pin SOT-323 Surface Mount RB715FM-40T106
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | RB715FM-40T106 |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 0.03A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 0.2A |
| Maximum Forward Voltage Vf | 0.37V |
Key Features
- Features a maximum continuous forward current of 0.03 A for low power electronics.
- Surface mount package type optimized for compact PCB designs.
- Low forward voltage of 0.37 V ensures efficient rectification.
- Wide operating temperature range from -55°C to 150°C for harsh environments.
- Peak reverse repetitive voltage rating of 40 V provides robust reverse voltage handling.
- Ultra low reverse current of 1 μA minimizes leakage losses.
- Schottky diode configuration with 2x common cathode pair for reliable electrical performance.
- Peak non-repetitive forward surge current of 0.2 A protects against transient surges.
Product Description
The ROHM RB715FM-40T106 Schottky diode is designed for surface mount applications requiring high reliability and efficiency. With a 3-pin SOT-323 small mold package, it is ideal for compact electronic circuits where consistent rectification performance is essential.
This diode supports a maximum continuous forward current of 0.03 A and a peak reverse repetitive voltage of 40 V, making it suitable for low power rectification tasks in electronics including power supplies, chargers, and signal protection circuits.
The device exhibits a low forward voltage of 0.37 V and an ultra-low peak reverse current of 1 μA, which enhance energy efficiency and reduce heat generation. Operating temperature range spans from -55°C to 150°C, enabling use in various industrial, automotive, and consumer electronics environments.
The diode features a 2x common cathode pair configuration and a peak non-repetitive forward surge current rating of 0.2 A, providing robustness against short transient surges commonly encountered in electrical systems.
Compliance with RoHS standards certifies the device is environmentally friendly and meets current international regulations. Maximum continuous forward current of 0.03 A. Peak reverse voltage of 40 V. Low forward voltage of 0.37 V.
Wide temperature operating range (-55°C to 150°C). Surface mount 3-pin SOT-323 package. Low reverse current of 1 μA. 2x common cathode pair diode configuration. Peak surge current rating of 0.2 A. RoHS compliant.
This product is suitable for use in industrial electronics, automotive systems, telecommunications, and general electronic device manufacturing requiring high reliability diodes with low loss characteristics.
Explore further Schottky diode solutions and ROHM brand products in the Electronics & Electricals category through EnvMart for optimized component procurement.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the ROHM RB715FM-40T106 Schottky diode is 0.03 A.
This model has a peak reverse repetitive voltage rating of 40 V, making it suitable for various low power applications.
The diode features a low forward voltage drop of 0.37 V, which enhances its efficiency in rectification tasks.
It operates within a wide temperature range from -55°C to 150°C, suitable for harsh environments.
The diode is configured as a 2x common cathode pair, providing reliable electrical performance for various applications.
The peak non-repetitive forward surge current rating for this model is 0.2 A, offering protection against transient surges.
The ROHM RB715FM-40T106 comes in a 3-pin SOT-323 surface mount package, optimized for compact PCB designs.
It has an ultra-low peak reverse current of 1 μA, which minimizes leakage losses in circuits.
Yes, the ROHM RB715FM-40T106 is RoHS compliant, ensuring it meets current environmental regulations.
This diode is suitable for use in industrial electronics, automotive systems, telecommunications, and general electronic device manufacturing.
The specific dimensions of the SOT-323 package are not provided, but it is designed for compact electronic circuits.
The country of origin for the ROHM RB715FM-40T106 Schottky diode is India.
