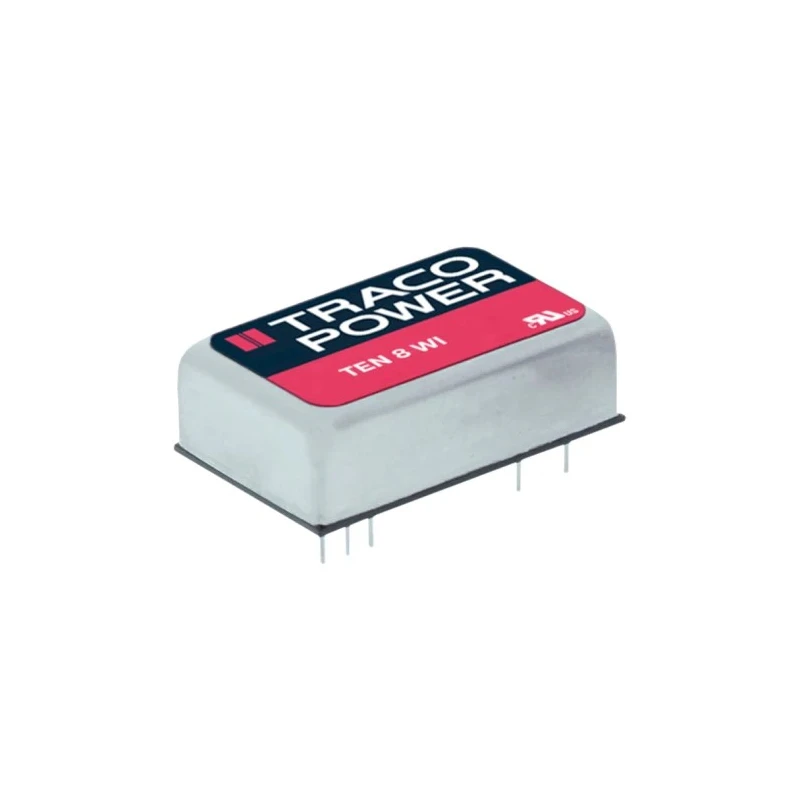

TRACOPOWER DC/DC Converter 15V DC Output 533mA 36V DC Input 9V Input 8W Through Hole DIP-24 Metal Package TEN TEN 8-2413WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 8WI DC/DC Converter, 15V dc/ 533 mA |
| Brand | TRACOPOWER |
| Efficiency | 86% |
| Length | 32mm |
| Model | TEN 8-2413WI |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | TEN 8WI |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP-24 |
| Minimum Operating Temperature | -40°C |
| MTBF | 2800000h |
| Number of outputs | 1 |
| Maximum Output Power | 8W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Number of Pins | 9 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 533mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Input Ratio 4 | 1 |
Key Features
- Features a through-hole DIP-24 metal package for robust installation.
- High efficiency of up to 86% ensures minimal power loss during operation.
- Wide operating temperature range from -40°C to 85°C enables use in harsh environments.
- Includes EN 50155 certification suitable for railway and transportation system applications.
- Provides 1.5kV dc isolation voltage for enhanced safety and noise reduction.
- Remote On/Off and under voltage lock-out circuits enhance control and protection.
- Shielded metal case with insulated base plate reduces electromagnetic interference.
- Designed for industrial, telecom/datacom, measurement, and control system applications.
Product Description
TRACOPOWER TEN 8-2413WI is a high-performance DC/DC converter delivering 15V DC output at 533mA with a maximum output power of 8W. It supports a wide input voltage range from 9V to 36V DC, making it suitable for a variety of industrial applications.
Housed in a rugged DIP-24 through-hole metal package with a shielded casing and insulated base plate, this converter is built to withstand thermal shock and vibrations according to EN 61373 standards. Its high efficiency of 86% ensures minimal heat generation, facilitating reliable operation over a temperature range of -40°C to +85°C.
The TEN 8WI series, including this model, holds EN 50155 approval, making it particularly suitable for railway and transportation uses, as well as wireless networks, telecom/datacom, industrial control systems, and precise measurement equipment.
Additional features include remote On/Off control and an under voltage lock-out circuit for enhanced operational reliability and safety. With an isolation voltage rating of 1.5 kV DC and compliance with RoHS directives, this converter meets stringent safety and environmental standards.
Dimensions of 32mm length, 20.3mm width, and 10.2mm depth fit industry-standard DIP-24 footprints for easy integration into existing PCB designs. Through-hole DIP-24 metal package for robust mounting. Wide input voltage range of 9 - 36V DC with 4:1 ratio.
Low electromagnetic interference with shielded metal casing. Remote On/Off and under voltage lock-out circuits included. EN 50155 approved for railway and transportation systems. Operating temperature range from -40°C to 85°C.
RoHS compliant and lead-free construction. High efficiency up to 86% ensures energy savings. 1.5 kV DC isolation voltage for safety.
This product is ideal for industrial, laboratory, telecommunications, transport, and data communication applications that require a stable regulated DC output with high reliability under demanding environmental conditions.
Discover more DC/DC Converters and related power solutions in EnvMart’s Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 15V DC output at a maximum current of 533mA.
It supports a wide input voltage range from 9V to 36V DC.
The maximum output power of this unit is 8W.
It has an efficiency rating of up to 86%, ensuring minimal power loss during operation.
The dimensions are 32mm in length, 20.3mm in width, and 10.2mm in depth.
It utilizes a through-hole DIP-24 metal package for robust installation.
The operating temperature range is from -40°C to 85°C, making it suitable for harsh environments.
It includes a 1.5kV DC isolation voltage and features such as remote On/Off control and under voltage lock-out circuits for enhanced safety.
This unit is EN 50155 certified, making it suitable for railway and transportation system applications, and it is RoHS compliant.
It has one output.
It is designed for industrial, telecom/datacom, measurement, and control system applications.
The isolation voltage rating is 1.5 kV DC, which enhances safety and reduces noise.
