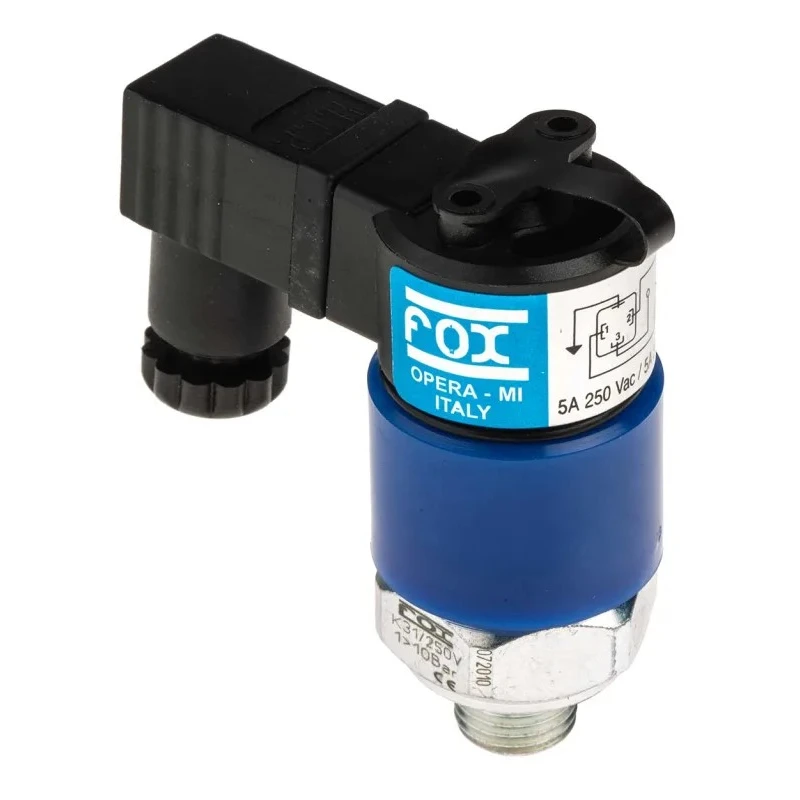

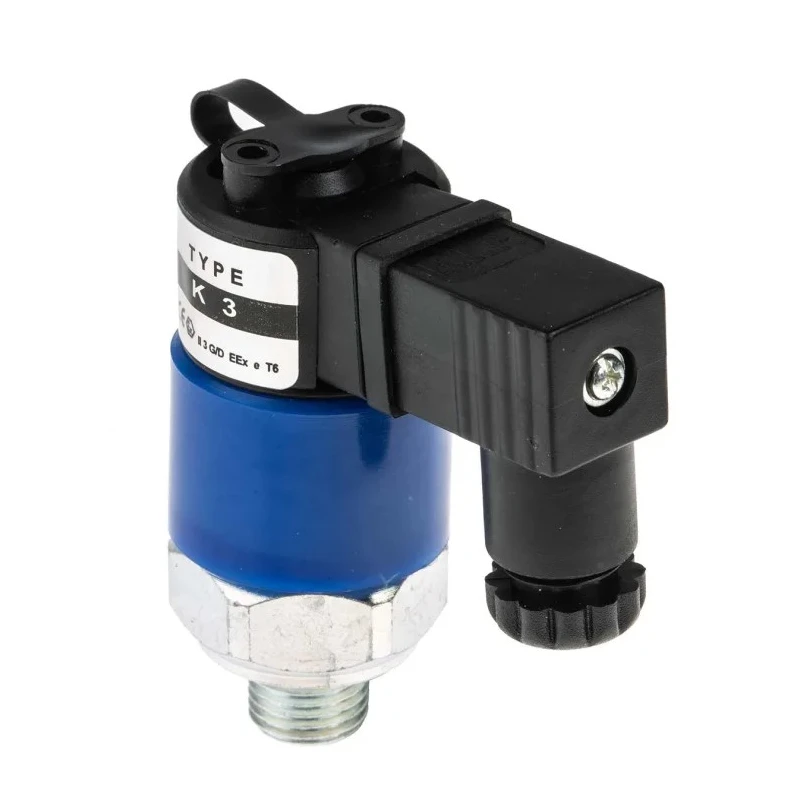

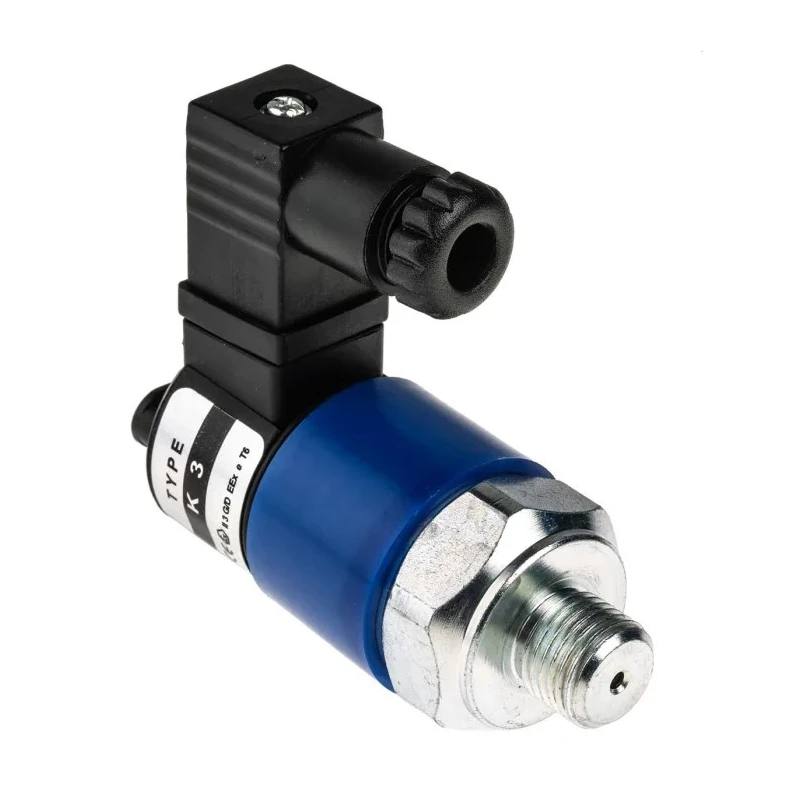

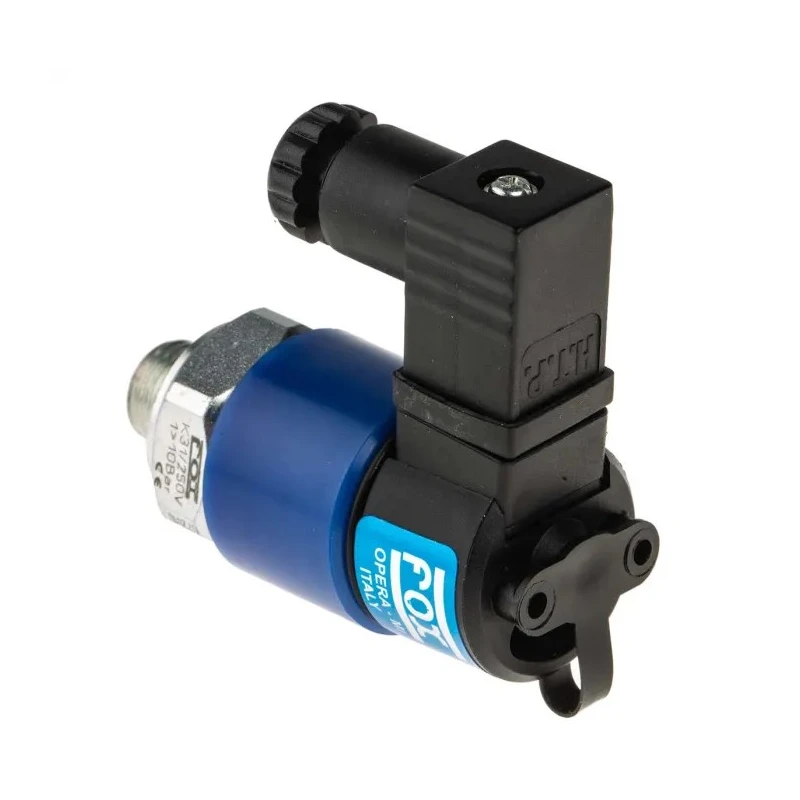

RS PRO Adjustable Pressure Switch NC 1 bar to 10 bar 250V AC IP65 Industrial Hydraulic Pneumatic Control 363-5968

RS PRO 363-5968 is a high-quality adjustable pressure switch designed for use in both hydraulic and pneumatic industrial systems. Operating over a pressure range of 1 bar to 10 bar, this device is equipped with a normally closed (NC) contact and supports 250V AC voltage, making it suitable for a wide range of control and monitoring applications.

The switch features a robust steel construction that enhances durability and ensures reliable operation even in demanding environments. Thanks to its compact design, it can be mounted in any orientation, providing versatile installation options in constrained spaces.

Key functional attributes include a switching frequency of up to 120 cycles per minute, ±3% accuracy of set pressure, and a wide operating temperature range spanning from -20°C to 80°C. The electrical connection is standardised with a DIN 43650 IP65-rated plug, protecting the switch from dust and water ingress.

Adjustment of the setpoint pressure is achieved via a central rotary screw, allowing precise calibration. Mechanical stops protect the internal spring and microswitch against damage due to over-pressurisation, thereby extending service life.

The RS PRO 363-5968 pressure switch is ideally suited for use in pumps, compressed air systems, machine tools, sensors, valves, and other process control equipment in industrial, manufacturing, HVAC, and fluid power applications.

Robust steel construction ensures long-lasting durability. Can be mounted in any orientation for flexible installation. Switching frequency of 120 cycles per minute for fast response. Accurate pressure detection with ±3% set pressure accuracy.

Wide operating temperature range from -20°C to 80°C. Electrical connection via DIN 43650 plug rated IP65 for environmental protection. Mechanical stops protect spring and microswitch against over-pressurisation. Suitable for pumps, compressed air systems, hydraulics, and process control.

Compact design with 1/4 inch BSP parallel male thread connection.

This Pressure Switch represents a compact, cost-effective solution for precise pressure monitoring and control, backed by RS PRO's quality standard. Explore more in the Industrial Tools & Equipment category for hydraulic and pneumatic system components.
