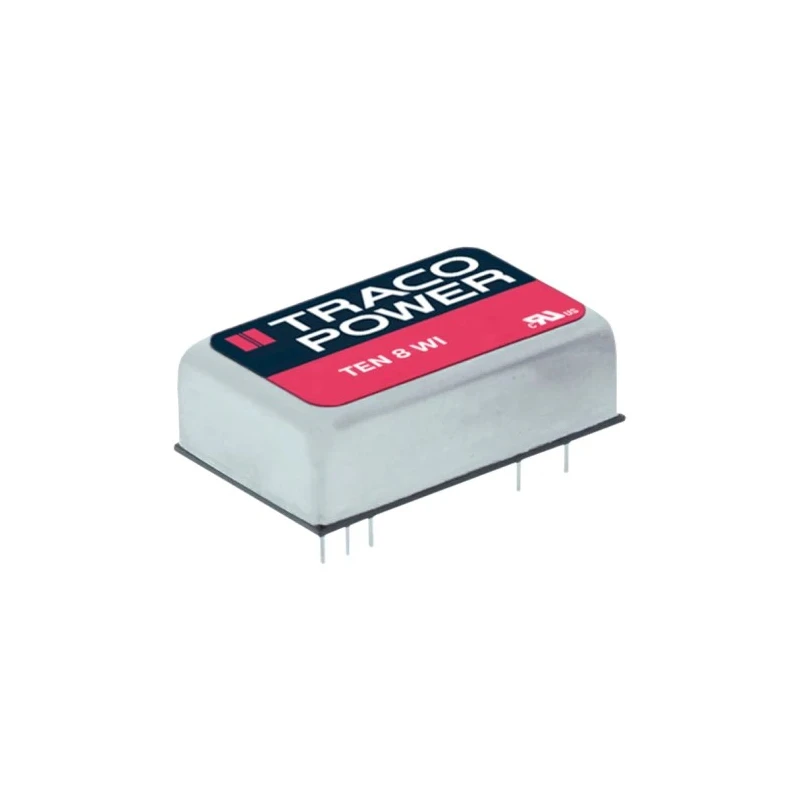

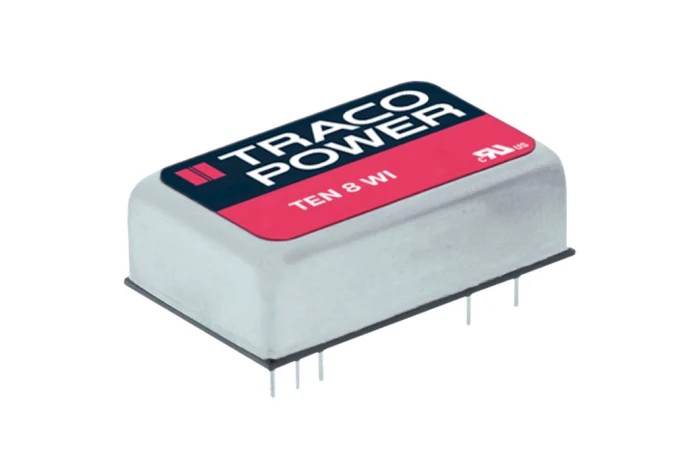

TRACOPOWER Regulated Isolated Dual Output DC/DC Converter 15V, -15V, 265mA, 8W, PCB Mount TEN 8-2423WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 8WI DC/DC Converter, 15V, -15 V/ 26 |
| Brand | TRACOPOWER |
| Efficiency | 0.86% |
| Length | 32mm |
| Model | TEN 8-2423WI |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | PCB |
| Series | TEN 8WI |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 2 |
| Maximum Output Power | 8W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 15, -15V |
| Output Current 1 | 265mA |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
Key Features
- This DC/DC converter features a DIP-24 package with a PCB mount type for ease of integration.
- It supports a wide input voltage range from 18V minimum to 36V maximum DC input.
- The device maintains a high efficiency of approximately 86 percent during operation.
- Operating temperature ranges from -40°C to +85°C, suitable for demanding industrial environments.
- It offers isolation voltage of 1.5kV DC, making it ideal for safety-critical applications.
- Designed to meet EN 50155 standards, suitable for railway and transportation systems.
- The converter supports remote On/Off control and integrated under voltage lockout protection.
- Robust metal DIP package with insulated base plate ensures thermal shock and vibration resistance.
Product Description
TRACOPOWER TEN 8-2423WI is a highly efficient and regulated dual output DC/DC converter, providing 15V and -15V outputs at 265mA with an 8W power rating. It comes in a compact DIP-24 metal package intended for PCB mounting, measuring 32mm in length, 20.3mm in width, and 10.2mm in depth. Its ultra-wide input voltage range from 18V to 36V accommodates versatile power sources, ensuring stable operation across demanding electrical environments. The device achieves an efficiency of approximately 86 percent, optimizing power consumption and heat generation.
This converter supports an extended operating temperature range of -40°C up to +85°C, suitable for harsh industrial and transportation applications including railway systems, wireless telecom, datacom, and industrial control systems. Featuring a 1.5kV DC isolation voltage for enhanced safety, the TEN 8-2423WI complies with EN 50155 railway standards, offering exceptional electromagnetic compatibility and environmental resistance.
Additional features include remote On/Off capability, under voltage lockout circuit, and a shielded metal case with insulated base plate for improved mechanical and thermal robustness. The lead-free, RoHS compliant design emphasizes environmental responsibility. This product is ideal for applications requiring reliable isolated DC power conversion in industrial, transportation, telecommunication, and measurement equipment.
This DC/DC converter features a DIP-24 package with a PCB mount type for ease of integration. It supports a wide input voltage range from 18V minimum to 36V maximum DC input. The device maintains a high efficiency of approximately 86 percent during operation.
Operating temperature ranges from -40°C to +85°C, suitable for demanding industrial environments. It offers isolation voltage of 1.5kV DC, making it ideal for safety-critical applications. Designed to meet EN 50155 standards, suitable for railway and transportation systems.
The converter supports remote On/Off control and integrated under voltage lockout protection. Robust metal DIP package with insulated base plate ensures thermal shock and vibration resistance. Lead free manufacturing and RoHS compliance ensure environmentally friendly design.
Explore more DC/DC Converters and power supply products at EnvMart for advanced industrial and electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for the TEN 8-2423WI is from 18V to 36V DC.
This converter provides dual output voltages of 15V and -15V.
The maximum output power of this model is 8W.
The efficiency of the TEN 8-2423WI is approximately 86 percent during operation.
The operating temperature range for the TEN 8-2423WI is from -40°C to +85°C.
This model has an isolation voltage of 1.5kV DC, suitable for safety-critical applications.
The converter is designed for PCB mounting and comes in a DIP-24 package.
Yes, it supports remote On/Off control as part of its features.
The TEN 8-2423WI is designed to meet EN 50155 standards, making it suitable for railway and transportation systems.
The dimensions of this converter are 32mm in length, 20.3mm in width, and 10.2mm in depth.
The mean time between failures (MTBF) for the TEN 8-2423WI is 700,000 hours.
This model is suitable for applications in industrial control systems, telecommunications, and railway systems due to its robust design and specifications.
