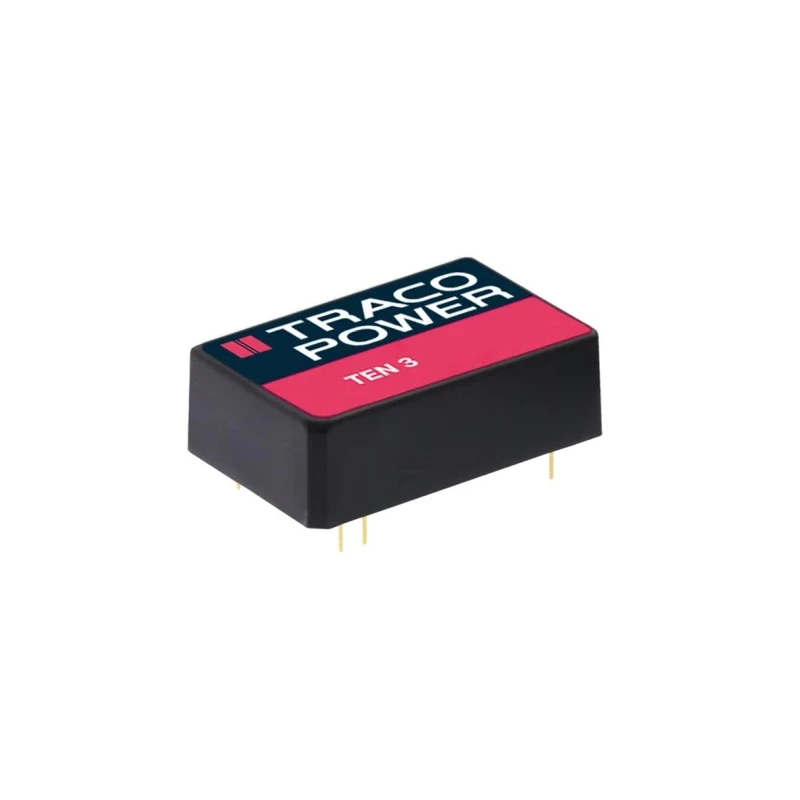

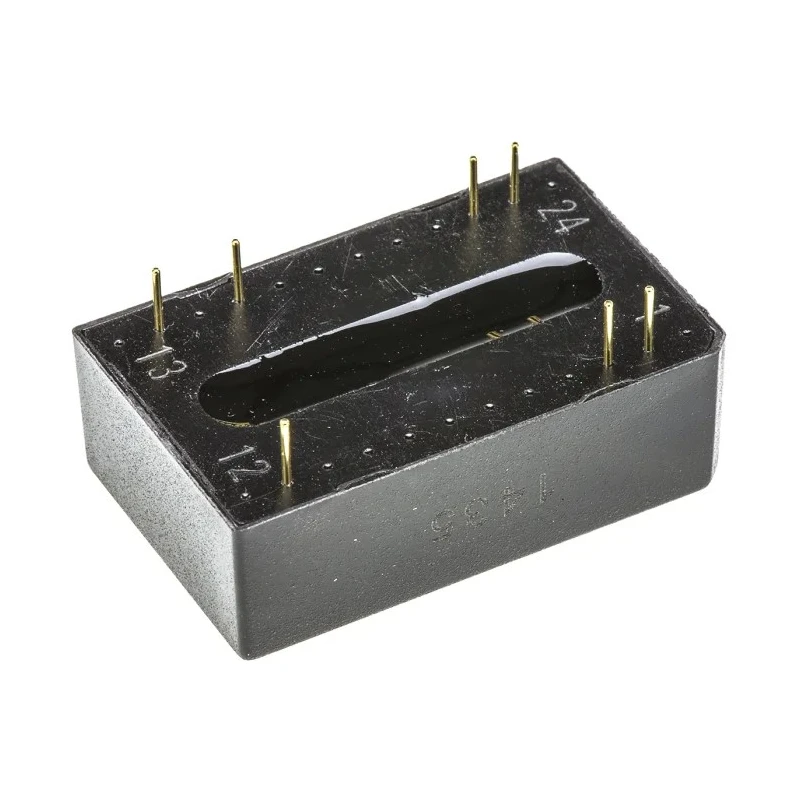

TRACOPOWER DC/DC Converter 15V DC 200 mA 3W Through Hole -40 °C to 85 °C TEN 3-1213
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 3 DC/DC Converter, 15V dc/ 200 mA |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 32mm |
| Model | TEN 3-1213 |
| Depth | 10.2mm |
| Mount Type | Through Hole |
| Series | TEN 3 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Wide 2 | 1 input range |
Key Features
- High efficiency up to 82% with full SMD design ensuring reliability.
- Compact 32mm by 10.2mm DIP package with 8 pins for through-hole mounting.
- Electrical isolation rated at 1.5 kV DC for safe operation.
- Extended operating temperature range from -40°C to 85°C.
- Short circuit protection enhances device safety during faults.
- Ideal for industrial and communication system applications.
- Mean time between failures (MTBF) greater than 1,100,000 hours.
- Meets international safety approvals including cUL/UL 60950-1 and IEC/EN 60950-1 standards.
Product Description
TRACOPOWER TEN 3-1213 is a high-quality DC/DC converter designed for industrial and communication systems requiring a compact and reliable 3 watt regulated isolated power supply. This model delivers a stable output voltage of 15 V DC at 200 mA current with a maximum output power of 3 watts. The converter operates over a wide input voltage range of 9 to 18 V DC, making it suitable for use with varying supply conditions.
Featuring a through-hole DIP-24 package design measuring 32 mm in length and 10.2 mm in depth with 8 pins, the TEN 3-1213 facilitates easy PCB mounting and integration into electronic circuits. The full surface-mount design guarantees high reliability and long service life, complemented by a mean time between failures (MTBF) exceeding 1.1 million hours.
The converter boasts an efficiency rating of approximately 82%, ensuring energy savings and minimal heat generation. Electrical isolation of 1.5 kV DC separates input and output circuits to protect sensitive components and maintain safety during operation. Additionally, built-in short circuit protection safeguards the device against damage from accidental faults.
Designed for challenging environments, this DC/DC converter operates effectively within temperatures ranging from -40°C to +85°C. It complies with key safety standards such as cUL/UL 60950-1 and IEC/EN 60950-1, providing assurance of quality and reliability. The TEN 3 series is well-established for versatile applications in industrial electronics and communication infrastructure.
Package Contents: 1 Pc TRACOPOWER TEN 3-1213 DC/DC Converter. Wide 2:1 input voltage range from 9V to 18V DC. High efficiency up to 82% with full SMD design ensuring reliability. Compact 32mm by 10.2mm DIP package with 8 pins for through-hole mounting.
Electrical isolation rated at 1.5 kV DC for safe operation. Extended operating temperature range from -40°C to 85°C. Short circuit protection enhances device safety during faults. Ideal for industrial and communication system applications.
Mean time between failures (MTBF) greater than 1,100,000 hours. Meets international safety approvals including cUL/UL 60950-1 and IEC/EN 60950-1 standards. Explore more DC/DC Converters and power supply solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 15 V DC with a maximum output current of 200 mA.
The efficiency rating of the TEN 3-1213 is approximately 82%.
It operates over a wide input voltage range of 9 to 18 V DC.
The converter has a compact size of 32 mm in length and 10.2 mm in depth.
The electrical isolation of this model is rated at 1.5 kV DC.
This unit can operate effectively within an extended temperature range of -40°C to +85°C.
This model features a single output.
It is designed for through-hole mounting with a DIP package.
It meets international safety approvals including cUL/UL 60950-1 and IEC/EN 60950-1 standards.
The MTBF for the TEN 3-1213 is greater than 1,100,000 hours.
Yes, it includes built-in short circuit protection to enhance safety during faults.
It is ideal for use in industrial and communication system applications.
