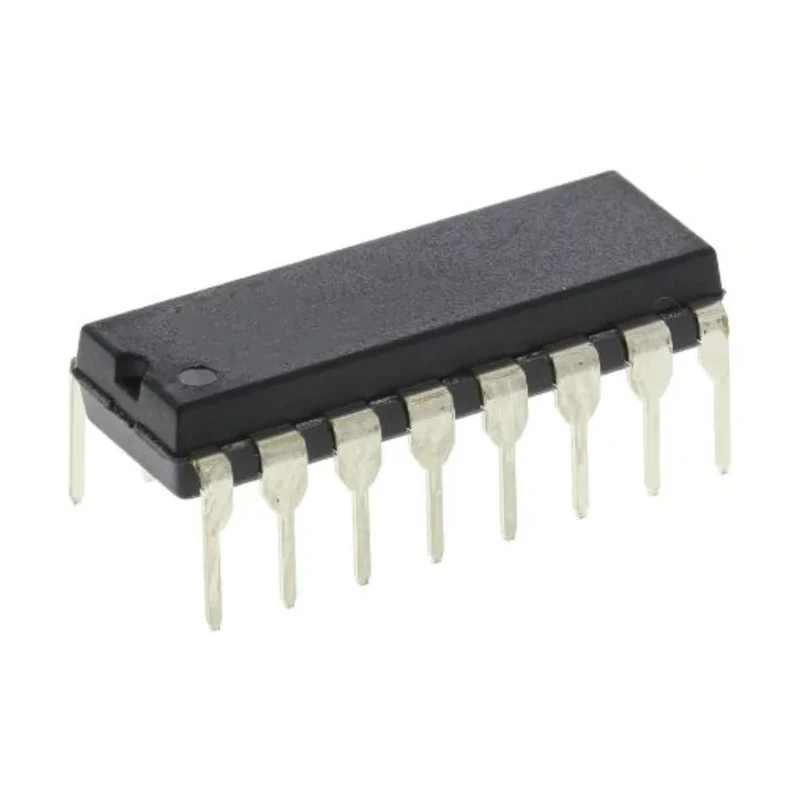

Renesas Electronics Line Transceiver 3 State Inverting 16-Pin PDIP, 5V, 15mA HIN232ECPZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 5.33mm |
| Length | 19.68mm |
| Model | HIN232ECPZ |
| Width | 8.25mm |
| Mount Type | Through Hole |
| Output type | 3 State |
| Series | HIN232E |
| Input Type | TTL, CMOS |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Polarity | Inverting |
| IC Type | Line Transceiver |
| Pin Count | 16 |
| Maximum Supply Voltage | 5V |
| Logic Family | CMOS/TTL |
| Logic Function | Transceiver |
| Maximum Propagation Delay Time @ CL | 10μs |
| Supply Current | 15mA |
Key Features
- The transceiver supports CMOS/TTL logic families for input and output compatibility.
- It features a through-hole mount type suitable for PCB assembly.
- The maximum propagation delay time is 10 microseconds at capacitive load.
- Operating temperature ranges from -40°C to 85°C, ensuring reliability in varied environments.
- The device is designed without automotive compliance but meets RS-232E and V.28 standards.
- Requires a single +5V power supply with onboard voltage doubler/inverter for ±12V signal levels.
- The low power consumption design facilitates efficient operation in electronic systems.
Product Description
Renesas Electronics HIN232ECPZ is a line transceiver IC designed for serial communication that includes a 3-state output and inverting functionality within a 16-pin PDIP package. It operates from a single 5V supply and features a typical supply current of 15mA, making it suitable for low power embedded systems.
This transceiver supports both CMOS and TTL logic families for flexible interfacing with various digital circuits. It has a maximum propagation delay of 10 microseconds at specified load capacitances, enabling efficient data transmission with minimal latency.
With an operational temperature range from -40°C to 85°C, the HIN232ECPZ is reliable in industrial and commercial environments requiring robust temperature tolerance. The device does not meet automotive standards but complies with the RS-232E and V.28 interface specifications, ensuring compatibility with a wide range of serial communication protocols.
The device is mounted through-hole, facilitating easy soldering and prototyping. The package measures 19.68mm in length, 8.25mm in width, and 5.33mm in height, allowing integration into space-constrained designs. Built-in voltage doubler and inverter circuits enable generation of ±12V signal levels from a single +5V supply, simplifying power requirements.
Low power consumption aids in thermal management and prolongs battery life in portable applications. Ideal for use in communication equipment, industrial controls, and instrumentation systems where reliable RS-232 line interfacing is required.
Package contains one unit of Renesas Electronics HIN232ECPZ line transceiver in PDIP package. These line transceivers provide differential driving and receiving functions compatible with RS-232 standards without the need for ±12V external supplies.
