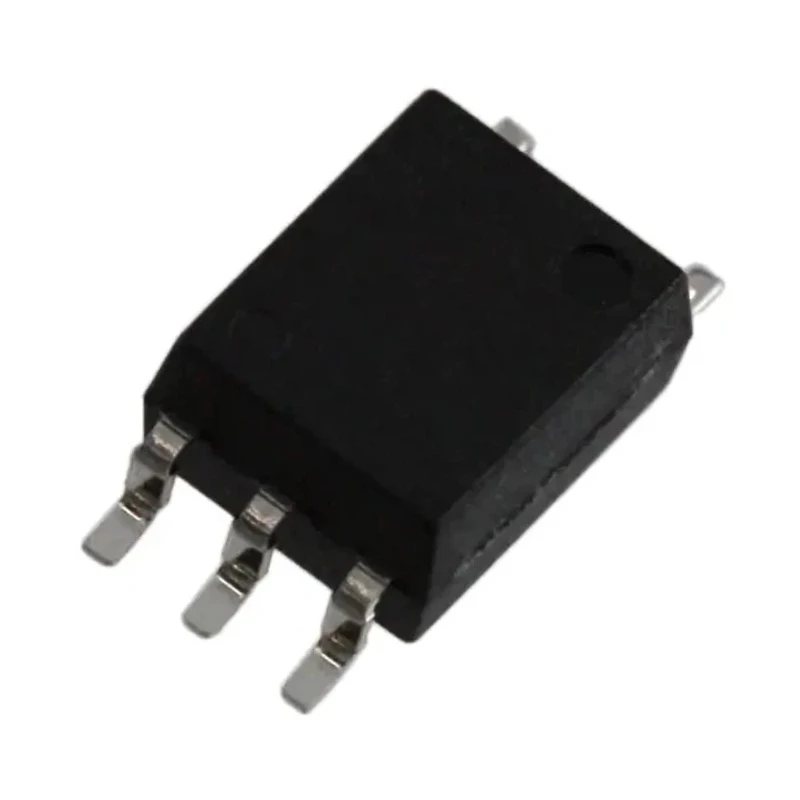

Toshiba Photocoupler Surface Mount 5-Pin SO, 1 Channel, Max Forward Voltage 1.8V TLP152(TPL,E(T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Toshiba |
| Model | TLP152(TPL,E(T |
| Mount Type | Surface |
| Series | TLP |
| Maximum Operating Temperature | 100°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 20mA |
| Number Of Channels | 1 |
| Standards/Approvals | CSA, EN, UL |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 5 |
| Typical Rise Time | 18ns |
| Typical Fall Time | 22ns |
Key Features
- Features a GaAℓAs infrared LED and a high-gain photodetector IC chip.
- Maximum forward voltage of 1.8 volts enables efficient LED operation.
- Provides isolation voltage rating of 3750 Vrms ensuring safety in industrial applications.
- Typical rise and fall times of 18 ns and 22 ns respectively for high-speed switching.
- Supports maximum input current of 20 mA with stable performance across temperature ranges.
- Operates reliably between -40°C and 100°C ambient temperatures.
- Complies with CSA, EN, and UL safety standards assuring quality and reliability.
- Ideal for use in industrial inverters, MOSFET gate drivers, and IGBT applications requiring electric isolation.
Product Description
The Toshiba TLP152(TPL,E(T photocoupler is an advanced surface mount Optocoupler device housed in a 5-pin SO package. It integrates a GaAℓAs infrared LED optically coupled to a high-speed, high-gain photodetector IC, delivering efficient signal transfer with electrical isolation. This device supports a maximum forward voltage of 1.8 V and a maximum input current of 20 mA, optimized for industrial-level performance.
With an isolation voltage rating of 3750 Vrms, it offers robust electrical isolation suitable for industrial inverter circuits and power management applications such as MOSFET gate drivers and IGBT totem pole outputs. The typical rise time of 18 ns and fall time of 22 ns ensure fast switching capabilities for precise control.
Designed for surface mounting, its compact SO package facilitates automated machine insertion, improving production efficiency and assembly line speed. It operates reliably within a wide temperature range from -40°C to +100°C, making it suitable for diverse industrial and electronic environments.
The TLP152 complies with international safety standards including CSA, EN, and UL, assuring dependable performance and safety compliance. Applications span industrial machinery control, power supply circuitry, signal isolation, and other electronic systems requiring noise reduction and electrical interference mitigation.
Features a GaAℓAs infrared LED and a high-gain photodetector IC chip. Maximum forward voltage of 1.8 V for efficient operation. Industry-standard isolation voltage of 3750 Vrms for safety. Fast switching with typical rise time of 18 ns and fall time of 22 ns.
Wide temperature range support from -40°C to 100°C. Conforms to CSA, EN, and UL safety approvals. Compact surface mount SO package for automated assembly.
This photocoupler is ideal for industrial automation, power electronics, and instrumentation applications requiring robust electrical isolation and fast signal transmission. Explore more Toshiba photocouplers and optoelectronic components on EnvMart for innovative solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of the TLP152 is 1.8 V, which enables efficient LED operation.
It has an isolation voltage rating of 3750 Vrms, ensuring safety in industrial applications.
The typical rise time is 18 ns and the fall time is 22 ns, providing high-speed switching capabilities.
This model operates reliably between -40°C and 100°C, making it suitable for diverse environments.
The maximum input current supported by this unit is 20 mA, ensuring stable performance.
It is housed in a 5-pin SO (Surface Mount) package, facilitating automated machine insertion.
This photocoupler complies with CSA, EN, and UL safety standards, ensuring quality and reliability.
It is ideal for use in industrial inverters, MOSFET gate drivers, and IGBT applications requiring electrical isolation.
The TLP152 features 1 channel, designed for efficient signal transfer with electrical isolation.
It features a GaAℓAs infrared LED, which is optically coupled to a high-gain photodetector IC.
The TLP152 is part of the TLP series of photocouplers from Toshiba.
Its high isolation voltage, wide operating temperature range, and fast switching times make it suitable for various industrial applications.
