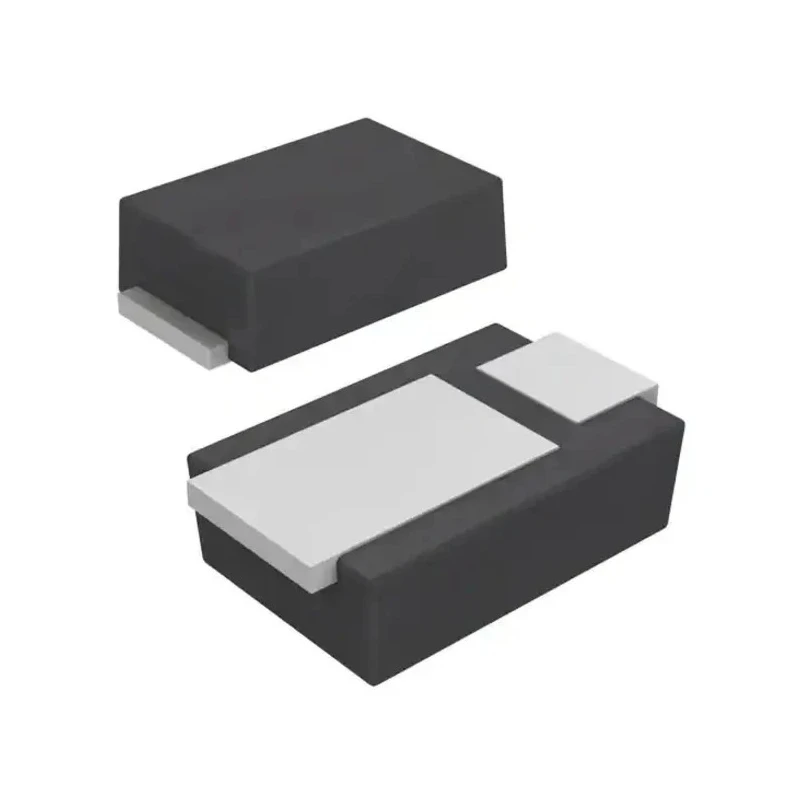

ROHM 40 V 1 A Surface Mount Rectifier & Schottky Diode PMDE Package RBR1VWM40ATR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | RBR1VWM40ATR |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | PMDE |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 20A |
| Maximum Forward Voltage Vf | 0.52V |
Key Features
- Low forward voltage drop enhances efficiency in power circuits.
- Designed in compact PMDE package suitable for surface mounting.
- Operates reliably from -55°C up to 150°C temperature range.
- Peak forward surge current rating is 20 A for transient conditions.
- Single diode configuration with 2 pins for easy circuit integration.
- Meets RoHS compliance ensuring environmental safety.
- Maximum forward voltage of 0.52 V at rated current for low power dissipation.
- Low peak reverse current of 50 µA ensures minimal leakage.
Product Description
ROHM RBR1VWM40ATR is a high reliability Schottky barrier diode designed for surface mount applications. This rectifier diode supports a continuous forward current of 1 Ampere and withstands peak reverse repetitive voltages up to 40 Volts, making it ideal for efficient power rectification in electronic circuits.
Its compact PMDE package enhances circuit density, supporting modern PCB assembly processes with a two-pin configuration. Featuring a low forward voltage drop of 0.52 V, it reduces power losses and helps improve overall system efficiency.
The diode operates reliably over a wide temperature range from -55°C to 150°C, suitable for industrial, automotive, and consumer electronics applications. A peak non-repetitive forward surge current rating of 20 A allows it to handle transient current spikes without damage.
Additional benefits include minimal leakage current with a peak reverse current of just 50 microamperes, contributing to stable operation in sensitive electronic devices. The product complies with RoHS standards, ensuring it meets environmental regulations for hazardous substances.
Low forward voltage drop enhances efficiency in power circuits. Compact surface mount PMDE package suitable for automated assembly. Wide operating temperature range from -55°C to 150°C. Handles surge currents up to 20 A safely.
Single diode with 2-pin configuration for straightforward PCB layout. Compliant with RoHS for environmental safety. Maximum forward voltage is 0.52 V, reducing power loss. Minimal reverse current leakage of 50 µA supports sensitive electronics.
This diode is suitable for use in industrial machinery, consumer electronics, power supply circuits, automotive systems, and other applications requiring efficient and reliable rectification. It is ideal for engineers and designers seeking a dependable Schottky Diode for surface mount technology.
Explore EnvMart for more semiconductor components by ROHM and other leading manufacturers for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for the ROHM RBR1VWM40ATR is 150°C.
This model has a peak reverse repetitive voltage rating of 40 Volts.
The continuous forward current rating for this diode is 1 Ampere.
The maximum forward voltage drop at the rated current is 0.52 Volts.
It has a peak non-repetitive forward surge current rating of 20 Amperes.
This diode features a single configuration with 2 pins, making it easy for circuit integration.
The package type for this model is PMDE, suitable for surface mounting.
The minimum operating temperature for the ROHM RBR1VWM40ATR is -55°C.
The peak reverse current for this diode is 50 microamperes (µA).
Yes, this model complies with RoHS standards, ensuring it meets environmental regulations for hazardous substances.
It is suitable for use in industrial machinery, consumer electronics, power supply circuits, and automotive systems.
This product is a Schottky barrier diode designed for efficient power rectification.
