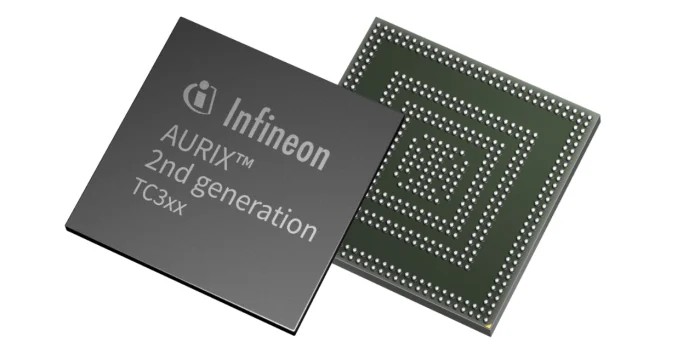

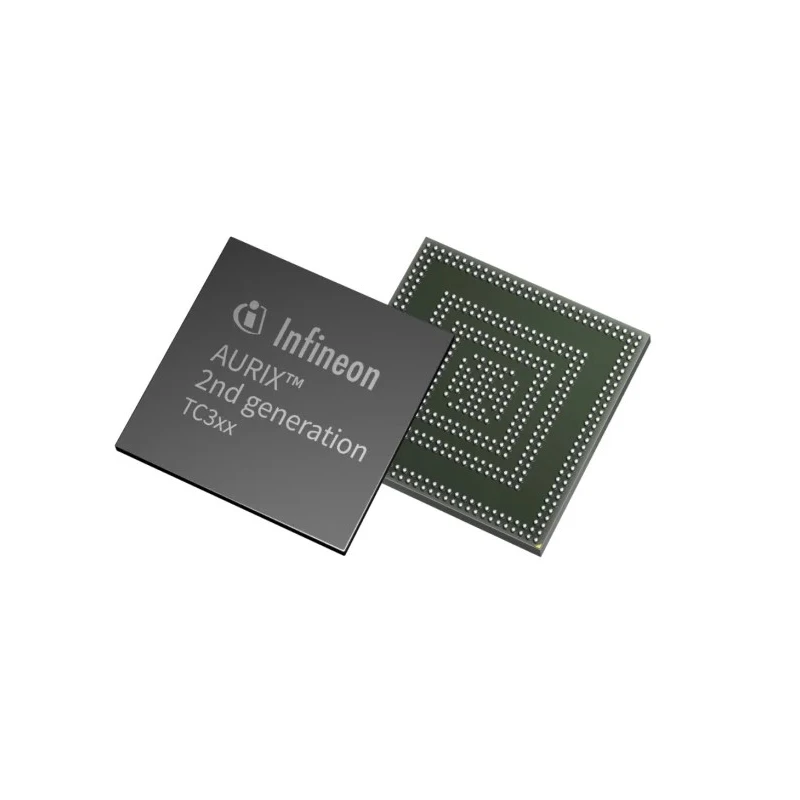

Infineon 32 bit TriCore AURIXTM TC3Ex Microcontroller 300 MHz 10.24MB FLASH 292-Pin LFBGA TC3E7QG160F300SAAKXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | TC3E7QG160F300SAAKXUMA1 |
| Series | AURIXTM TC3Ex |
| Package Type | LFBGA |
| Interfaces | Ethernet and up to 20 CAN FD |
| Ram size | 1.5MB |
| Standards/Approvals | RoHS, ISO 26262 ASIL-D, AUTOSAR 4.2 |
| Pin Count | 292 |
| Device Core | TriCore |
| Program Memory Size | 10.24MB |
| Maximum Clock Frequency | 300MHz |
| Instruction Set Architecture | TriCore |
| Program Memory Type | FLASH |
Key Features
- This microcontroller features a 32-bit TriCore architecture with a clock speed of 300 MHz.
- It includes 10.24 MB of FLASH program memory and 1.5 MB of RAM for complex processing tasks.
- Packaged in a 292-Pin LFBGA, it supports advanced automotive standards including ISO 26262 ASIL-D.
- Connectivity options comprise 1 Gbit Ethernet, up to 20 CAN FD, 4 FlexRay channels, 24 LINs, and 6 QSPI interfaces.
- Security is enhanced with an EVita full Hardware Security Module compliant with HSM standards.
- The device supports AUTOSAR 4.2 and operates up to 165°C junction temperature, suitable for harsh environments.
- It delivers 2700 DMIPS with 4 cores and 2 additional checker cores for enhanced safety.
- Supports standby mode controller for efficient power management.
Product Description
Infineon TC3E7QG160F300SAAKXUMA1 is a 32-bit TriCore AURIXTM TC3Ex microcontroller designed for demanding automotive and industrial applications. Operating at a maximum clock frequency of 300 MHz, it provides powerful processing capabilities integrated with extensive memory resources of 10.24 MB FLASH and 1.5 MB SRAM.
This microcontroller is built on the TriCore instruction set architecture and is packaged in a compact 292-pin LFBGA package, enabling high-density board integration and thermal management.
It supports crucial automotive safety standards including ISO 26262 ASIL-D and AUTOSAR 4.2 compliance, ensuring functional safety and standardized software architecture for advanced vehicle systems.
Connectivity features are comprehensive, including up to 20 CAN FD channels, 4 FlexRay channels, 24 LINs, 6 QSPI interfaces, and high-speed 1 Gbit Ethernet, facilitating communication across multiple automotive and industrial networks.
Security is a key feature with onboard EVita full Hardware Security Module (HSM), providing robust cryptographic services and secure connectivity essential for modern connected control units.
The device supports standby mode control to manage power efficiently and operates reliably up to a junction temperature of 165°C, making it suitable for challenging operating conditions.
This microcontroller delivers 2700 DMIPS with 4 cores and 2 additional checker cores for safety and error detection. It offers extensive automotive-grade connectivity options to support domain controllers and gateway ECUs.
Compliance with safety and security standards makes it suitable for next-generation automotive electronics and industrial control systems. Designed for versatility, the product is ideal for applications requiring high-speed processing and robust communication interfaces.
This product is intended for industrial, automotive, and embedded systems development. Browse the EnvMart catalog for a wide selection of Microcontrollers and semiconductor components to meet your engineering and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 300 MHz.
It includes 10.24 MB of FLASH program memory.
This microcontroller has a RAM size of 1.5 MB.
It complies with RoHS, ISO 26262 ASIL-D, and AUTOSAR 4.2 standards.
It supports interfaces including 1 Gbit Ethernet, up to 20 CAN FD channels, 4 FlexRay channels, 24 LINs, and 6 QSPI interfaces.
The pin count for this microcontroller is 292 pins.
It operates reliably up to a junction temperature of 165°C.
This model is built on a 32-bit TriCore architecture.
It delivers 2700 DMIPS with 4 cores and 2 additional checker cores.
The country of origin for this microcontroller is India.
It is packaged in a 292-Pin LFBGA format.
The EVita Hardware Security Module provides robust cryptographic services and secure connectivity essential for modern connected control units.
