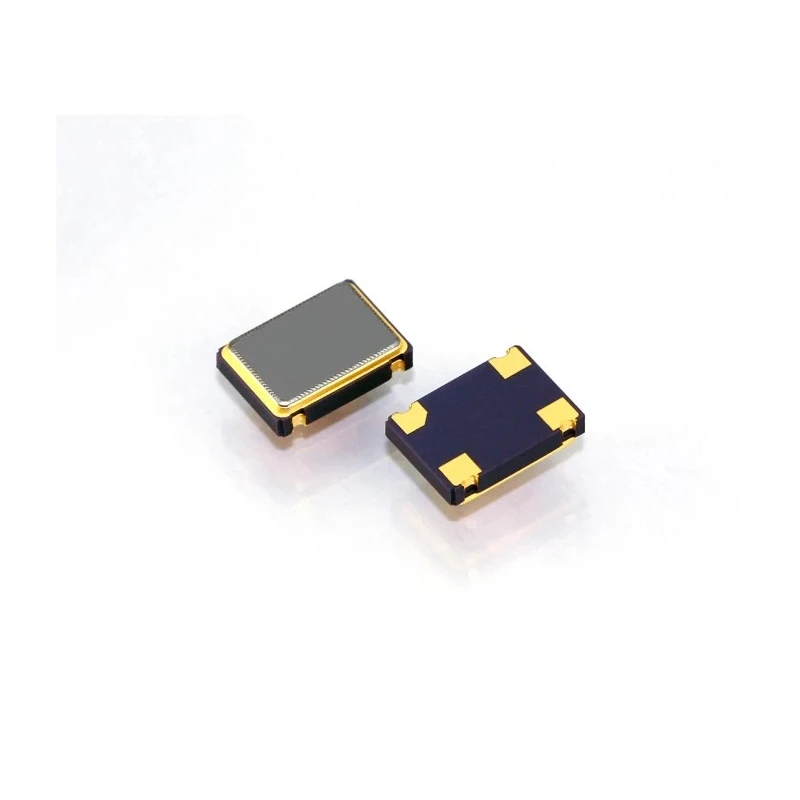

Ecliptek 24MHz XO Oscillator 100 ppm CMOS 4-Pin Surface Mount EC2600TS-24.000M TR
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | Ecliptek |
| Operating Temperature | -10°C to 70°C |
| Package | 4-SMD, No Lead |
| Height | 1.8mm |
| Length | 7mm |
| Model | EC2600TS-24.000M TR |
| Mounting Type | Surface Mount |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Surface |
| Output type | CMOS |
| Series | EC26 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 24MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.3V |
| Oscillator Type | XO |
| Output Level | CMOS |
Key Features
- Operates at a nominal frequency of 24MHz with XO oscillator type.
- Features CMOS output and a 4-pin surface mount package for easy PCB integration.
- Supports a maximum supply voltage of 3.3V for low power consumption.
- Operating temperature range from -10°C to 85°C suitable for industrial environments.
- Compact dimensions of 7mm length, 5mm width and 1.8mm height.
- Packaged in tape and reel format ideal for automated assembly.
- Manufactured to no specific automotive standards, with RoHS compliance presumed.
- Includes tri-state high impedance pin connection and standby (power down) function.
Product Description
The Ecliptek EC2600TS-24.000M TR is a high-quality 24MHz XO oscillator featuring a CMOS output and a 4-pin surface mount package. It offers a frequency stability of ±100 ppm, making it suitable for applications requiring precise timing and frequency control.
Designed for surface mount installation, this oscillator supports a maximum supply voltage of 3.3 volts and operates reliably across a temperature range from -10°C to 85°C, making it suitable for industrial, communications, and embedded electronic systems.
This device is packaged in tape and reel format, supporting efficient automated pick and place assembly processes in manufacturing.
The oscillator includes a tri-state high impedance pin with standby (power down) functionality to reduce power consumption when not in active use. Its compact size of 7mm by 5mm by 1.8mm allows for space-saving PCB designs.
As a dependable component from Ecliptek, known for precision crystal oscillators, the EC2600TS-24.000M TR is ideal for electronic engineers designing frequency-critical applications in telecommunications, computing, and industrial instrumentation.
Operates at 24MHz frequency with XO type for consistent output. CMOS output ensures compatibility with digital circuits. 4-pin surface mount package facilitates modern PCB layouts. Frequency stability of ±100 ppm supports precise timing applications.
Wide operating temperature range from -10°C to 85°C. Low power consumption with maximum 3.3V supply voltage. Compact dimensions for easy integration into space-constrained designs. Tape and reel packaging supports automated assembly lines.
Tri-state high impedance pin and standby function enhance power management.
This Ecliptek oscillator is a critical component for various industrial electronics, laboratory instruments, and communication devices requiring stable frequency sources. Browse more Crystal Oscillators at EnvMart to find matching components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a nominal frequency of 24MHz, making it suitable for various timing applications.
The oscillator supports a maximum supply voltage of 3.3V, which helps in maintaining low power consumption.
It operates reliably across a temperature range from -10°C to 85°C, suitable for industrial environments.
This oscillator features a CMOS output type, ensuring compatibility with digital circuits.
The compact dimensions of this model are 7mm in length, 5mm in width, and 1.8mm in height, allowing for easy integration into PCB designs.
It is packaged in tape and reel format, which is ideal for automated assembly processes.
This unit is designed for surface mount installation, facilitating modern PCB layouts.
It offers a frequency stability of ±100 ppm, making it suitable for applications requiring precise timing.
Yes, it includes a tri-state high impedance pin connection and a standby (power down) function to reduce power consumption when not in use.
This oscillator has a pin count of 4, which is typical for its surface mount design.
While it is presumed to be RoHS compliant, it is not manufactured to any specific automotive standards.
It is ideal for various industrial electronics, telecommunications, computing, and embedded electronic systems that require stable frequency sources.
