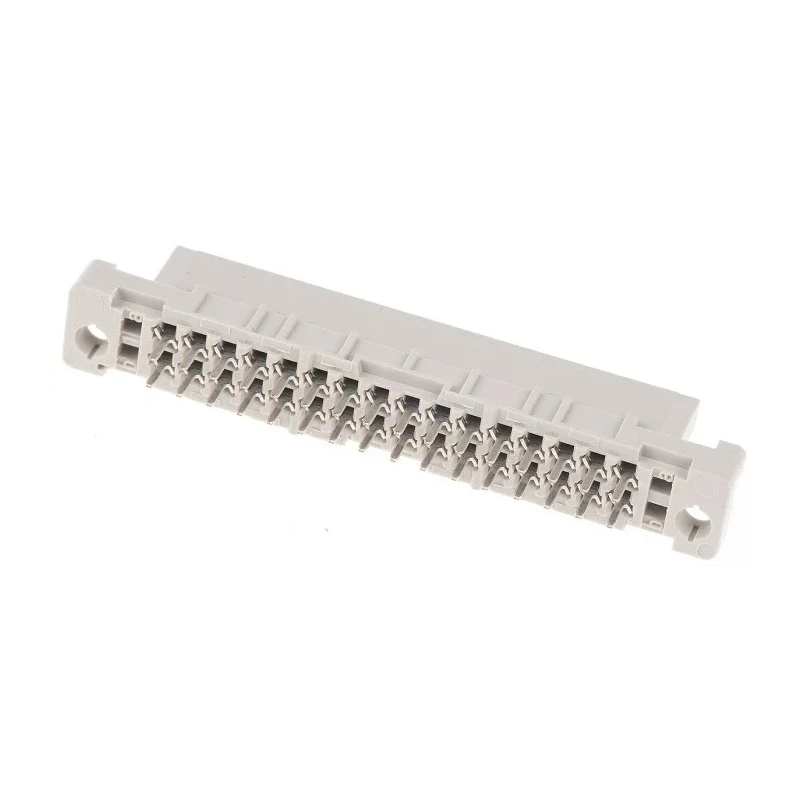

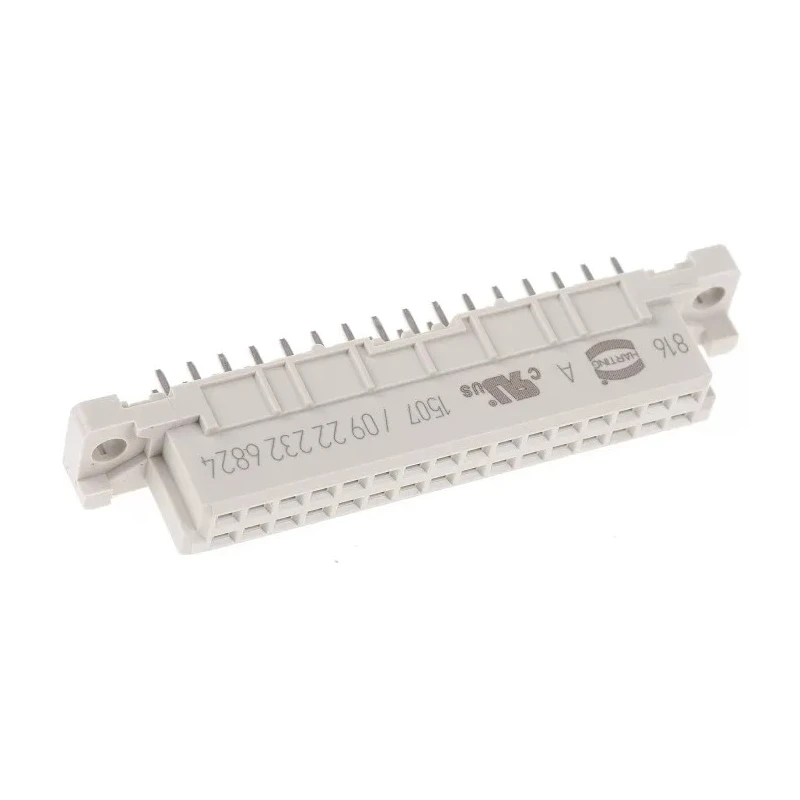

HARTING DIN 41612 Connector 32 Contacts 2.54 mm Pitch Type C/2 Solder Class C2 2 Row Female Straight 09222326824

Name: HARTING DIN 41612 Connector 32 Contacts 2.54 mm Pitch Type C/2 Solder Class C2 2 Row Female Straight 09222326824
Brand: HARTING
SKU: 110871
Price: 5.91 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Orientation	Straight
Current	2A
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	09 22
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	32
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	20mΩ
Row Loading	A/B

Key Features

Supports 2A maximum current per contact.
Features gold plated contacts over nickel for reliable conductivity.
Operates reliably within -55°C to 125°C temperature range.
Constructed with thermoplastic, glass fibre filled housing for durability.
Provides a maximum contact resistance of 20 milliohms for consistent signal quality.
Designed in compliance with DIN 41612 standards for Eurocard racking system compatibility.
Has copper alloy contact material for enhanced corrosion resistance.
Offers a robust solder termination ensuring secure PCB mounting.

Product Description

HARTING 09222326824 is a DIN 41612 Connector designed for electronic backplane and rack applications requiring reliable and consistent electrical connections under demanding environmental conditions.

This 32-contact connector features a 2.54 mm pitch, Type C/2 sub-type, and Class C2 solder termination, arranged in a 2-row female straight configuration. It supports a maximum current of 2 amperes per contact and can operate within a wide temperature range from -55°C up to 125°C, making it suitable for industrial and electronic assembly environments.

The contacts are made from copper alloy plated with gold over nickel, delivering excellent corrosion resistance and low contact resistance up to 20 milliohms. The connector housing is made from thermoplastic resin filled with glass fibre to enhance mechanical robustness and durability.

These features ensure consistent performance in PCB-mounted backplane signal connector applications, compatible with all 19-inch Eurocard racking systems following DIN 41612 standards. The solder termination method provides secure and stable mounting to printed circuit boards.

Manufactured to high-quality standards in Germany, this connector is ideal for use in industrial electronics manufacturing, telecommunications, measurement equipment, and other electronic device assemblies requiring dependable signal integrity.

Supports 2A maximum current per contact. Features gold plated contacts over nickel. Operates within -55°C to 125°C temperature range. Thermoplastic resin glass fibre filled housing. Maximum contact resistance of 20mΩ. DIN 41612 standard compliant connector.
