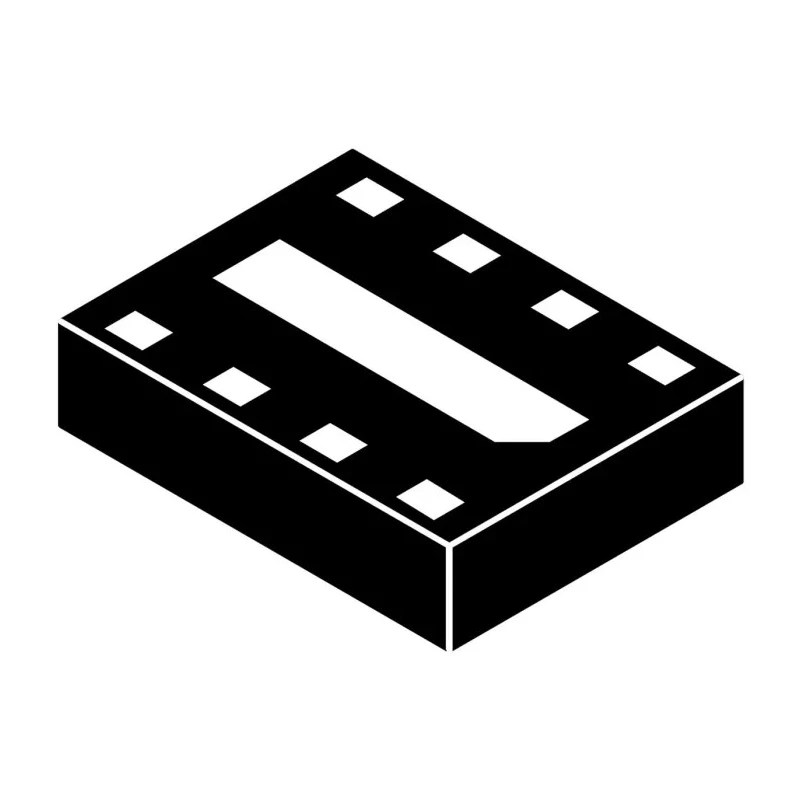

onsemi Voltage Regulator 1A Low Dropout Linear Regulator 5.5V Max Input, Surface Mount XDFN 8-Pin NCP186AMX330TAG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.4mm |
| Length | 1.6mm |
| Model | NCP186AMX330TAG |
| Width | 1.2mm |
| Mount Type | Surface |
| Series | NCP186 |
| Maximum Operating Temperature | 150°C |
| Package Type | XDFN |
| Polarity | Positive |
| Maximum Input Voltage | 5.5V |
| Quiescent Current | 140μA |
| Standards/Approvals | AEC-Q100, Pb-Free |
| Minimum Input Voltage | 1.8V |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
Key Features
- Delivers up to 1 ampere of output current with low quiescent current of 140μA.
- Designed for automotive applications conforming to AEC-Q100 standards.
- Compact device measures 1.6mm length by 1.2mm width and 0.4mm height for space-saving PCB layouts.
- Offers positive polarity voltage regulation with input voltage range from 1.8V to 5.5V.
- Operates reliably up to a maximum temperature of 150°C.
- Pb-free materials ensure RoHS compliance and environmental safety.
- Low dropout regulator design provides efficient voltage regulation with minimal dropout voltage.
- Surface mount XDFN package supports high-density, automated assembly.
Product Description
onsemi NCP186AMX330TAG is a highly efficient Low Dropout (LDO) linear voltage regulator designed to provide stable output voltages with low noise and excellent transient response. This regulator supports up to 1A output current and operates with a maximum input voltage of 5.5V. Packaged in a compact XDFN 8-pin surface mount package, it is ideal for space-constrained electronic applications, especially in automotive and industrial environments.
The device features a low quiescent current of only 140μA, which makes it suitable for battery-powered and energy-sensitive applications. Compliance with the AEC-Q100 automotive qualification ensures durability and reliability under harsh conditions and elevated temperatures up to 150°C.
Its positive polarity and broad input voltage range from 1.8V to 5.5V allow flexible use in various power management designs. The regulator's low dropout voltage enhances efficiency and reduces heat dissipation, making it an excellent choice for embedded systems requiring stable voltage references.
The small package dimensions of 1.6mm length, 1.2mm width, and 0.4mm height facilitate dense PCB layouts and automated assembly processes. The lead-free construction ensures conformity to environmental standards.
Low dropout linear regulator providing up to 1A output current. Compact XDFN 8-pin surface mount package. Low quiescent current of 140μA for energy-efficient operations. Operating voltage range from 1.8V minimum to 5.5V maximum input.
Certified to automotive standard AEC-Q100 for enhanced reliability. RoHS compliant with lead-free construction. Supports high maximum operating temperature of 150°C for robust performance. Positive polarity voltage regulation.
This voltage regulator is widely applicable in power management circuits within industrial, automotive, communication, and consumer electronic devices that require stable and efficient low-noise power supply.
Explore the full range of semiconductor products and Voltage Regulators at EnvMart for your next design or manufacturing project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers up to 1 ampere of output current.
It operates with an input voltage range from 1.8V to 5.5V.
The quiescent current is 140μA, making it suitable for energy-sensitive applications.
It can operate reliably at temperatures up to 150°C.
The package measures 1.6mm in length, 1.2mm in width, and 0.4mm in height.
Yes, it is compliant with AEC-Q100 automotive standards for enhanced reliability.
It offers positive polarity voltage regulation for stable output.
It is made with Pb-free materials, ensuring RoHS compliance and environmental safety.
This voltage regulator has a pin count of 8.
It is designed for surface mounting, suitable for high-density applications.
It is widely applicable in power management circuits within automotive, industrial, communication, and consumer electronic devices.
It belongs to the NCP186 series of low dropout linear regulators.
