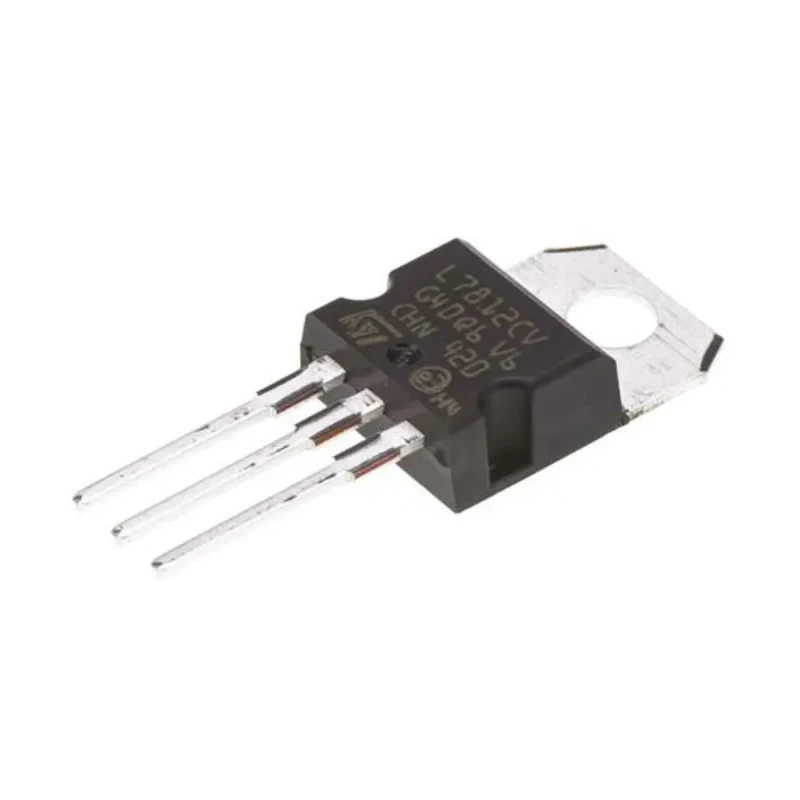

STMicroelectronics 5-Channel Linear Voltage Regulator 12V 1.5A TO-220 3-Pin L7812CV
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 15.75mm |
| Length | 10.4mm |
| Model | L7812CV |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Output type | Fixed |
| Series | L78xx |
| Output Current | 1.5A |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Load Regulation | 240 mV |
| Minimum Operating Temperature | 0°C |
| Polarity | Positive |
| Regulator Type | Linear |
| Number of outputs | 5 |
| Maximum Input Voltage | 40V |
| Output Voltage | 12V |
| Quiescent Current | 8mA |
| Line Regulation | 240 mV |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
Key Features
- Supports up to 1.5 ampere output current for stable power delivery.
- Provides 12 volts fixed output voltage for consistent regulation.
- Includes thermal overload protection to prevent damage from overheating.
- Features output transition safe area (SOA) protection for reliability.
- Mount type is through hole with a 3-pin positive polarity configuration.
- Complies with RoHS standards ensuring environmental safety.
- Operates safely within 0°C to 125°C temperature range.
- Measures 15.75mm height, 10.4mm length, and 4.6mm width in TO-220 package.
Product Description
STMicroelectronics L7812CV is a 5-Channel linear Voltage Regulator designed to provide reliable and precise power management in electronic circuits. It outputs a fixed 12V voltage at a maximum current of 1.5 amperes, using a TO-220 3-pin through-hole package suited for easy mounting in industrial and electronic assemblies.
This linear regulator offers excellent regulation with a line and load regulation of 240 mV, ensuring voltage stability under varying electrical loads. The device incorporates thermal overload protection and output transition safe operating area (SOA) protection, enhancing durability and functional safety in demanding environments.
The L7812CV operates positively polarized and complies with RoHS environmental standards. It supports a wide operating temperature range from 0°C to 125°C, making it suitable for industrial, laboratory, and power management applications requiring dependable voltage regulation.
Its compact dimensions of 15.75 mm height, 10.4 mm length, and 4.6 mm width make it a practical solution for compact and space-conscious circuit designs. The regulator's maximum input voltage rating of 40V extends flexibility in varied power supply conditions.
This device is ideal for use in power management for electronic components and semiconductors, providing stable power for sensitive circuitry, and is widely applicable in industrial automation, manufacturing equipment, and commercial electronics.
Supports up to 1.5 ampere output current for stable power delivery. Provides fixed 12 volts output voltage for efficient voltage regulation. Includes thermal overload protection to safeguard device operation. Equipped with output transition SOA protection for reliable performance.
Through hole mount type with 3-pin positive polarity configuration. RoHS compliant ensuring environmentally friendly manufacturing. Wide operating temperature range of 0°C to 125°C for industrial use. Compact TO-220 package dimensions (15.75mm x 10.4mm x 4.6mm).
Maintains line and load regulation within 240 mV for precision. Explore more products like the STMicroelectronics L7812CV in our Power Management ICs category at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a fixed output voltage of 12 volts.
It supports up to 1.5 amperes of output current for stable power delivery.
The maximum input voltage rating for this unit is 40 volts.
It has a height of 15.75 mm, a length of 10.4 mm, and a width of 4.6 mm in a TO-220 package.
This model features a through-hole mount type with a 3-pin positive polarity configuration.
It operates safely within a temperature range of 0°C to 125°C.
This linear voltage regulator includes thermal overload protection and output transition safe operating area (SOA) protection.
It maintains line and load regulation within 240 mV for precision voltage stability.
This model features 5 outputs, making it versatile for various applications.
Yes, it complies with RoHS standards, ensuring environmentally friendly manufacturing.
The quiescent current for this model is 8 mA.
The country of origin for this product is India.
