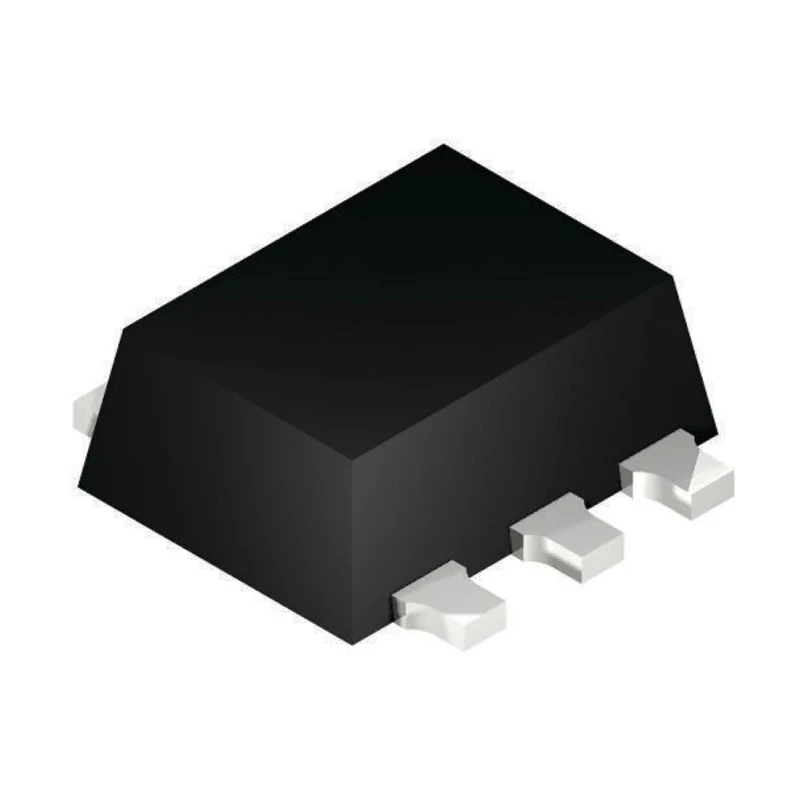

STMicroelectronics 5-Element Uni-Directional TVS Diode, 150 W, 6-Pin SOT-666 ESDA6V1-5P6
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.6mm |
| Length | 1.7mm |
| Model | ESDA6V1-5P6 |
| Width | 1.3mm |
| Mount Type | Surface |
| Series | ESDAxxxP6 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-666 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 6 |
| Number of Elements per Chip | 5 |
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.1V |
| Maximum Reverse Stand-off Voltage Vwm | 3V |
| Peak Pulse Power Dissipation Pppm | 150W |
| Test Current It | 1mA |
| Maximum Reverse Leakage Current | 500nA |
Key Features
- Designed for ESD protection with a common anode diode configuration.
- Minimum breakdown voltage of 6.1 V and maximum reverse stand-off voltage of 3 V.
- Surface mount package measuring 1.7 mm length, 1.3 mm width, and 0.6 mm height.
- Operates reliably from -40°C up to 150°C maximum temperature.
- Provides low leakage current of 500 nA and utilizes 5 elements per chip for effective protection.
- Uni-directional diode type suitable for transient voltage suppression in electronic circuits.
- Test current rating of 1 mA ensures reliable device qualification.
- ESD protection capability makes it suitable for sensitive semiconductor applications.
Product Description
STMicroelectronics ESDA6V1-5P6 is a 5-element uni-directional Transient Voltage Suppressor (TVS) diode designed for efficient electrostatic discharge (ESD) protection in semiconductor and electronic applications. This device is packaged in a compact SOT-666 surface mount package with 6 pins, enabling easy integration into modern printed circuit boards (PCBs) where space savings are critical.
Featuring a common anode diode configuration, the ESDA6V1-5P6 offers a minimum breakdown voltage of 6.1 V and a maximum reverse stand-off voltage of 3 V, ensuring reliable clamping of transient voltage spikes. It is rated for a peak pulse power dissipation of 150 W, which allows it to absorb significant transient energy, protecting sensitive circuit components from damage.
The diode operates over a wide temperature range from -40°C to 150°C, making it suitable for challenging industrial and consumer environments. Its low reverse leakage current of 500 nA contributes to minimal power loss and improved circuit stability. The presence of 5 elements per chip enhances ESD suppression capability, offering robust protection against sudden voltage surges caused by electrostatic events.
This device is ideal for a wide range of applications including industrial automation systems, telecommunications, consumer electronics, and other semiconductor protection needs. It helps improve system reliability by reducing failure rates due to ESD and transient voltage events.
ESD protection with uni-directional diode configuration. Compact SOT-666 surface mount package with 6 pins. 150 W peak pulse power dissipation capability. Voltage ratings include 6.1 V breakdown and 3 V stand-off. Temperature range: -40°C to 150°C for reliable operation.
Low reverse leakage current of 500 nA for energy efficiency. 5 elements per chip for enhanced transient voltage suppression. Test current rating of 1 mA for device validation.
Choose the STMicroelectronics ESDA6V1-5P6 to ensure a reliable and compact solution for protecting electronic circuits and semiconductor components against transient voltage and ESD events. This product is an excellent choice for electronic design engineers seeking high-performance protection devices suitable for harsh operating conditions.
