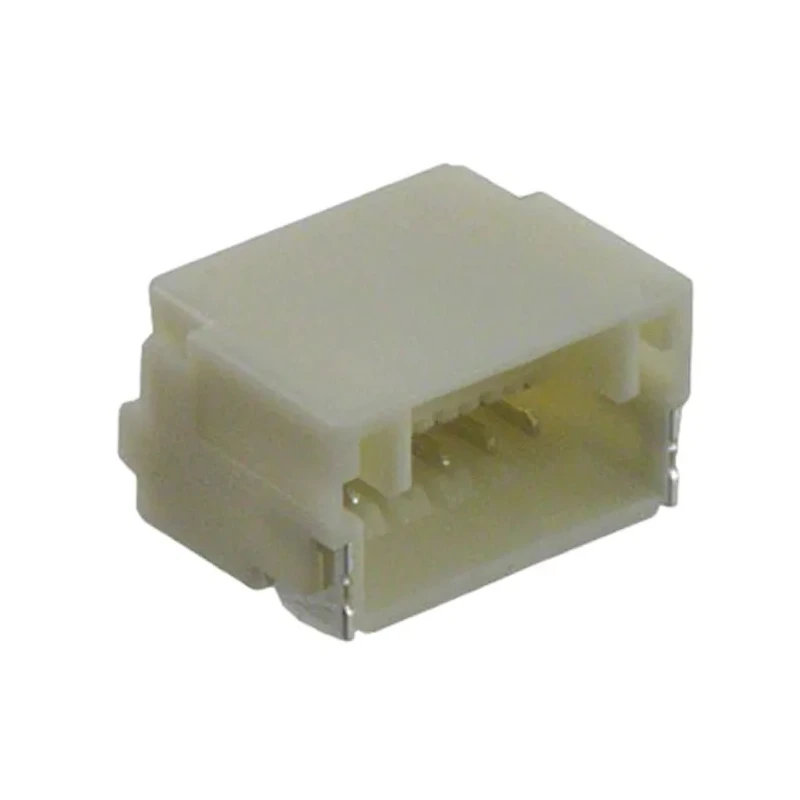

JST NSH Series Right Angle Surface PCB Header 6 Contact 1 mm Pitch 1 Row Shrouded SM06B-NSHSS-TB(LF)(SN)

JST SM06B-NSHSS-TB(LF)(SN) is a right angle surface PCB header from the NSH series designed for wire-to-board connections. It features 6 contacts arranged in a single row with a 1 mm pitch and a shrouded housing manufactured from Polybutylene Terephthalate. This header is optimized for compact PCB designs requiring reliable electrical connection and mechanical durability.

Engineered to operate safely within voltage ratings up to 50V and a current rating of 1A, this connector is suitable for various industrial, commercial, and electronic component applications. The male contacts are made of copper alloy plated with tin for excellent conductivity and corrosion resistance. It supports a wide operating temperature range from -25°C to 85°C, ensuring stable performance in diverse environments.

The JST NSH series includes a latch locking mechanism that provides a secure connection with an audible click upon mating with the corresponding socket. The low insertion force design, facilitated by a specially constructed spring, reduces assembly fatigue and enhances production efficiency.

This PCB header uses a surface mount type with solder termination ideal for SMT processes. The right angle orientation assists in space-saving PCB layouts while maintaining connection integrity. The product is manufactured in Japan, ensuring high standards of precision and quality.

The 6-contact configuration allows for multiple wire connections in compact assemblies. The shrouded housing design helps prevent misalignment and protects the contacts. Its robust construction makes it suitable for electronic components in industrial and commercial equipment.

The compact 1 mm pitch supports high-density PCB designs. Ideal for applications requiring reliable wire-to-board connections in limited space. Explore the wide selection of PCB connectors available at EnvMart to find complementary components for your electronic design and assembly needs.
