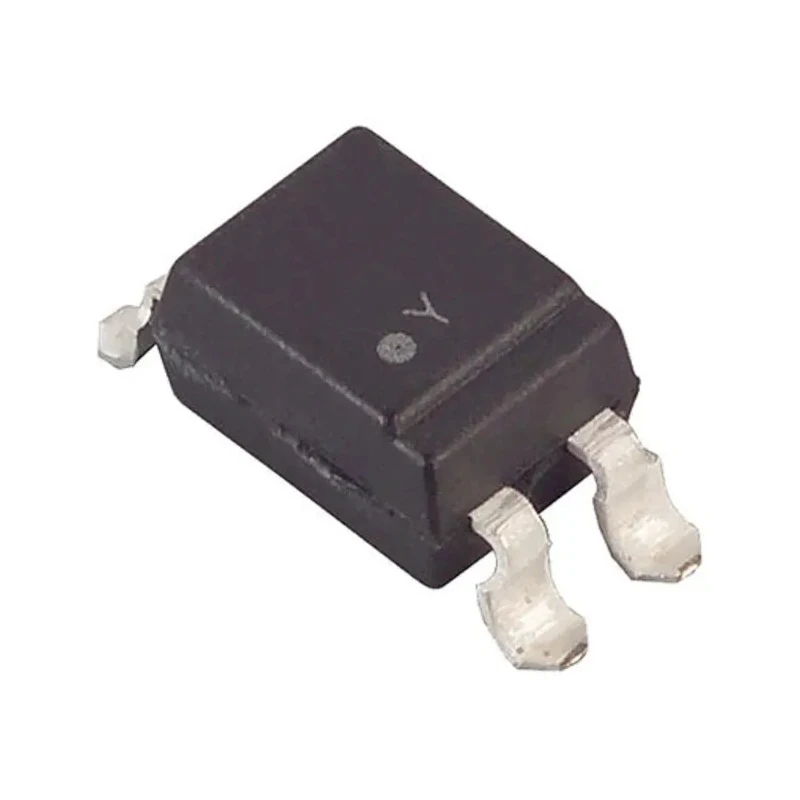

onsemi DC Input Optocoupler Surface Mount 4-Pin MDIP FOD817C3SD
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | FOD817C3SD |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | FOD |
| Maximum Operating Temperature | 110°C |
| Package Type | MDIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Standards/Approvals | IEC, UL, EN |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 18μs |
| Maximum Current Transfer Ratio | 400% |
| Minimum Current Transfer Ratio | 200% |
| Isolation Voltage | 5000V ac |
Key Features
- Offers a maximum forward voltage of 1.4V for efficient operation.
- Supports DC input current with a maximum rating of 50mA.
- Single channel design with transistor output type.
- Isolation voltage up to 5000V ac ensures high safety standards.
- Operating temperature range from -55°C to 110°C.
- Typical rise and fall times of 18 microseconds enable fast switching.
- Current transfer ratio ranges from minimum 200% to maximum 400%.
- Complies with IEC, UL, and EN standards for reliability.
Product Description
onsemi FOD817C3SD DC Input Optocoupler is a surface mount device in 4-pin MDIP package designed for providing electrical isolation between input and output circuits using an optical interface. Engineered for high reliability, this optocoupler features a maximum forward voltage of 1.4V and operates with DC input current up to 50mA.
It offers a single channel transistor output and supports signal isolation with a withstand voltage of 5000V ac, suitable for applications requiring strict electrical isolation to protect sensitive components.
The device operates in a broad temperature range from -55°C to 110°C, catering to industrial and commercial electronics environments. Its typical rise and fall times of 18 microseconds allow for timely signal transitions, making it ideal for switching and signal transmission tasks.
Current transfer ratios between 200% minimum and 400% maximum provide an efficient translation from input LED current to output transistor current, enhancing signal clarity. Manufactured in compliance with IEC, UL, and EN standards, this Optocoupler ensures conformity with international safety and performance benchmarks.
The component is supplied in tape and reel packaging, facilitating automated pick-and-place assembly for improved production efficiency. It is not certified for automotive standards but is well suited for industrial electronics, power control, instrumentation, and communication systems.
Offers a maximum forward voltage of 1.4V for efficient operation. Supports DC input current with a maximum rating of 50mA. Single channel design with transistor output type. Isolation voltage up to 5000V ac ensures high safety standards.
Operating temperature range from -55°C to 110°C. Typical rise and fall times of 18 microseconds enable fast switching. Current transfer ratio ranges from minimum 200% to maximum 400%. Complies with IEC, UL, and EN standards for reliability.
Packaged in tape and reel for automated assembly processes. Suitable for industrial, electronics manufacturing, and power control applications. Explore the onsemi product range and related optoelectronic components on EnvMart for industrial and commercial electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this model is 1.4V, which allows for efficient operation.
It supports a maximum input current of 50mA, suitable for various applications requiring DC input.
The isolation voltage is rated up to 5000V ac, ensuring high safety standards for electrical isolation.
The operating temperature range is from -55°C to 110°C, making it suitable for industrial and commercial environments.
The typical rise and fall times are 18 microseconds, which enable fast switching capabilities.
The current transfer ratio ranges from a minimum of 200% to a maximum of 400%, enhancing signal clarity.
It is supplied in tape and reel packaging, which facilitates automated pick-and-place assembly.
This model features a single channel design with a transistor output type.
It complies with IEC, UL, and EN standards, ensuring reliability and safety in its applications.
The package type is MDIP, designed for surface mounting.
It is suitable for industrial electronics, power control, instrumentation, and communication systems.
The FOD817C3SD is manufactured in India.
