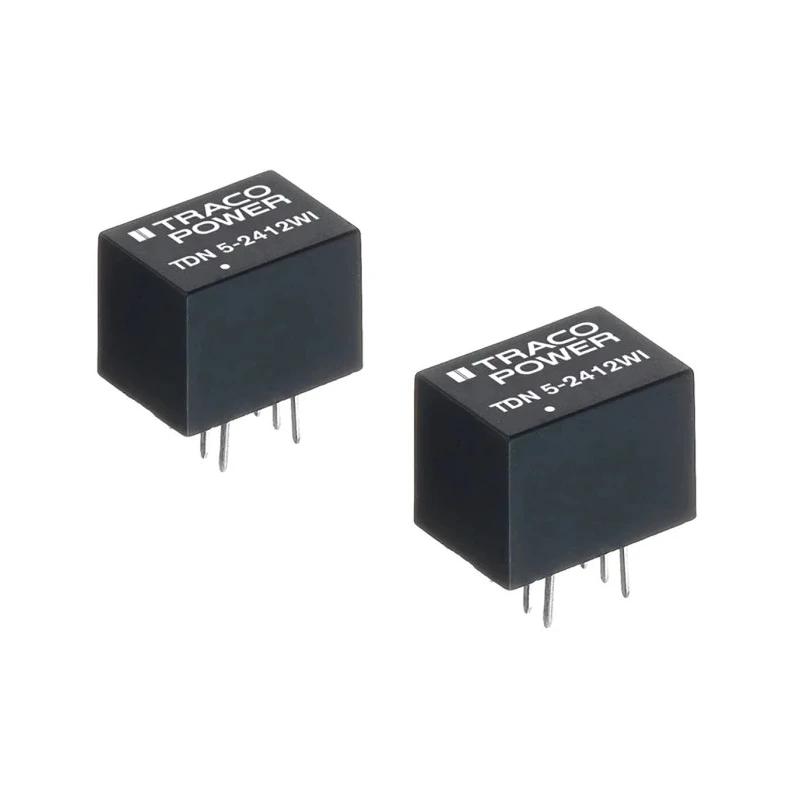

TRACOPOWER TND 5WI Isolated 5W DC/DC Converter Dual Output ±12.12V ±210mA, 9-36V Input, Through Hole DIP Package TDN 5-2422WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TND 5WI DC/DC Converter, 12V dc/ 210 mA |
| Brand | TRACOPOWER |
| Efficiency | 83% |
| Length | 13.2mm |
| Model | TDN 5-2422WI |
| Depth | 10.2mm |
| Width | 9.1mm |
| Mount Type | Through Hole |
| Series | TND 5WI |
| Maximum Operating Temperature | 75°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2960000h |
| Number of outputs | 2 |
| Maximum Output Power | 5W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 210mA |
| Output Voltage Adjustment Range | ±12.12 V dc |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Output Voltage 2 | -12V dc |
| Input Ratio 4 | 1 |
Key Features
- Compact DIP package measuring 13.2 x 9.1 x 10.2 mm for through hole mounting.
- Isolated outputs with 1.5kV DC isolation voltage for enhanced safety.
- Operating temperature range from -40°C to +75°C without derating.
- High efficiency of approximately 83% with short circuit protection included.
- Fully regulated dual outputs ideal for precise electronic applications.
- Mean time between failures (MTBF) of 2,960,000 hours ensuring reliability.
- 6-pin DIP package enables easy integration into PCB designs.
- Suitable for industrial, laboratory, and telecommunications power supply applications.
Product Description
TRACOPOWER TND 5-2422WI is a high-performance isolated DC/DC converter designed to provide dual regulated outputs of ±12.12 V DC at 210 mA from a wide input voltage range of 9 to 36 V DC. This ultra-compact 5W module is housed in a through hole DIP package measuring 13.2 mm in length, 9.1 mm in width, and 10.2 mm in depth, making it ideal for space-constrained industrial and electronic applications.
The converter features full electrical isolation with 1.5 kV DC isolation voltage, ensuring safety and noise reduction in sensitive environments. It offers a stable output voltage with ±12.12 V regulation and short circuit protection, with an input ratio of 4:1 enabling flexible input voltage accommodation. The device operates reliably over a wide industrial temperature range from -40°C to +75°C without power derating, thanks to its robust design and high efficiency up to 83%.
This DC/DC converter is mounted using a 6-pin DIP through hole package, facilitating easy PCB integration and soldering. It has a long mean time between failure (MTBF) rating of 2,960,000 hours, providing exceptional reliability for continuous operation in critical systems. Typical applications include industrial control systems, telecommunications, instrumentation power supplies, and any environment needing isolated, regulated dual output voltages.
Compact and ultra-small DIP package for easy mounting. Wide input voltage range suitable for varied DC sources. Dual ±12.12 V isolated output with load current up to 210 mA. High efficiency minimizes heat generation and power loss.
Reliable protection including short circuit safeguards. Robust operation in harsh temperature environments. The TND 5WI series provides excellent performance in a small footprint, making it a preferred choice for designers requiring compact, dependable isolated DC/DC Converters.
Explore more power supply and converter solutions in the Electronics & Electricals category at EnvMart to meet your industrial and laboratory power conversion needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for the TND 5-2422WI is from 9V to 36V DC.
This model provides dual outputs of ±12.12V DC, with a maximum output current of 210mA.
The efficiency of this DC/DC converter is approximately 83%.
The TND 5-2422WI features an isolation voltage of 1.5kV DC.
It operates reliably within a temperature range of -40°C to +75°C without power derating.
This model is designed for through hole mounting using a 6-pin DIP package.
The DIP package measures 13.2mm in length, 9.1mm in width, and 10.2mm in depth.
The MTBF for the TND 5-2422WI is rated at 2,960,000 hours.
This converter is suitable for industrial control systems, telecommunications, and instrumentation power supplies.
Yes, the TND 5-2422WI includes short circuit protection for enhanced safety.
The input ratio for the TND 5-2422WI is 4:1, allowing for flexible input voltage accommodation.
The TND 5-2422WI is manufactured in Taiwan.
