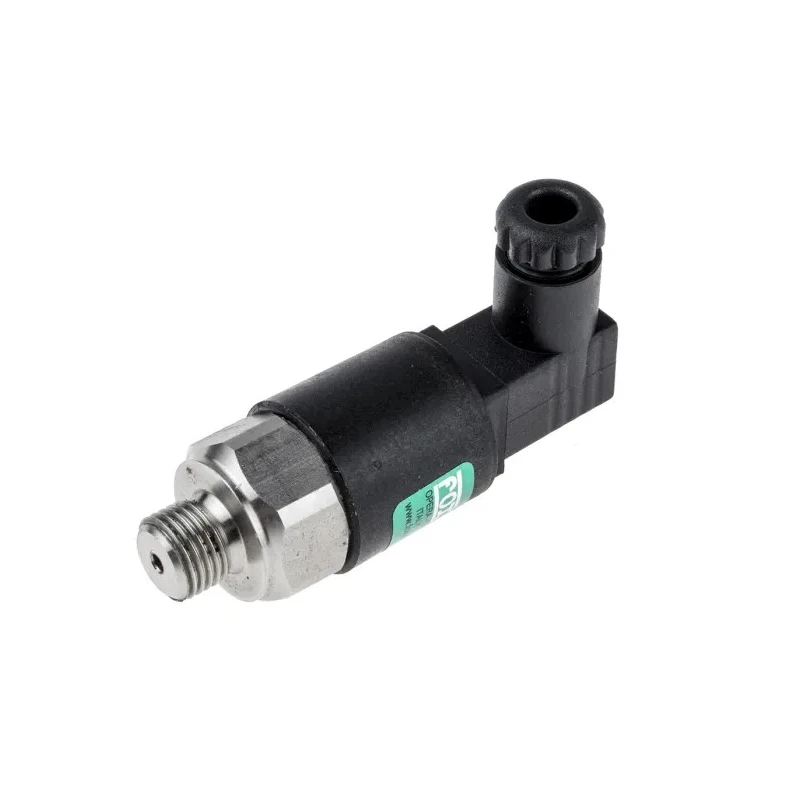

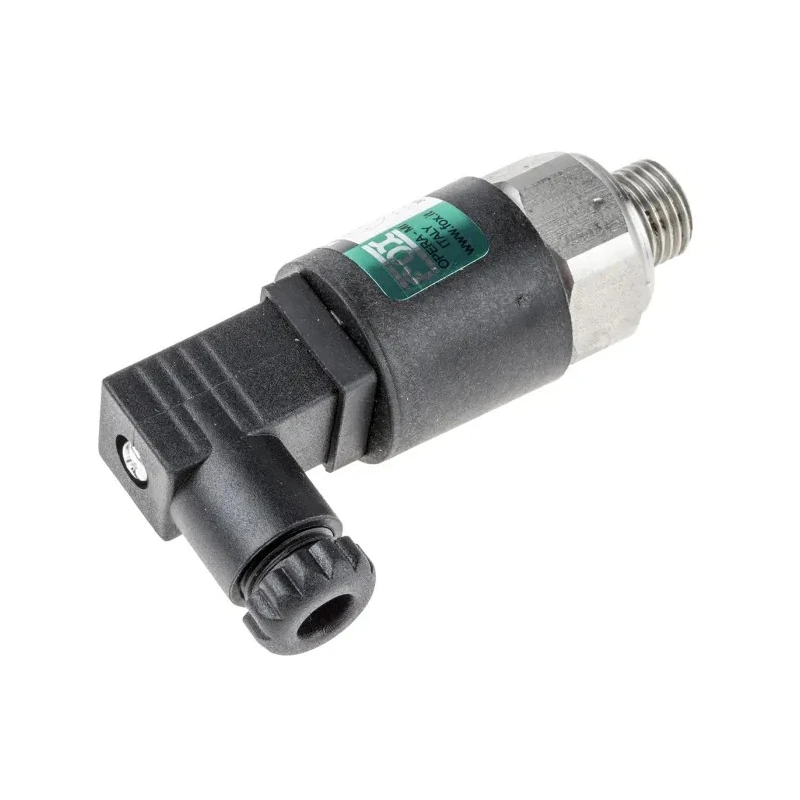

RS PRO Pressure Switch with 1/4 in BSP Male Connection, Operating Range 0.2 to 2.5 Bar, IP65 Rated, 250V AC 880-2299

RS PRO 880-2299 Pressure Switch is an industrial-grade pressure monitoring device featuring a 1/4 inch BSP male connection and an adjustable operating pressure range of 0.2 bar to 2.5 bar. Engineered for fluid power and pneumatic applications, it operates reliably at voltages up to 250 V AC. Its robust sensor housing with an IP65 rating provides protection against dust and water jets, making it suitable for outdoor and industrial use.

This pressure switch contains a microswitch internally that activates when the set pressure threshold is reached. The pressure setting can be easily adjusted by turning a screw located at the rear of the device. A built-in mechanical stop safeguards the switch against damage due to over-pressurization, with recommendations to maintain system pressure below 2.5 bar for optimal safety.

The switch offers versatile operation with both Normally Open (NO) and Normally Closed (NC) contact configurations, allowing it to integrate seamlessly into various control systems. Its 10 percent hysteresis reduces false triggers caused by pressure fluctuations, ensuring stable and reliable signal output.

Operating temperature ranges from -25°C to +85°C, facilitating its use in harsh industrial environments. The switch supports a current rating of 500 mA and uses a G threaded standard for connections. The compact design and IP65 ingress protection make it suitable for fluid media pressure sensing in hydraulic and pneumatic systems.

RS PRO 880-2299 meets key industry standards including ANSI, EN, RoHS, and DIN certifications, ensuring compliance and dependable performance. The absence of a LED indicator reduces power consumption and complexity, maintaining focus on core functionality.

Typical uses include industrial automation, fluid power systems, HVAC monitoring, and other applications requiring robust and precise low-pressure sensing. Operating temperature range from -25°C to +85°C ensures versatile use in varying environments.

Switch supports both Normally Open and Normally Closed contact configurations. Durable IP65-rated sensor housing suitable for outdoor use in all weather conditions. Adjustable pressure setting via rear screw with mechanical stop for over-pressure protection.

Voltage rating of 250 V AC appropriate for industrial applications. Compact design with 1/4 inch BSP male threaded connection for easy system integration. Suitable for a variety of fluid media applications requiring accurate pressure monitoring.

Compliance with ANSI, EN, RoHS, and DIN standards ensures quality and reliability. No LED indicator included, minimizing power consumption and complexity. Explore more Pressure Switch solutions and industrial pneumatic components in EnvMart's extensive catalog to find products matching your precise technical requirements.
