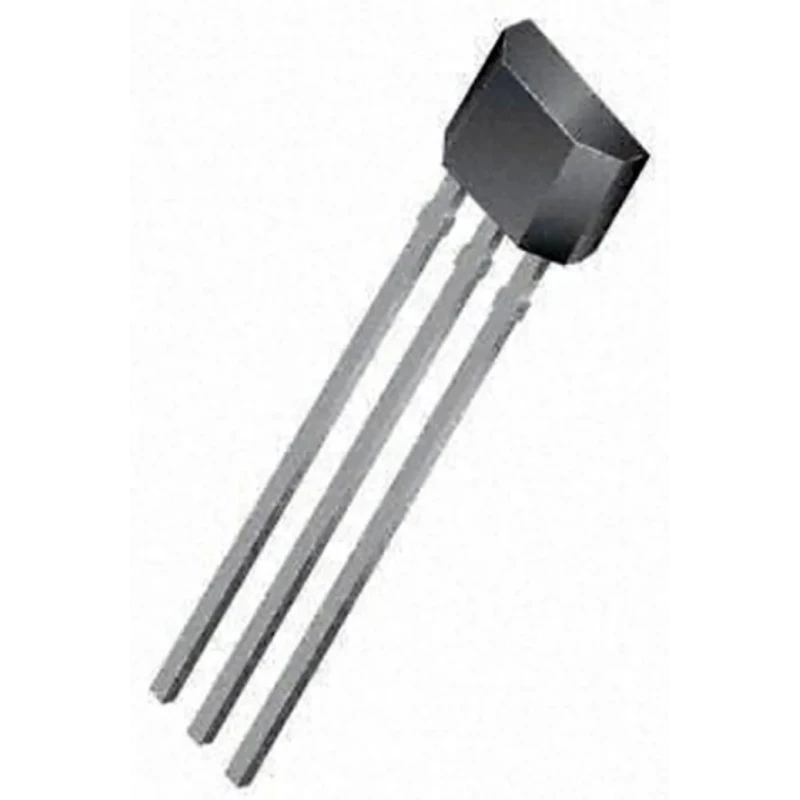

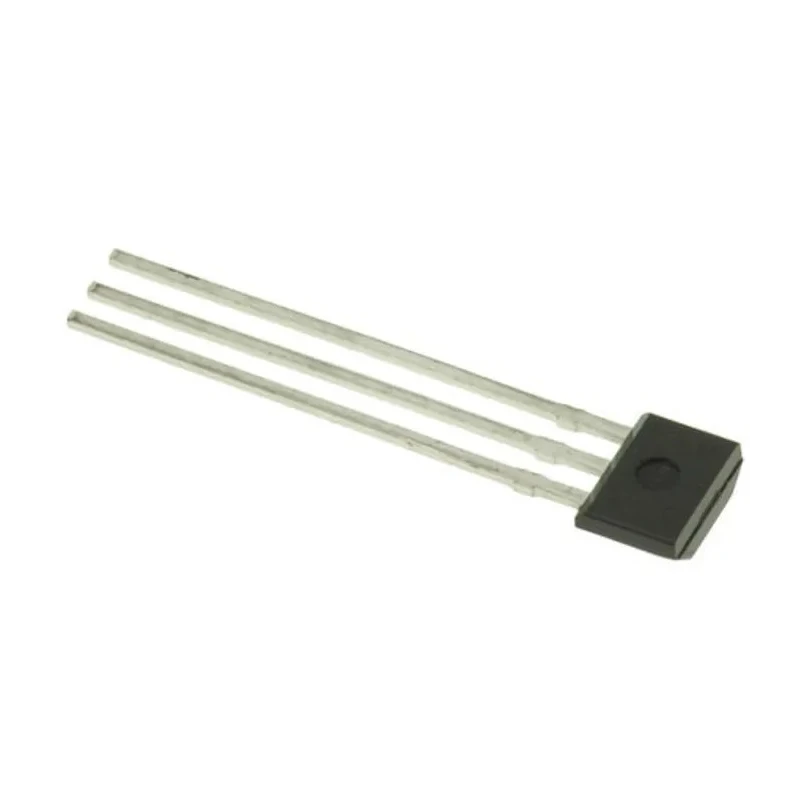

DiodesZetex Through Hole Micropower Omnipolar Hall-Effect Sensor Switch 2.5V 5.5V SIP 3-Pin AH180-PG-B

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex Through Hole Micropower Omnipolar Hall-Effect Sensor Switch 2.5V 5.5V SIP 3-Pin AH180-PG-B

Name: DiodesZetex Through Hole Micropower Omnipolar Hall-Effect Sensor Switch 2.5V 5.5V SIP 3-Pin AH180-PG-B
Brand: DiodesZetex
SKU: 110013
Price: 0.55 USD
Availability: InStock



Category Hall Effect Sensors Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Response time	125μs
Height	3.2mm
Length	4.3mm
Model	AH180-PG-B
Technology	Chopper Stabilised
Sensor Type	Hall Effect Sensors
Width	1.6mm
Mount Type	Through Hole
Series	AH180
Maximum Operating Temperature	85°C
Package Type	SIP
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	3
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.5V
Supply Current	15μA
Magnetic Type	Omnipolar

Key Features

The sensor operates between 2.5V and 5.5V supply voltage for versatile application.
Its omnipolar Hall magnetic sensing offers non-contact switching functionality.
Through hole mounting eases incorporation into various circuit boards.
Compact dimensions of 4.3mm length, 3.2mm height, and 1.6mm width enable space-saving designs.
Low supply current of 15µA ensures energy efficient operation.
Suitable operating temperature range from -40°C to 85°C for reliable performance.
Response time of 125 microseconds supports fast switching applications.
Complies with RoHS standards for environmental and safety requirements.

Product Description

DiodesZetex AH180-PG-B is a through-hole mounted micropower omnipolar Hall-Effect sensor switch designed for precise and reliable magnetic field sensing applications. This sensor IC operates from a minimum supply voltage of 2.5V to a maximum of 5.5V, making it suitable for low voltage electronic circuits.

The device employs chopper stabilized technology for stable performance and low offset voltage. Its omnipolar magnetic sensing allows it to detect both polarities of magnetic fields without mechanical contact, ideal for non-contact switching in industrial, automotive, and consumer electronics.

Featuring a compact SIP package with 3 pins and physical dimensions of 4.3mm length, 3.2mm height, and 1.6mm width, the AH180-PG-B sensor facilitates easy through-hole PCB mounting in compact spaces. The sensor consumes a low supply current of just 15 microamperes, guaranteeing energy efficient operation.

Its operating temperature range from -40°C to 85°C ensures functional reliability in harsh environments. The response time of 125 microseconds enables quick and responsive switching suitable for dynamic magnetic field changes.

Micropower omnipolar Hall-Effect sensor switch for non-contact magnetic sensing. Chopper stabilized to reduce offset voltage and noise. Through-hole SIP package with 3 pins for hardware mounting convenience. Supply voltage range from 2.5V to 5.5V for versatile electronic circuit compatibility.

Low supply current of 15µA for efficient power usage. Operating temperature range from -40°C to 85°C suitable for industrial applications. Compact dimensions (4.3mm x 3.2mm x 1.6mm) ensure space saving. Fast response time of 125 microseconds for rapid magnetic state changes.

RoHS compliant, meeting environmental safety standards.

This Hall Effect sensor switch is widely used in industrial automation, security devices, position sensing, and consumer electronics for contactless switching and magnetic field detection. Its robustness under temperature extremes extends usability in automotive and harsh condition environments. Choose this DiodesZetex AH180-PG-B sensor for reliable performance in low power and compact sensing needs.

Explore a wide selection of sensor ICs, Hall Effect switches, and motion sensor components at EnvMart for your electronics design and manufacturing projects.

Explore more products in our Hall Effect Sensors category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model operates within a supply voltage range of 2.5V to 5.5V, making it suitable for low voltage electronic circuits.

The response time of the AH180-PG-B sensor is 125 microseconds, enabling quick switching for dynamic magnetic field changes.

This sensor has compact dimensions of 4.3mm in length, 3.2mm in height, and 1.6mm in width, facilitating space-saving designs.

The AH180-PG-B features a through-hole mounting type, which allows for easy incorporation into various circuit boards.

The sensor operates reliably within a temperature range of -40°C to 85°C, making it suitable for harsh environments.

It has a low supply current of just 15 microamperes, ensuring energy-efficient operation.

This model employs chopper stabilized technology, which helps reduce offset voltage and noise for stable performance.

The AH180-PG-B offers omnipolar magnetic sensing, allowing it to detect both polarities of magnetic fields without mechanical contact.

This sensor features a 3-pin configuration, which is standard for its SIP package type.

Yes, this sensor complies with RoHS standards, meeting environmental and safety requirements.

It is widely used in industrial automation, security devices, position sensing, and consumer electronics for contactless switching and magnetic field detection.

The country of origin for this sensor is India.
