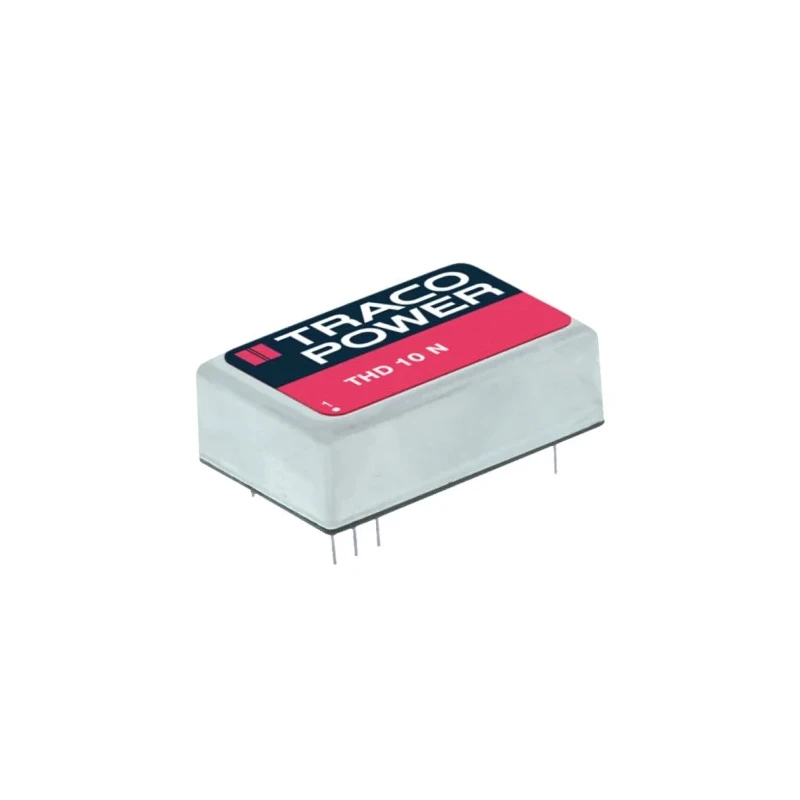

TRACOPOWER Regulated Isolated 10W DC/DC Converter, 12V DC Output, 416mA, 9-18V DC Input, Through Hole DIP-24 THD 10-1222N
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THD 10N DC/DC Converter, 12V dc/ 416 mA |
| Brand | TRACOPOWER |
| Efficiency | 87% |
| Length | 31.8mm |
| Model | THD 10-1222N |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | THD 10N |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP-24 |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 1 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 24 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 416mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Wide 2 | 1 input Voltage range |
Key Features
- The converter features a through-hole DIP-24 package suitable for PCB mounting.
- Built-in internal EMI filter complies with EN 55022 class A standards.
- Operating temperature range extends from -40°C to 85°C for broad environmental tolerance.
- High reliability ensured by full SMD-design with ceramic capacitors and overvoltage protection.
- Output isolation voltage rating of 1.5 kV DC for safety and noise immunity.
- Efficiency reaches up to 87% for energy-efficient performance.
- Typical applications include industrial electronics, instrumentation, data communication systems, and compact battery-operated equipment.
- Designed for long product lifetime with a mean time between failures (MTBF) of 1,000,000 hours.
Product Description
TRACOPOWER THD 10-1222N is a highly reliable regulated isolated DC/DC converter providing 10 watts of power output at 12 volts DC with an output current of 416 mA. This device operates from a wide 9 to 18 volts DC input voltage range using a sturdy through-hole 24-pin DIP package suitable for robust PCB integration in industrial and commercial electronics assemblies.
The converter incorporates a full SMD design exclusively using ceramic capacitors, ensuring long life and stability. Internal EMI filters enable compliance with EN 55022 class A standards, reducing electromagnetic interference for sensitive equipment.
It features an isolation voltage of 1.5 kV DC between input and output, critical for electrical safety and noise immunity. The product performs efficiently with a typical efficiency of 87%, reducing power loss and heat generation.
Operating reliably across a temperature range from -40°C to +85°C, the THD 10-1222N is suitable for harsh environmental conditions. Its high MTBF of 1,000,000 hours reflects its durability and suitability for demanding industrial applications such as instrumentation, data communications, and portable battery-powered equipment where space is limited.
The converter's through-hole DIP-24 package facilitates easy installation and mechanical stability. With its wide input voltage range and built-in protections, the module ensures stable output under variable conditions. Its compact dimensions: length 31.8 mm, width 20.3 mm, depth 10.2 mm, support miniaturized power supply designs.
This DC/DC converter from TRACOPOWER represents a premium solution for integrated power supply conversion, providing clean, isolated, and regulated DC power adaptable for a wide range of industrial electronics and embedded systems.
Explore more DC/DC Converters and power supply solutions in our Electronics & Electricals category for enhanced industrial and instrumentation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output power of this model is 10 watts at 12 volts DC with an output current of 416 mA.
It operates within a wide input voltage range of 9 to 18 volts DC.
The efficiency of this converter reaches up to 87%, providing energy-efficient performance.
The isolation voltage rating is 1.5 kV DC, ensuring safety and noise immunity between input and output.
The dimensions are 31.8 mm in length, 20.3 mm in width, and 10.2 mm in depth.
It can operate reliably in temperatures ranging from -40°C to +85°C.
This model features a through-hole DIP-24 package suitable for PCB mounting.
The MTBF is rated at 1,000,000 hours, indicating high reliability.
Typical applications include industrial electronics, instrumentation, data communication systems, and compact battery-operated equipment.
Yes, it has an internal EMI filter that complies with EN 55022 class A standards.
This converter has one output.
The converter features a full SMD design using ceramic capacitors, ensuring stability and longevity.
