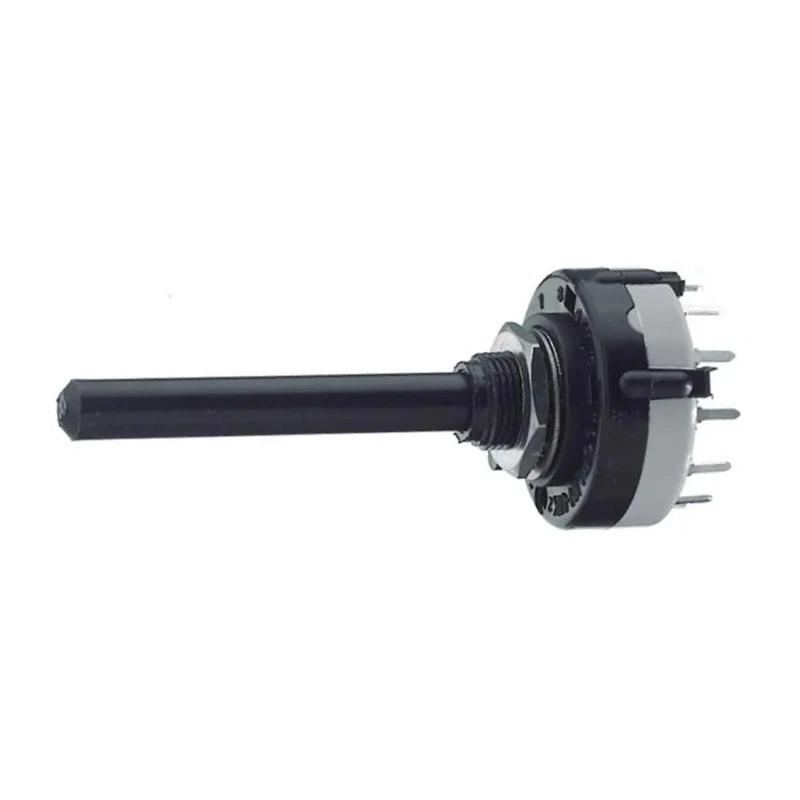

Lorlin 3P Rotary Switch, 150mA Contact Current, Nylon Housing, Solder Terminals CK1046
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Dimensions | 1.5inch long, 0.25inch diameter spindle with a 30mm flat for correct mounting of grub screwed knobs. The bush is 8mm long with a 9.52x32TPI thread |
| Height | 59.1mm |
| Model | CK1046 |
| Depth | 27.5mm |
| Width | 27.5mm |
| Mount Type | Panel |
| Housing Material | Nylon |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 3P |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 3 |
| Standards/Approvals | RoHS |
| Switch Contact Current | 150mA |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 90 ° |
Key Features
- Features a 3-pole contact configuration for versatile switching.
- Rated for a maximum AC voltage of 250V and a maximum DC voltage of 24V.
- Constructed with durable nylon housing material ensuring insulation and longevity.
- Operates reliably within a temperature range of -30°C to 85°C.
- Designed with a 90° angle of throw and a mechanical life of 10,000 cycles.
- Compact body with a diameter of 27.5mm and a height of 59.1mm.
- Includes solder type terminals for secure electrical connections.
- Equipped with a 1.5 inch long spindle with 0.25 inch diameter and 30mm flat for mounting grub screws.
Product Description
Lorlin CK1046 3P Rotary Switch is a high-quality panel mount rotary switch designed for electrical and automation applications. This switch features a 3-pole contact configuration and supports a contact current of 150mA, suitable for control circuits and signal switching.
The switch housing is made of durable nylon material, providing excellent insulation and mechanical protection. It is built to operate reliably over a temperature range from -30°C to 85°C, making it durable in various environments.
Designed with a compact diameter of 27.5mm and a height of 59.1mm, the rotary switch features a mechanical life expectancy of 10,000 cycles, ensuring long-lasting performance. The terminal type is solder, allowing secure and reliable electrical connections.
The actuator includes a 1.5 inch long spindle with a 0.25 inch diameter and a 30mm flat, facilitating mounting of grub screwed knobs. The bush length is 8mm with a 9.52x32TPI thread, enhancing secure installation.
This rotary switch supports a shorting make-before-break (MBB) and non-shorting break-before-make (BBM) contact design, and offers adjustable stops or continuous rotation options, enhancing versatility.
Features a 3-pole contact configuration for versatile switching. Rated for a maximum AC voltage of 250V and a maximum DC voltage of 24V. Constructed with durable nylon housing material ensuring insulation and longevity. Operates reliably within a temperature range of -30°C to 85°C.
Designed with a 90° angle of throw and a mechanical life of 10,000 cycles. Compact body with a diameter of 27.5mm and a height of 59.1mm. Includes solder type terminals for secure electrical connections. Equipped with a 1.5 inch long spindle with 0.25 inch diameter and 30mm flat for mounting grub screws.
Shorting make-before-break and non-shorting break-before-make contact options available.
This switch is ideal for industrial automation, electrical equipment, HVAC controls, and laboratory instruments requiring precise and reliable rotary switching. It is RoHS compliant and manufactured in the United Kingdom, assuring quality and environmental standards.
Explore more Rotary Switches like the Lorlin CK1046 in our electronics & electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum AC voltage rating for this rotary switch is 250V.
This model features a 3-pole contact configuration, allowing for versatile switching applications.
It operates reliably within a temperature range of -30°C to 85°C.
The mechanical life expectancy of this rotary switch is 10,000 cycles.
It includes solder type terminals for secure electrical connections.
The switch has a diameter of 27.5mm and a height of 59.1mm.
The maximum DC voltage rating for this rotary switch is 24V.
It is designed with a 90° angle of throw.
The housing of this switch is constructed from durable nylon material.
This rotary switch is manufactured in the United Kingdom.
It features a spindle that is 1.5 inches long with a diameter of 0.25 inches.
The CK1046 is RoHS compliant, meeting environmental standards.
